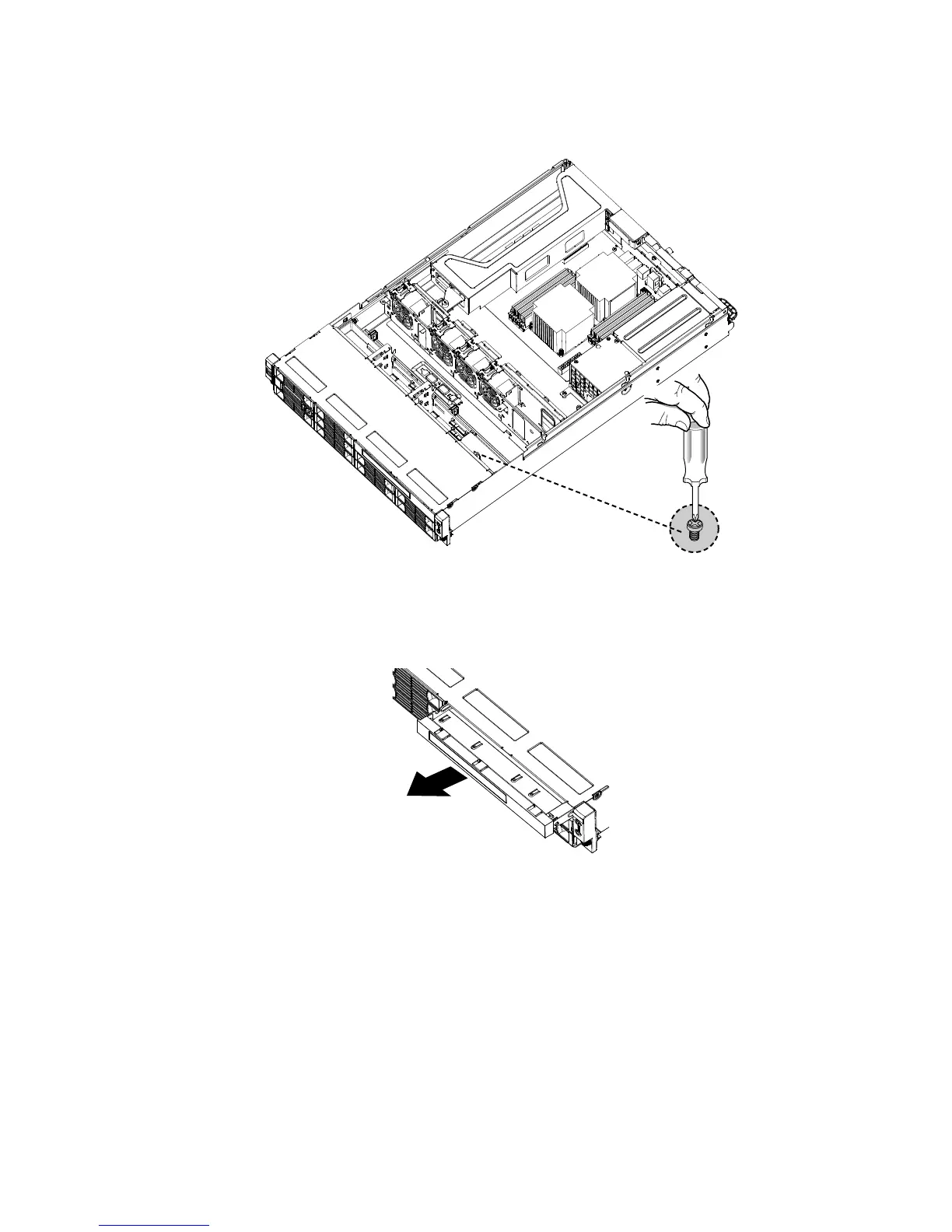

5.
Remove
the
retaining
scr
ew
on
the
rear
br
acket
of
the
optical
drive.
Figure
17.
Removing
the
optical
drive
cage
retaining
screw
6.
Slide
out
the
optical
drive
cage.
Figure
18.
Sliding
out
the
optical
drive
cage
