Thissectionprovidesinstructionsonhowtoinstalltherisercardassembly.Therisercardassemblymight
havePCIcard(s)installedonit.
Toinstalltherisercardassembly,dothefollowing:
Note:Useanydocumentationthatcomeswiththerisercardandfollowthoseinstructionsinadditionto
theinstructionsinthissection.
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Removetheservercover.See“Removingtheservercover”onpage19.
3.Touchthestatic-protectivepackagethatcontainstherisercardtoanyunpaintedmetalsurfaceonthe
server.Then,removetherisercardfromthestatic-protectivepackage.
4.Positiontherisercardassemblyinplacesothatyoucanpresstherisercardstraightdownintothe
PCIcardslotonthesystemboard.See“Locatingpartsonthesystemboard”onpage14.Then,
installthetwoscrewstosecuretherisercardassemblyinplace.Youmightneedascrewdriverto
makesurethatthescrewsarermlytightenedandtherisercardassemblyissecurelyinstalled.Do
notover-tightenthescrews.
Note:Youmightneedtopresstheretaininglatchoftheslottosecuretherisercardintotheslot.

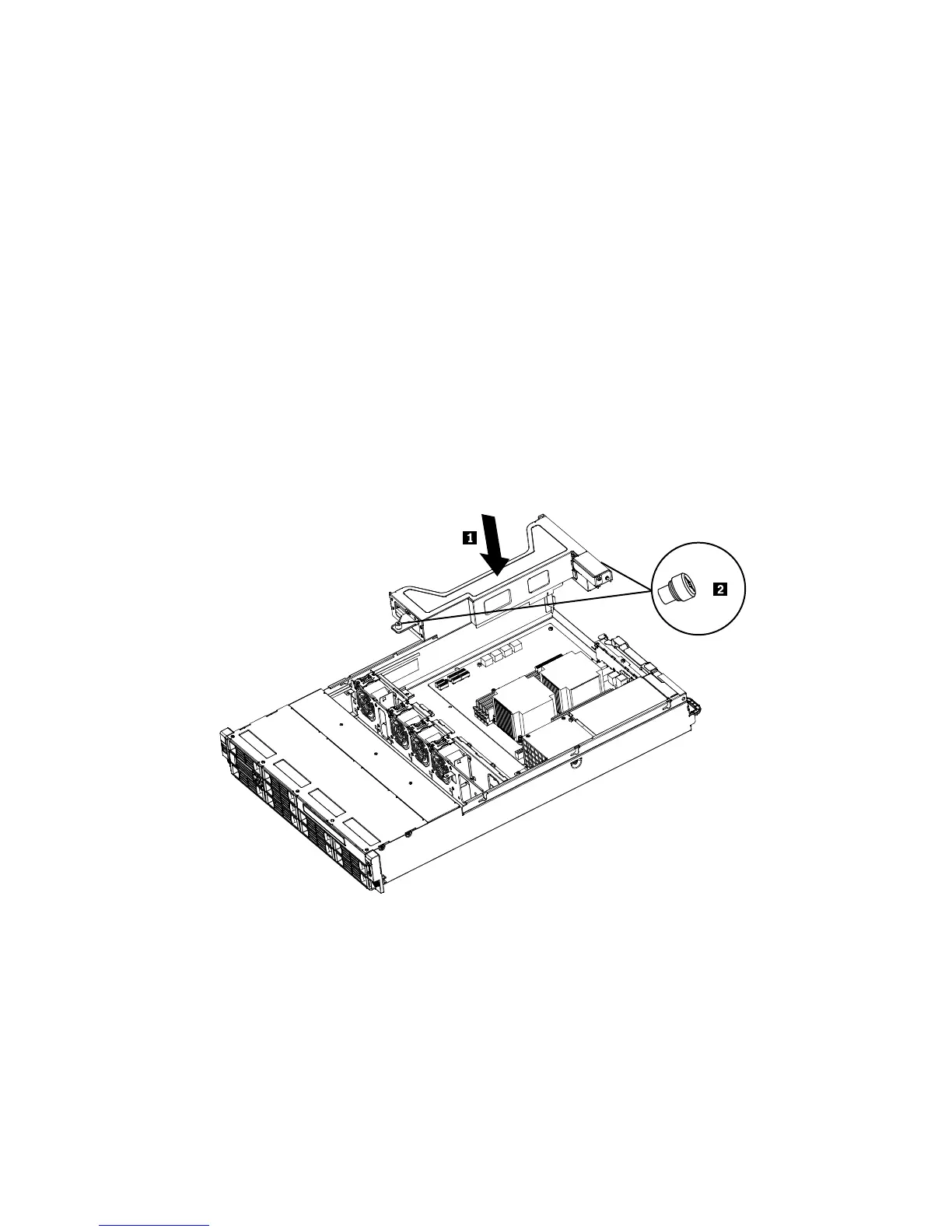

Figure27.Installingtherisercardassembly
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheinstallation,goto“Completingthepartsreplacement”onpage68
.
InstallingorremovingaPCIcard
ThissectionprovidesinstructionsonhowtoinstallorremoveaPCIcard.
