Table 6. Ethernet LEDs
LED State Color Description
RJ-45 linkage/activity (left) On Green 10/100/1000 Mb linked
Blinking Green 10/100/1000 Mb activity
Off Off No LAN connection.
RJ-45 speed (right) On Amber 1000 Mb linked and active
On Green 100 Mb linked and active
Off Off 10 Mb mode or no LAN
connection.
Locating server components

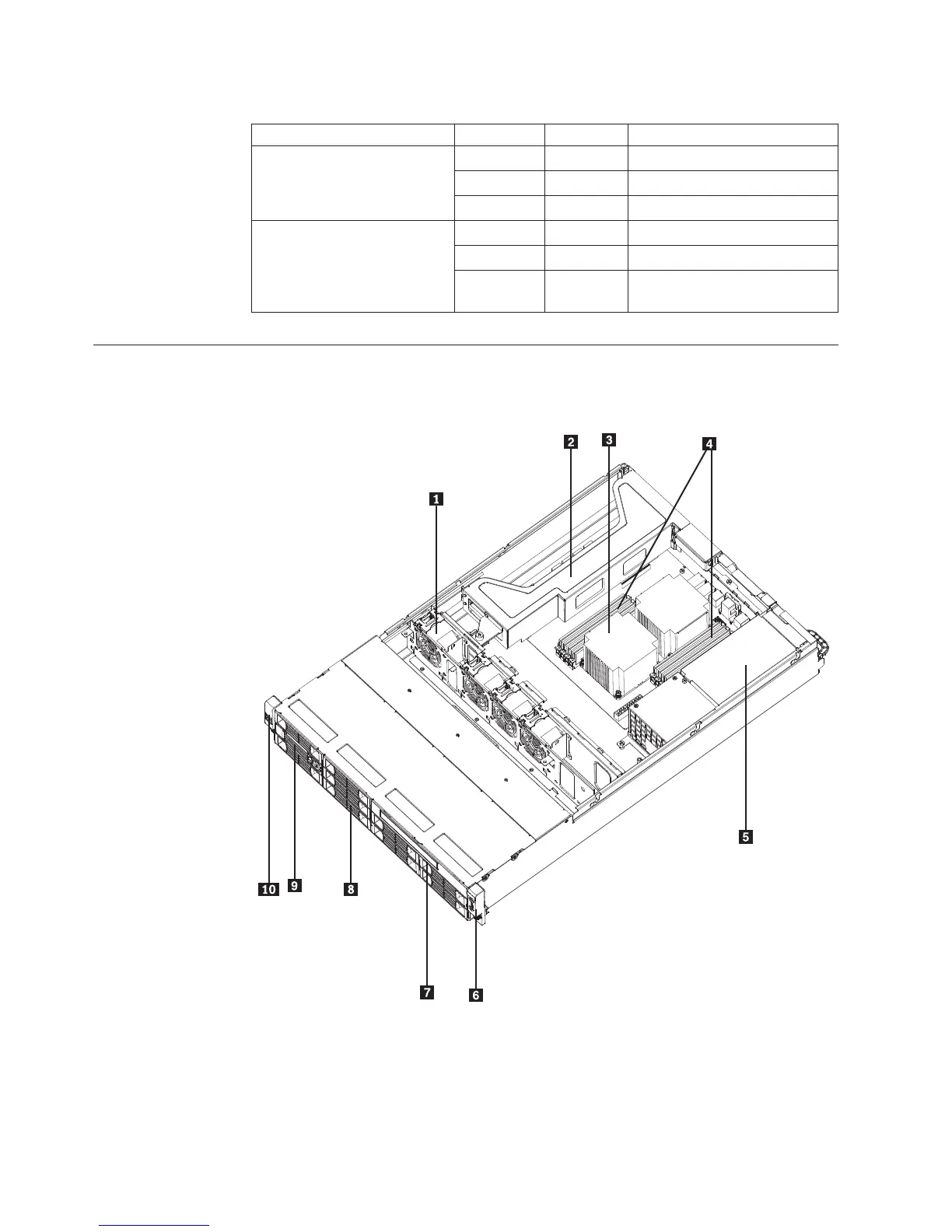

Figure 4 shows the locations of the major components in your server.
1 System fans 6 Front control panel (see “Front control panel” on page 12)
2 Riser card assembly 7 Optical drive (depending on the model)
3 Microprocessor and
heat sink
8 3.5-inch hard disk drive dummy bay
Figure 4. Server component locations
14 Installation and User Guide
