Locating connectors on the backplane

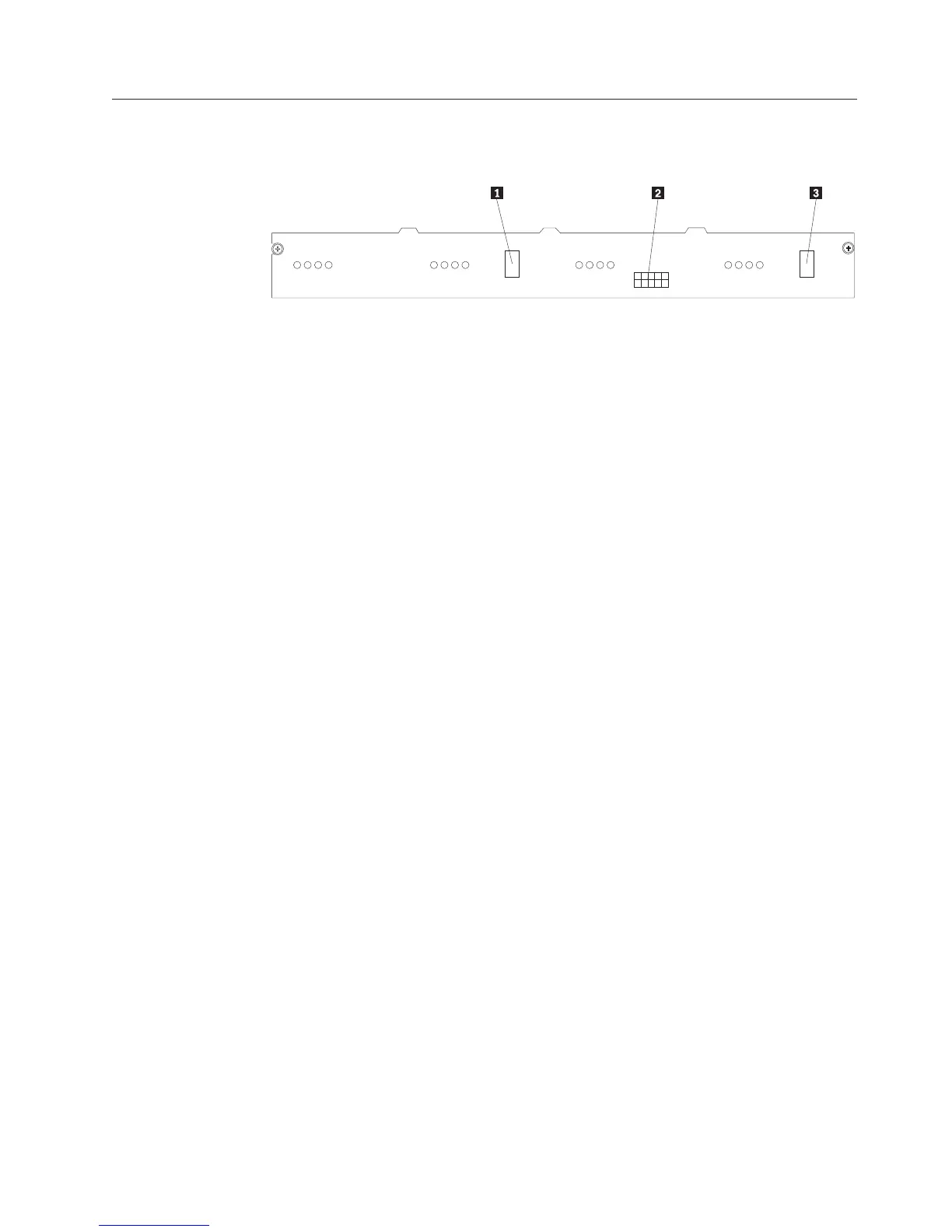

Figure 7 shows the connector locations on the backplane.
1 Mini-SAS signal connector 2
2 Power connector
3 Mini-SAS signal connector 1
Figure 7. Backplane connector locations
Chapter 4. Locating parts, controls, LEDs, and connectors 17
