4. Carefully open the retaining clips on each end of the memory slot and then
grasp the memory module straight up by its edges.
5. If you are instructed to return the failing memory module, follow all packaging
instructions and use any packaging materials that are supplied to you for
shipping.
What to do next:
v To work with another piece of hardware, go to the appropriate section.
v To complete the removal procedure, go to “Completing the parts
replacement” on page 67.
Removing or installing internal drives
This section provides instructions on how to remove or install internal drives for
the server.
See “Specifications” on page 8 for information about the types of internal drives
that the server supports and other important information, and see “Front view” on
page 11 for the locations of the drive bays in the server.
When installing an internal drive, be sure to consider the following information:
v Make sure that you have all the cables and other equipment that is specified in
the documentation that comes with the drive.
v Select the drive bay in which you want to install the drive.
v Check the instructions that come with the drive to see whether you have to set
any switches or jumpers on the drive. If you are installing a SAS device, be sure
to set the SAS ID for that device.
v The EMI integrity and cooling of the server are protected by having all bays,
PCI slots, and PCI Express slots covered or occupied. When you install a drive,
PCI card, or PCI Express card, save the EMC shield and filler panel from the
bay, PCI card slot, or PCI Express card slot in the event that you later remove
the device.
v For a list of the supported hard disk drives for your server, go to
http://www.lenovo.com/thinkserver. On the ThinkServer systems page, click
Products → Options → ThinkServer Hard Drives.

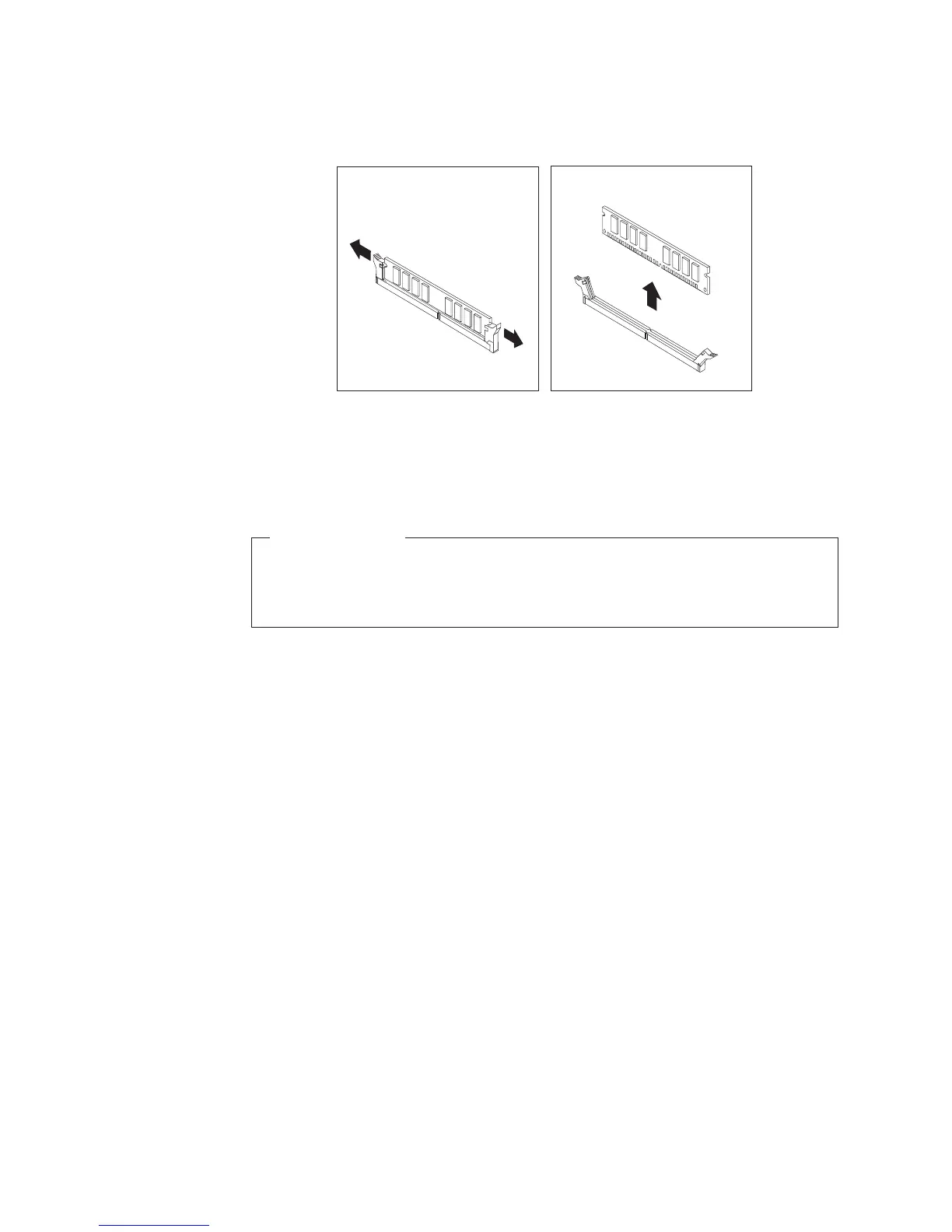

Figure 11. Removing the memory module
26 Installation and User Guide
