Chapter 4. Locating parts, controls, LEDs, and connectors
This chapter provides information to help you locate your server parts, controls,
light-emitting diodes (LEDs), and connectors.
Front view
Figure 1 shows the drives and parts on the front of the server.
1 Left handle of the chassis 4 Optical drive
2 3.5-inch hard disk drive
bay
5 Front control panel (see “Front control panel” on page
12)
3 3.5-inch hard disk drive
dummy bay
Rear view
Figure 2 shows the locations of the connectors and parts on the rear of the server.
1 Power supply 1 6 Serial port
2 Power supply 2 bay
(blank and covered by a bay
bezel)
7 USB connectors (3 and 4)
3 Power cord connector 8 Ethernet connector 1
4 USB connectors (1 and 2) 9 Ethernet connector 2 (share with MGMT)
5 VGA monitor connector 10 PCI expansion slot

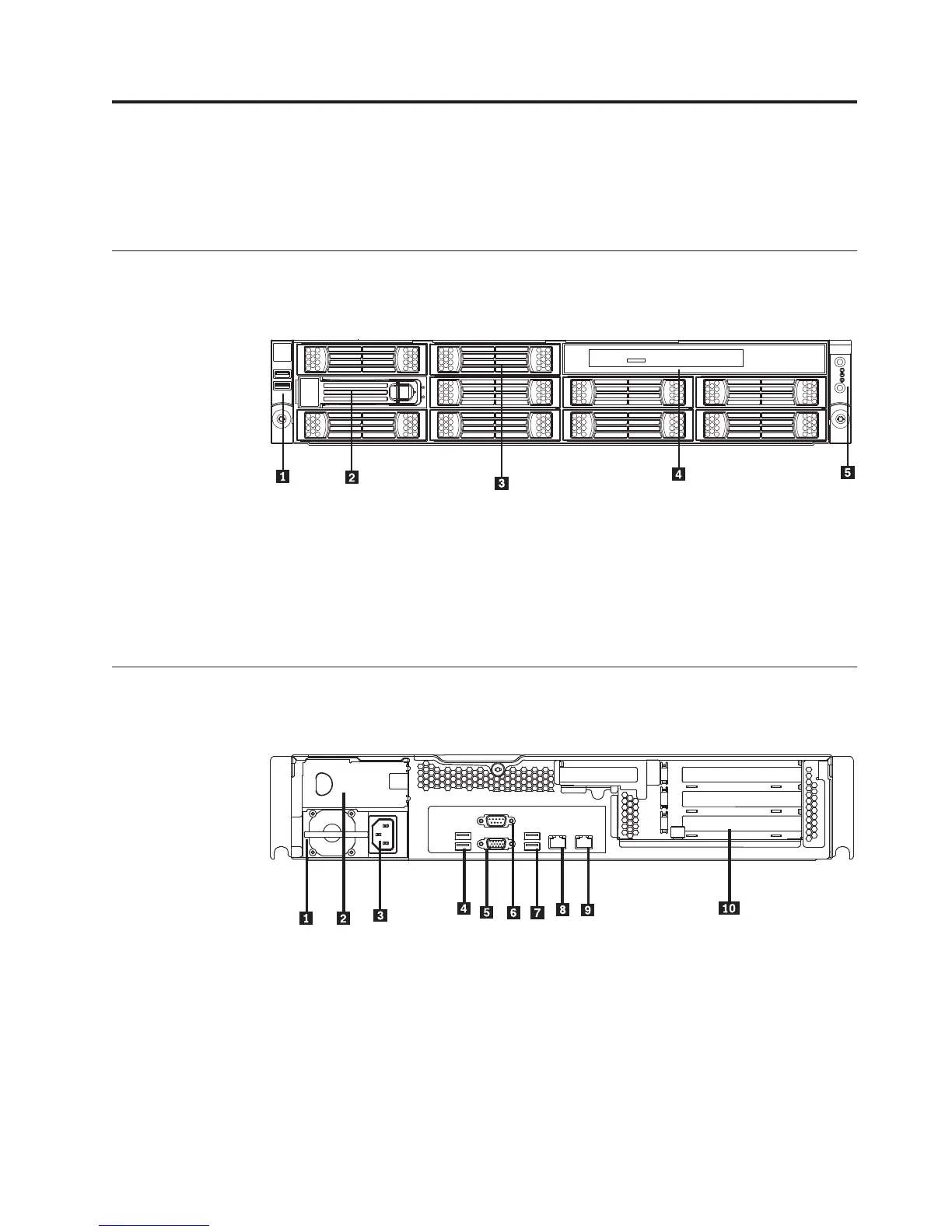

Figure 1. Front view of the server with eight hard disk drives and an optical drive
Figure 2. Rear view of the server
© Copyright Lenovo 2010 11
