2.Iftheserverisinstalledinarackcabinet,removetheserverfromtherackcabinetandplaceitonaflat,
clean,andstatic-protectivesurface.SeetheRackInstallationInstructionsthatcomeswiththeserver.
3.Removetheservercover.See“Removingtheservercover”onpage89.
4.Locatethecoolingshroudandliftitoutoftheserver.
ID
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
PSU
Mem
CPU

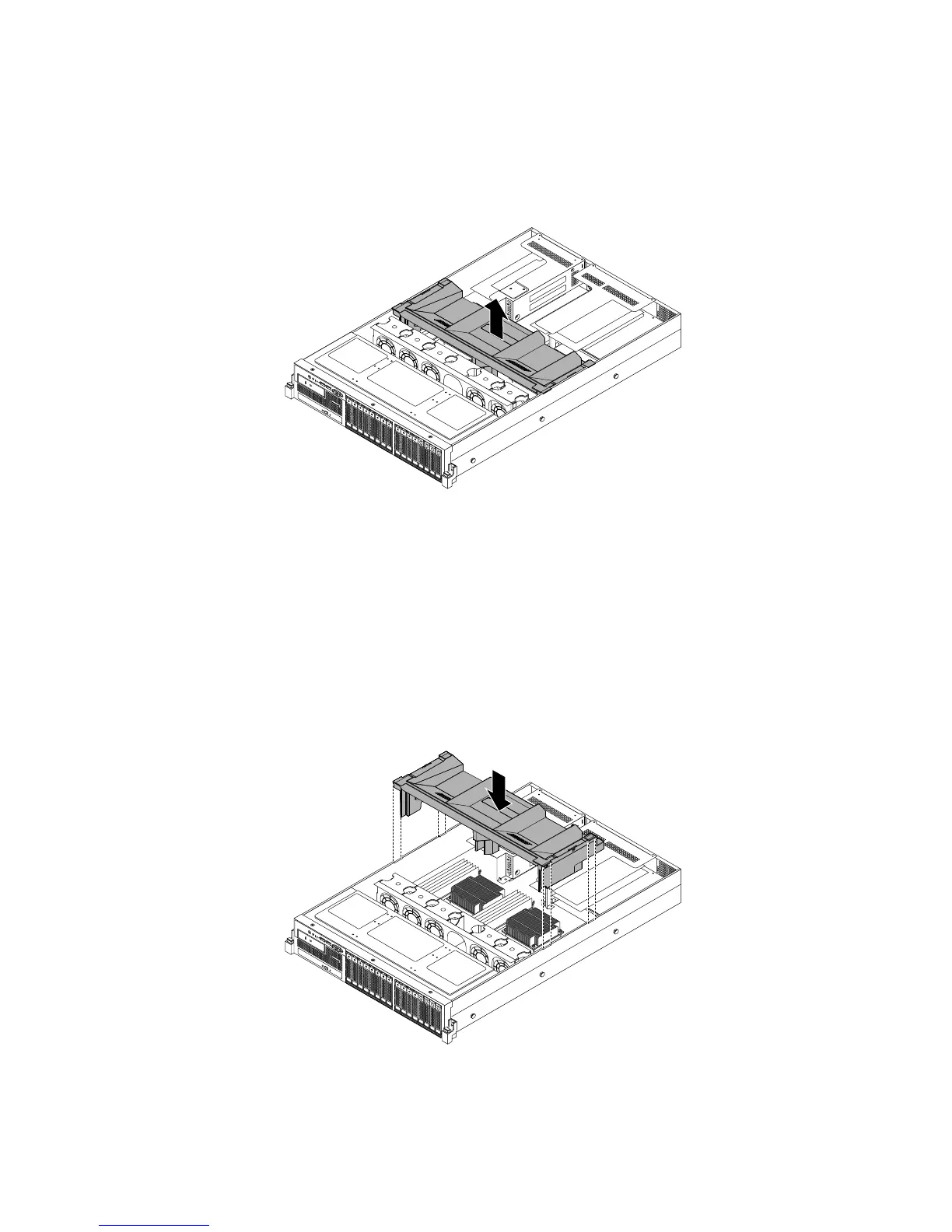

Figure53.Removingthecoolingshroud
5.Toreinstallthecoolingshroud,ensurethatallcomponentshavebeenreassembledcorrectlyandthat
notoolsorloosescrewsareleftinsideyourserver;andalsoensurethatallcablesinsidetheserver
havebeenproperlyroutedsothattheywillnotinterferewithinstallingthecoolingshroud.Notethe
orientationofthecoolingshroudandthenplaceitabovetheserversothatthetabsonbothsidesofthe
coolingshroudarealignedwiththecorrespondingholesorgapsinbothsidesofthechassis.Then,
lowerthecoolingshroudintothechassisuntilitsnapsintoposition.
Note:Ifnecessary,gentlypressthecoolingshroudonbothsidessothatthetabsonthecoolingshroud
completelyengagewithbothsidesofthechassis.
ID
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
PSU
Mem
CPU
Figure54.Installingthecoolingshroud
6.Goto“Completingthepartsreplacement”onpage206.
