10.Positionthenewrisercardassembly2onthechassisandalignitwiththerisercardassembly2sloton
thesystemboardandaligntherearofitwiththecorrespondingrailguidesintherearofthechassis.
Then,carefullypressthenewrisercardassembly2straightdownintothechassisuntilitisfullyseated.
Note:IfthereisanyPCIExpresscardinstalledontherisercardassembly2,carefullyfitthePCIExpress
cardintothechassisandproperlyrouteanycablesfromthecard.

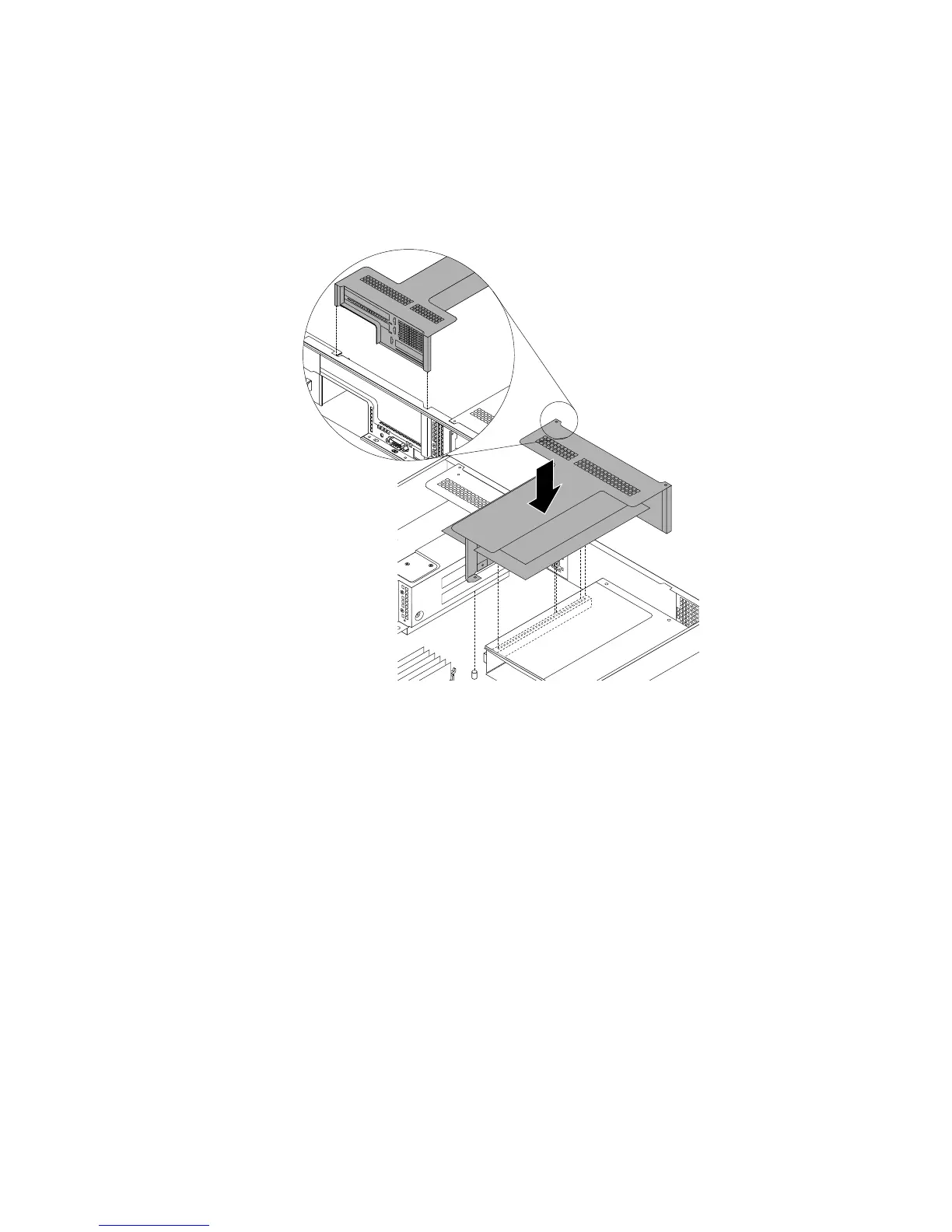

Figure149.Installingtherisercardassembly2
11.Ifyouareinstructedtoreturntheoldrisercardassembly2,followallpackaginginstructionsanduse
anypackagingmaterialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletethereplacement,goto“Completingthepartsreplacement”onpage206
.
Replacingthefrontpanelboard
Thistopicprovidesinstructionsonhowtoreplacethefrontpanelboard.Thistopiccontainsthefollowing
items:
•“Replacingthefrontpanelboardforservermodelswitheight3.5-inchhard-disk-drivebays”onpage188
•“Replacingthefrontpanelboardforservermodelswith2.5-inchhard-disk-drivebays”onpage189
Forservermodelswithtwelve3.5-inchhard-disk-drivebays,thefrontUSBconnectorsareintegratedinto
theleftrackhandle;andthefrontcontrolsandLEDsareintegratedintotherightrackhandle.See“Front
viewofservermodelswithtwelve3.5-inchhard-disk-drivebays”onpage18
fordetailedinformation.
Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
Chapter6.Installing,removing,orreplacinghardware187
