6.TherearetwoPCIExpresscardslotsontherisercardassembly1andtheshorteroneisforinstalling

theexpandercard.Removetheslotbracketfortheshorterslotandstoreitincaseyoulaterremovethe

expandercardandneedthebrackettocovertheplace.

Note:EnsurethatyouinstalltheRAIDcardandconnecttwomini-SAStomini-SASsignalcablestothe

RAIDcardbeforeinstallingtheexpandercard.

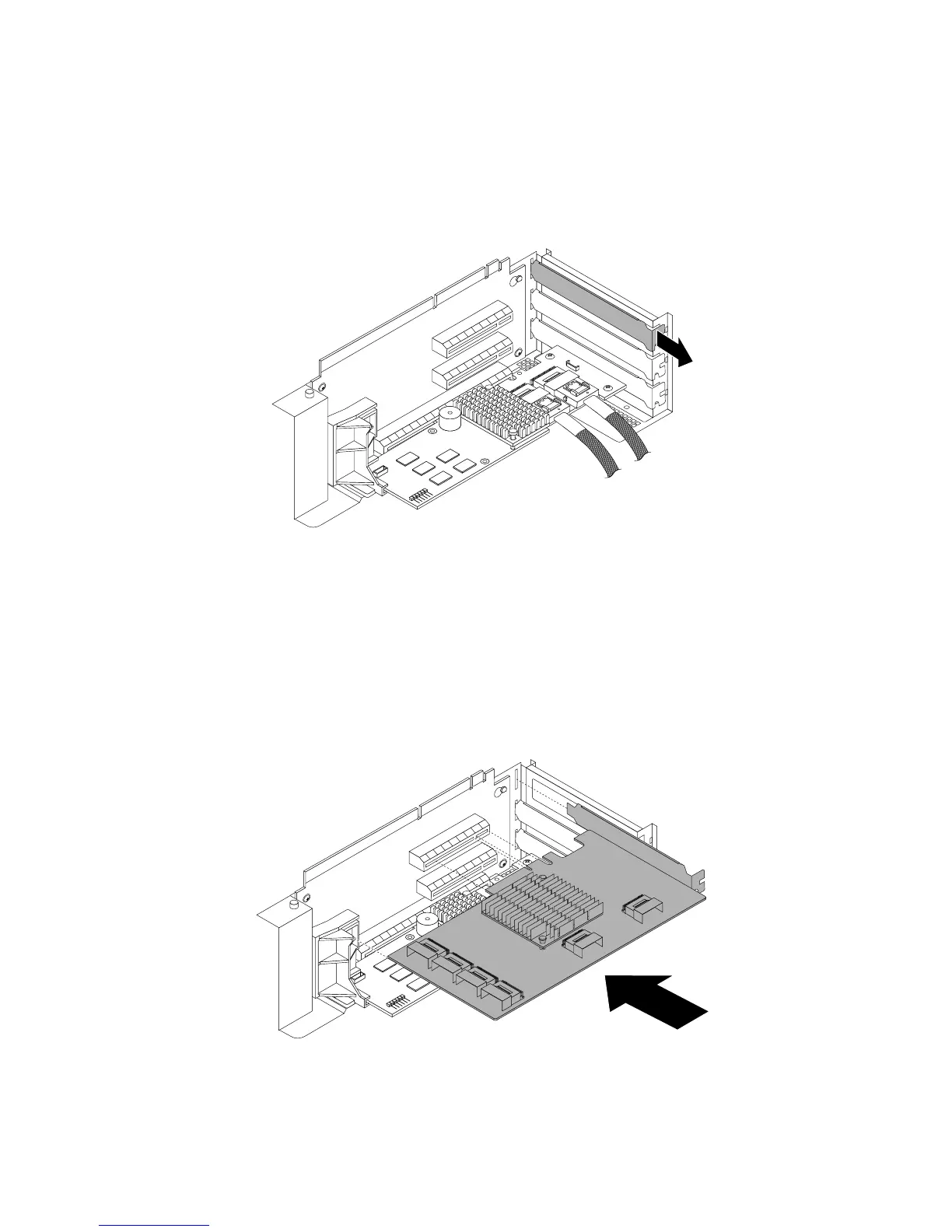

Figure71.RemovingaPCIExpresscardslotbracket

7.Touchthestatic-protectivepackagethatcontainstheexpandercardtoanyunpaintedsurfaceonthe

outsideoftheserver.Then,taketheexpandercardoutofthepackage.

Note:Carefullyhandletheexpandercardbyitsedges.

8.Notethedottedlinesinthefollowingillustrationtoproperlypositiontheexpandercardneartheshorter

PCIExpresscardslotontherisercardassembly1.Then,carefullypresstheexpandercardstraightinto

theslotuntilitissecurelyseatedanditsbracketalsoissecuredbytherisercardassembly1.

Figure72.Installingtheexpandercard

118ThinkServerRD440UserGuideandHardwareMaintenanceManual
