Note:Dependingonthespecifictype,theEthernetcardanditsbracketmightlookdifferentfromthe
followingillustrations.
a.CarefullyremovethescrewsthatsecuretheEthernetcardandthenremovethefull-heightbracket
fromtheEthernetcard.

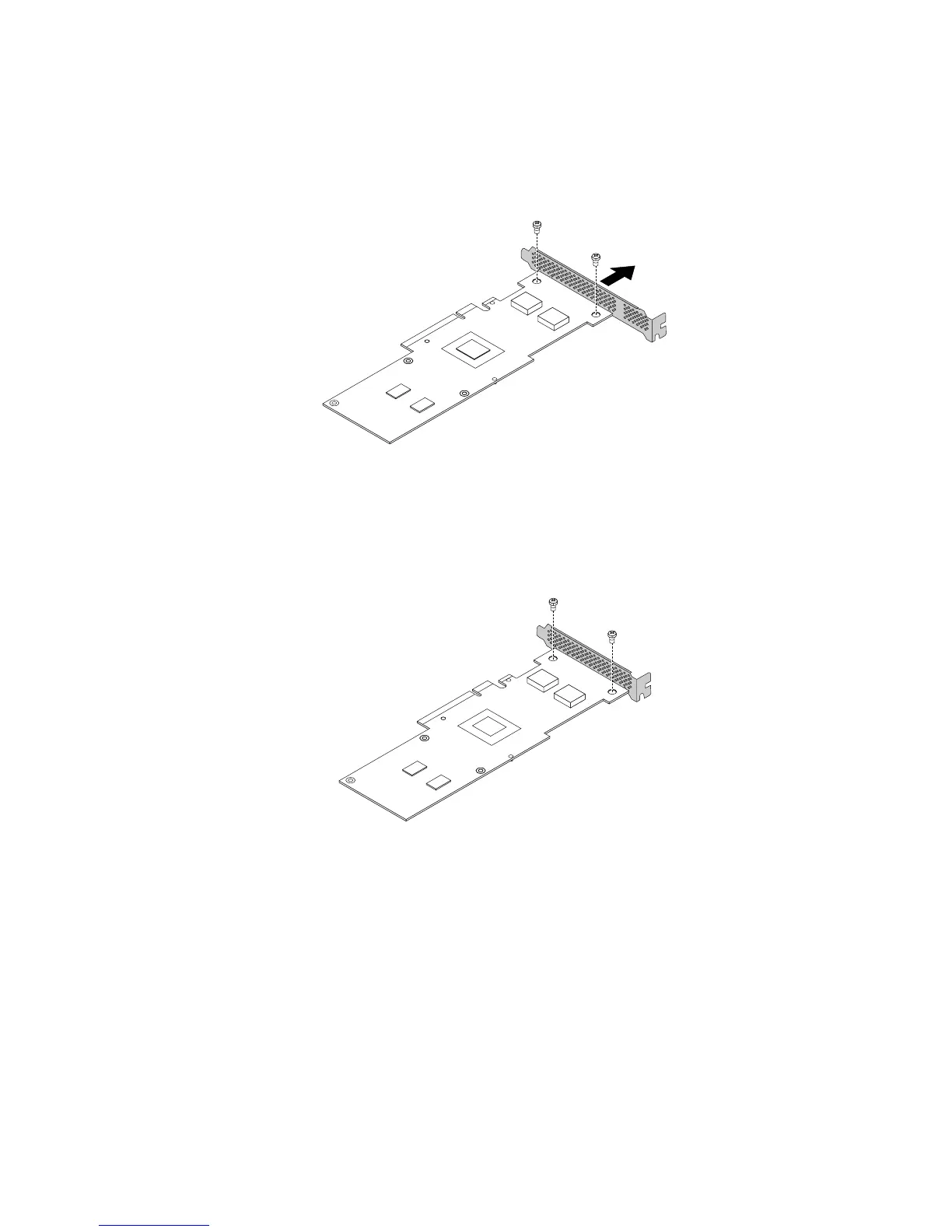

Figure75.Removingthefull-heightbracketfromtheEthernetcard
b.Notetheorientationofthelow-profilebracketandpositionitontheEthernetcardsothatthescrew
holesinthelow-profilebracketarealignedwiththecorrespondingholesintheEthernetcard.Then,
carefullyinstallthescrewstoattachthelow-profilebrackettotheEthernetcardsecurely.
Figure76.Installingthelow-profilebrackettotheEthernetcard
122ThinkServerRD440UserGuideandHardwareMaintenanceManual
