ThistopicprovidesinstructionsonhowtoremoveanEthernetcard.
Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
Notes:
•Dependingonthespecifictype,theEthernetcardmightlookdifferentfromtheillustrationinthistopic.
•UseanydocumentationthatcomeswiththeEthernetcardandfollowthoseinstructionsinadditionto
theinstructionsinthistopic.
ToremoveanEthernetcard,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Iftheserverisinstalledinarackcabinet,removetheserverfromtherackcabinetandplaceitonaflat,
clean,andstatic-protectivesurface.SeetheRackInstallationInstructionsthatcomeswiththeserver.
3.Removetheservercover.See“Removingtheservercover”onpage89.
4.Removetherisercardassembly2andlayitupsidedownonaflat,clean,andstatic-protectivesurface.
See“Replacingtherisercardassembly2”onpage185
.
Note:UsuallyEthernetcardsareinstalledontherisercardassembly2.AnEthernetcardalsomight
beinstalledinanyPCIExpresscardslotthatsupportsit.See“Rearviewoftheserver”onpage29to
identifythePCIExpresscardslotsofyourserver.
5.LocatetheEthernetcardyouwanttoremove.Then,grasptheEthernetcardbyitsedgesandcarefully
pullitoutofthePCIExpresscardslotontherisercardassembly.
Note:TheEthernetcardmightfittightlyintothePCIExpresscardslot.Ifnecessary,alternatemoving
eachsideoftheEthernetcardasmallandequalamountuntilitisremovedfromtheslot.

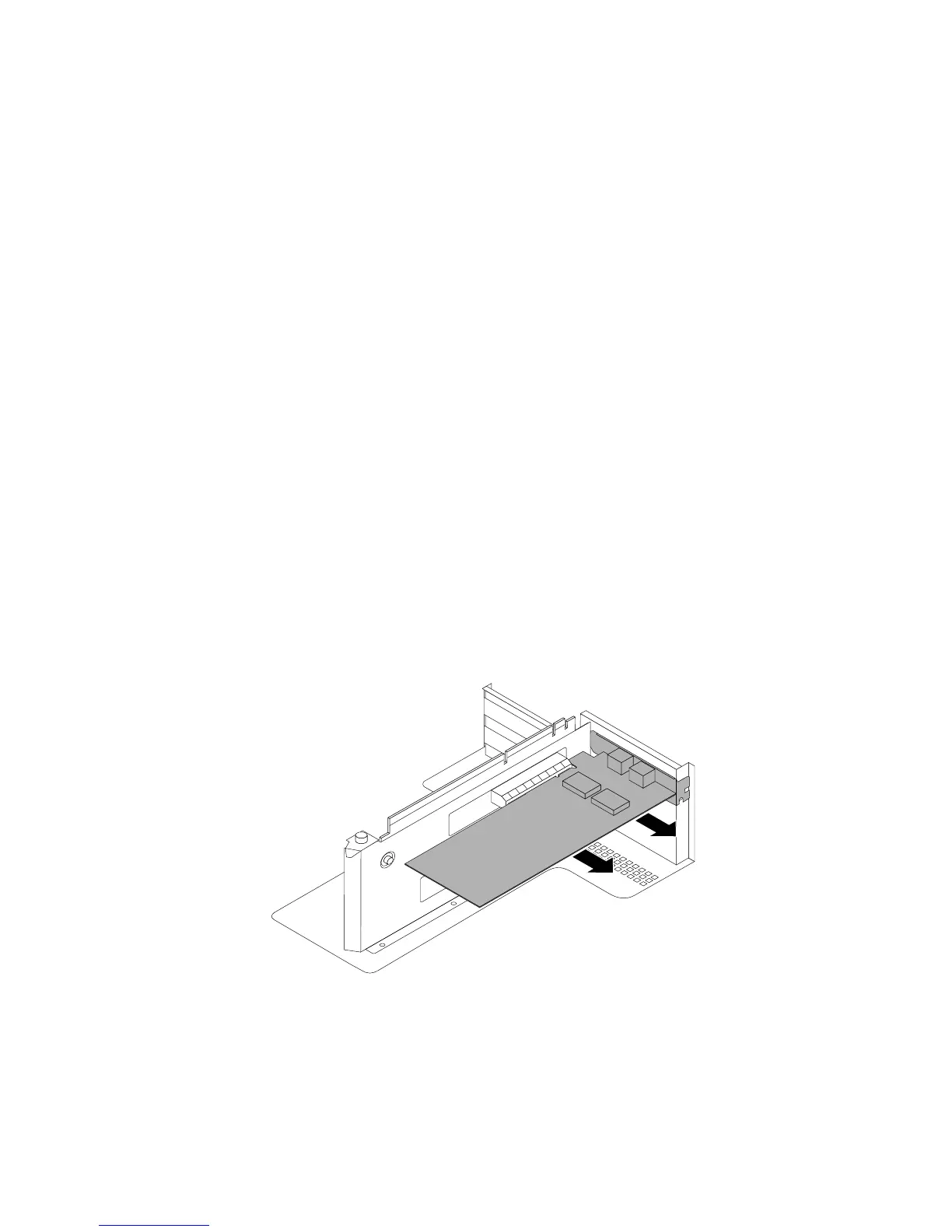

Figure78.RemovinganEthernetcard
6.InstallanewEthernetcardtoreplacetheoldoneorinstallaPCIcardslotbrackettocovertheplace.
See“InstallinganEthernetcard”onpage120.
7.Reinstalltherisercardassembly2.See“Replacingtherisercardassembly2”onpage185.
