8.Gentlypressthetab1andinstallthenewThinkServerRAIDSuperCapacitorModuleintotheholderat
thesametime.
Note:EnsurethatthecableoftheThinkServerRAIDSuperCapacitorModuleisorientedasshown.

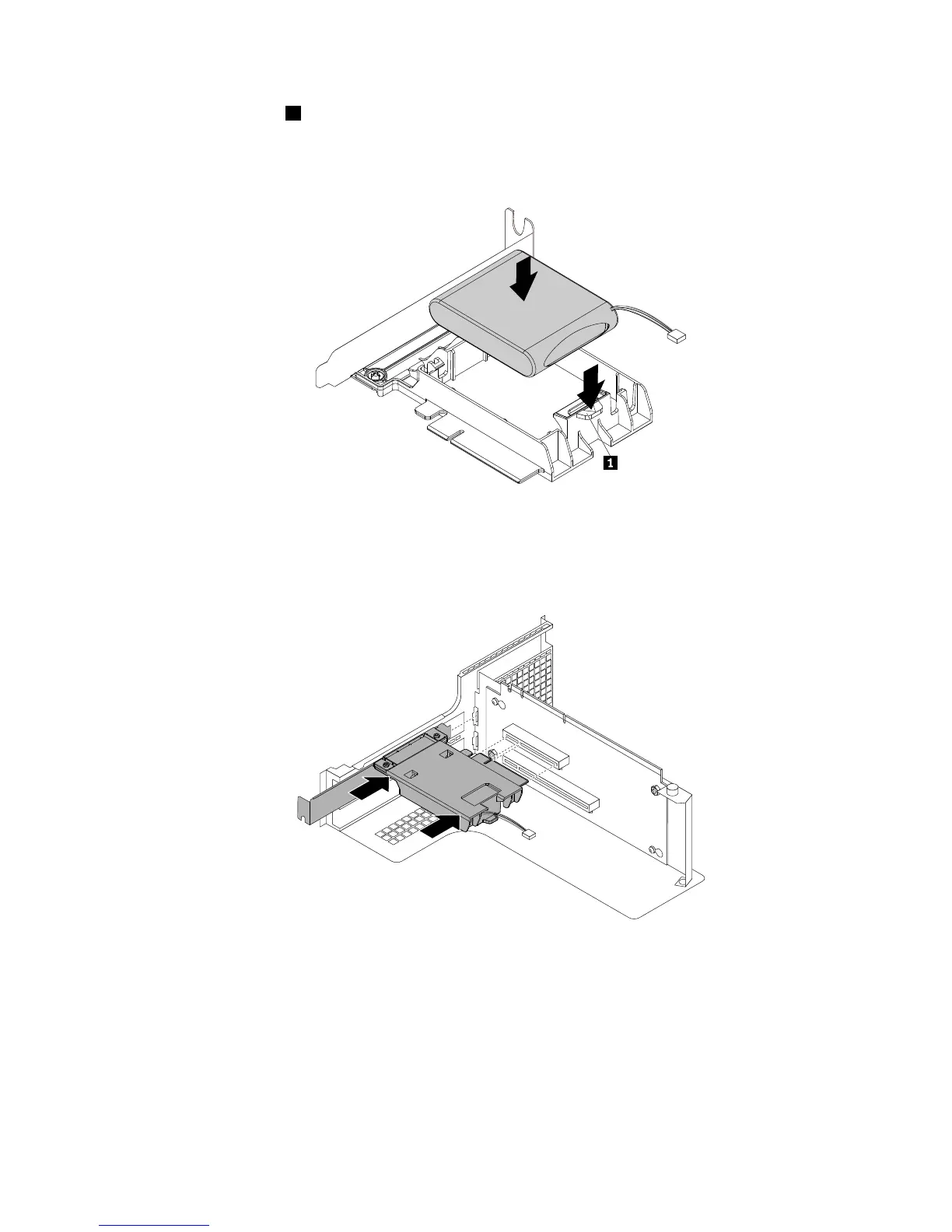

Figure129.InstallingtheThinkServerRAIDSuperCapacitorModuleintotheholder
9.InstalltheholderwiththenewThinkServerRAIDSuperCapacitorModuleintothePCIExpresscard
slot2ontherisercardassembly2.
Figure130.InstallingtheholderwiththeThinkServerRAIDSuperCapacitorModule
Chapter6.Installing,removing,orreplacinghardware171
