5.Ensurethatthecoverlatchisintheopenposition.Placetheservercoverabovethechassissothat
thecoverlatchisalignedwiththecoverlatchslotinthechassis.Then,lowertheservercoveronto
thechassisuntilthecoverlatchisinsertedintoitsslotandbothsidesoftheservercoverengagethe
guidesonbothsidesofthechassis.

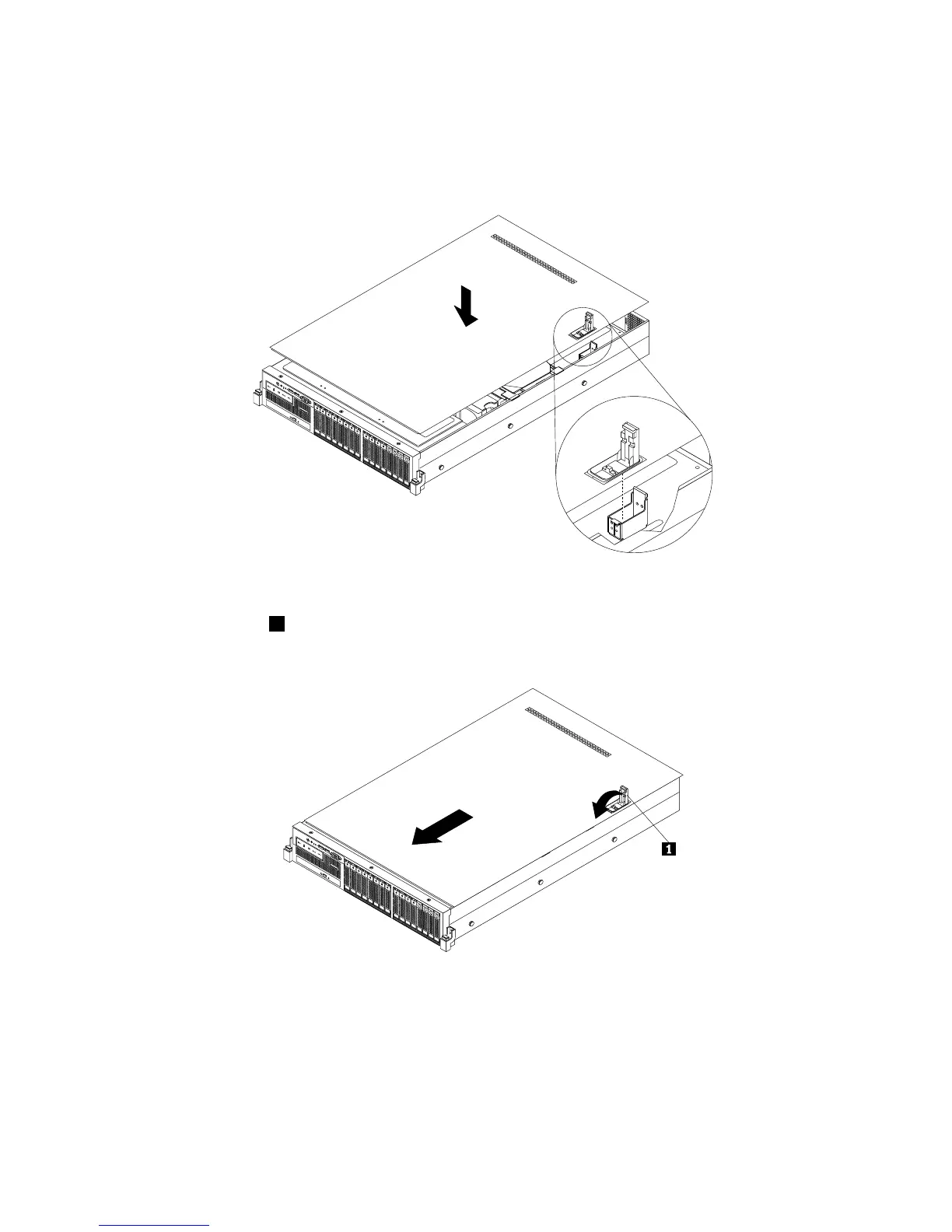

Figure173.Installingtheservercover
6.Pivotthecoverlatch1totheclosedpositionandslidetheservercovertothefrontofthechassisatthe
sametimeuntiltheservercoversnapsintopositionandthecoverlatchisclosed.
Figure174.Closingtheservercovercompletely
7.Installtheserverintoarackcabinetusingtherailkitthatcomeswiththeserver.SeetheRackInstallation
Instructionsthatcomeswiththeserver.
8.Reconnectexternalcablesandpowercordstotheserver.See“Rearviewoftheserver”onpage29to
identifytheconnectorsontherearpaneloftheserver.
208ThinkServerRD440UserGuideandHardwareMaintenanceManual
