3. Install the top cover (see “Install the top cover” on page 128).
4. Reconnect the power cords and any cables that you removed.
5. If the server is installed in a rack, reinstall the server into the rack.
6. Power on the server and any peripheral devices.
Install the LOM adapter
Use this procedure to install the LOM adapter.
Note: When both LOM adapter and ML2 adapter are installed to the server, the system can support up to
two additional network adapters.
Before installing the LOM adapter:
1. Read the safety information and installation guidelines (see
“Safety” on page iii and “Installation
Guidelines” on page 56
).
2. Touch the static-protective package that contains the component to any unpainted metal surface on the
server; then, remove it from the package and place it on a static-protective surface.
3. Make sure the LOM adapter to be installed supports the bandwidth of the network environment.
Following are the requirements:
• 1GbE LOM adapter: maximal bandwidth of network environment is 1GB.
• 10GbE LOM adapter: minimal bandwidth of network environment is 1GB.
4. Attach the mounting bracket with the two screws as illustrated.

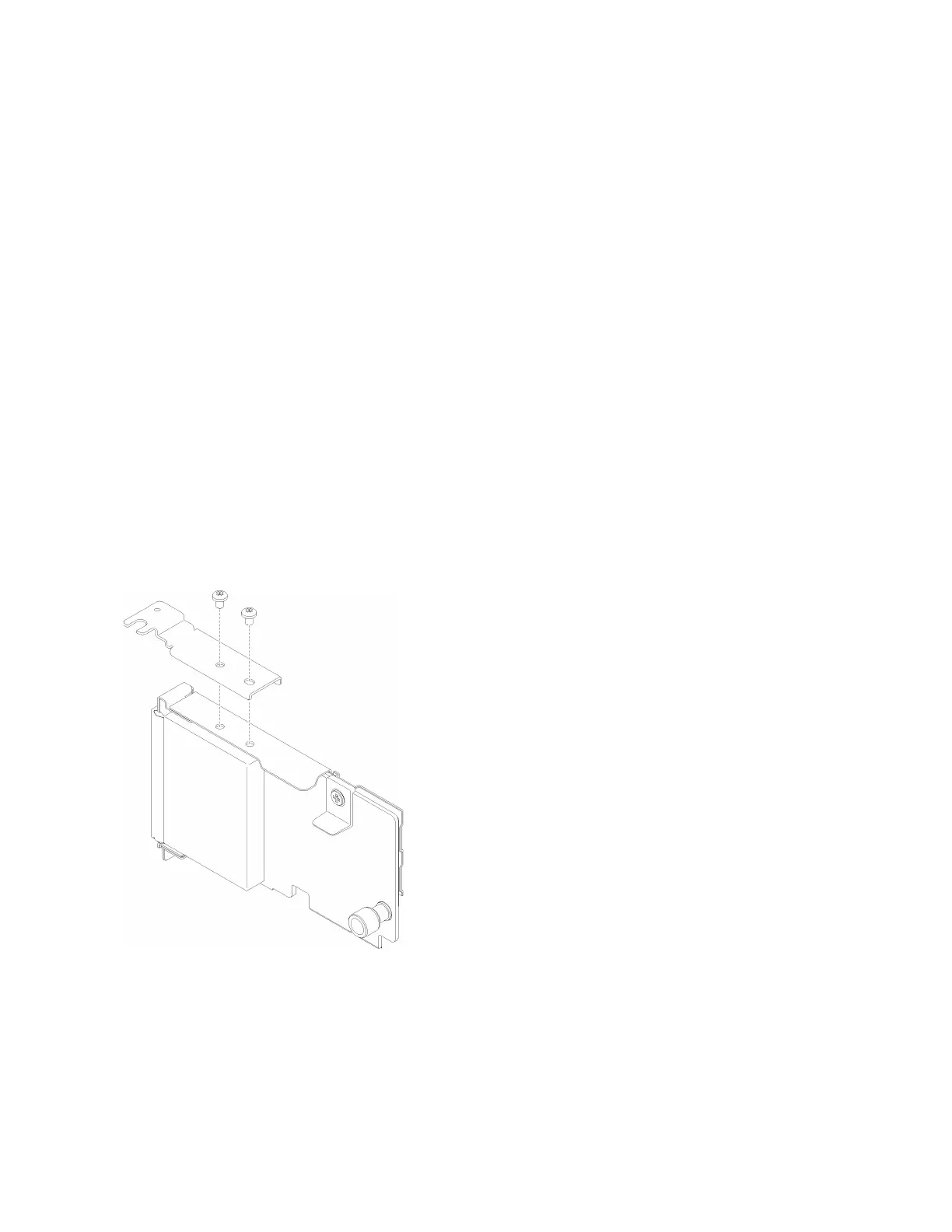

Figure 81. LOM adapter assembly
To install the LOM adapter, complete the following steps:
Watch the procedure
A video of this procedure is available at YouTube:
https://www.youtube.com/watch?v=pIb0bIyfkDY&=
PLYV5R7hVcs-Ak9fT8QAx8fLbEivizjRtp
.
