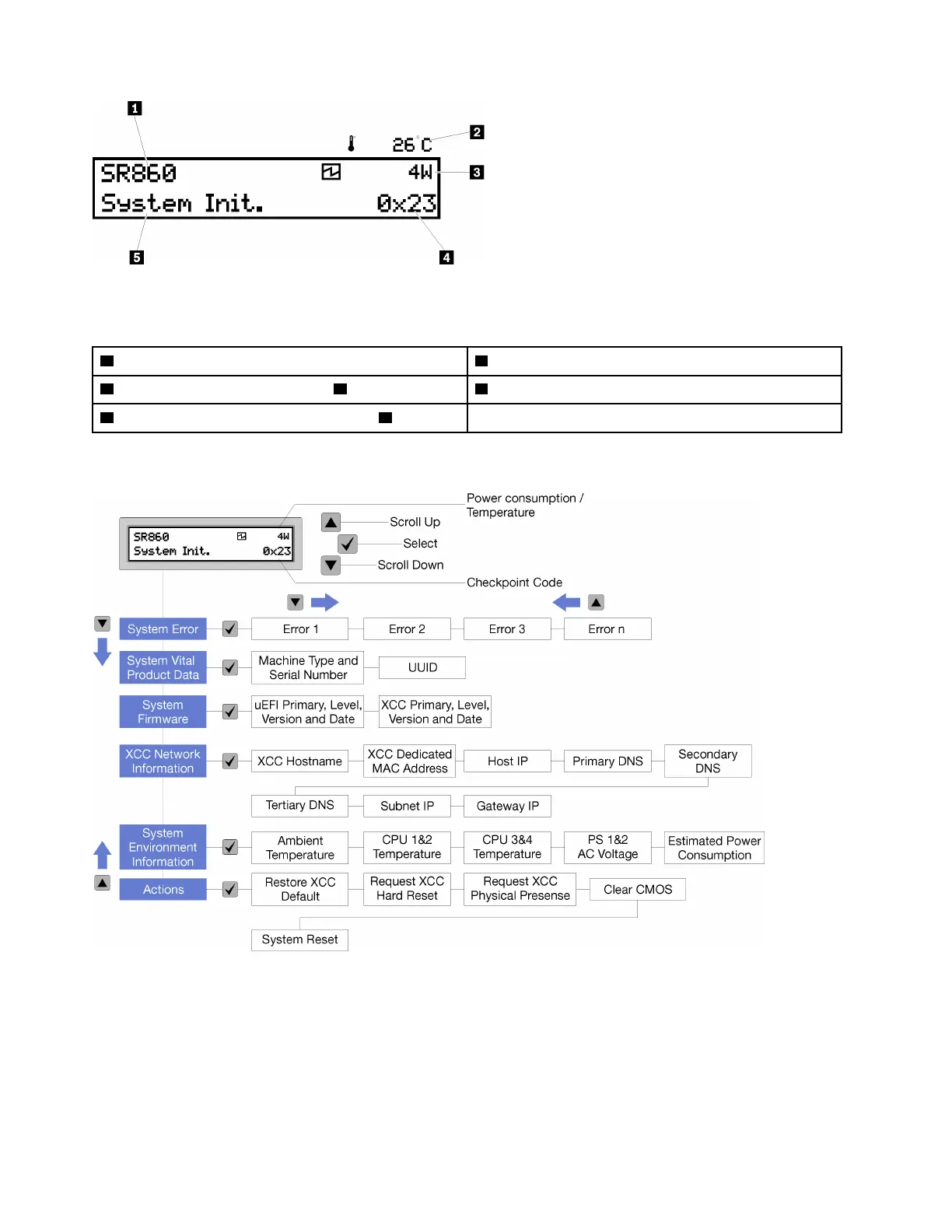

Figure 9. System information on LCD display panel
Table 6. System information display panel of front operator panel
1 System name (ThinkSystem SR860) 4 Checkpoint code
2 Temperature (blinking in turns with 3 ) 5 System status
3 Power consumption (blinking in turns with 2 )
The option menu UI flow on the LCD display is illustrated as following.
Figure 10. Front operator panel option menu UI flow
Following is the list of options available on the front operator panel. Switch between an option and the
subordinate information entries with Select (√) button, and switch among options or information entries with
Scroll up (▼) and Scroll down (▲) buttons.
