Four processors installed
Four options are available for this combination:
Note: Install the processor and memory expansion tray before connecting the signal cables to NVMe
connector on the expansion tray.
1. With SATA/SAS RAID adapter (16i)

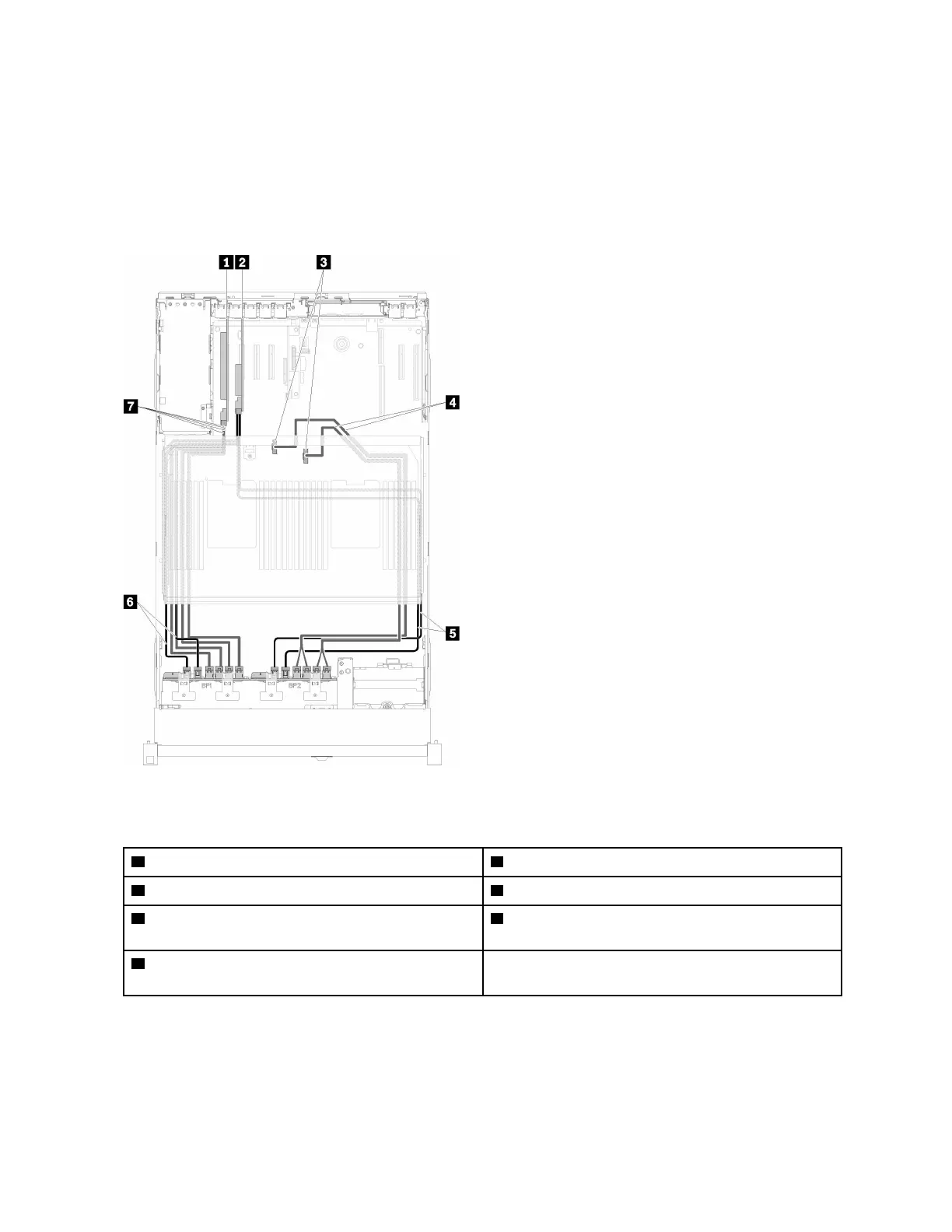

Figure 39. Cable routing, AnyBay backplane + AnyBay backplane
Table 33. Cables and adapters for routing
1 PCIe switch card 5 SATA/SAS signal cables (900 mm)
2 SATA/SAS RAID adapter (16i) 6 SATA/SAS signal cables (720 mm)
3 NVMe connectors on the processor and memory
expansion tray
7 NVMe signal cables for PCIe switch card
4 Direct NVMe signal cables for processor and
memory expansion tray
46 ThinkSystem SR860 Setup Guide
