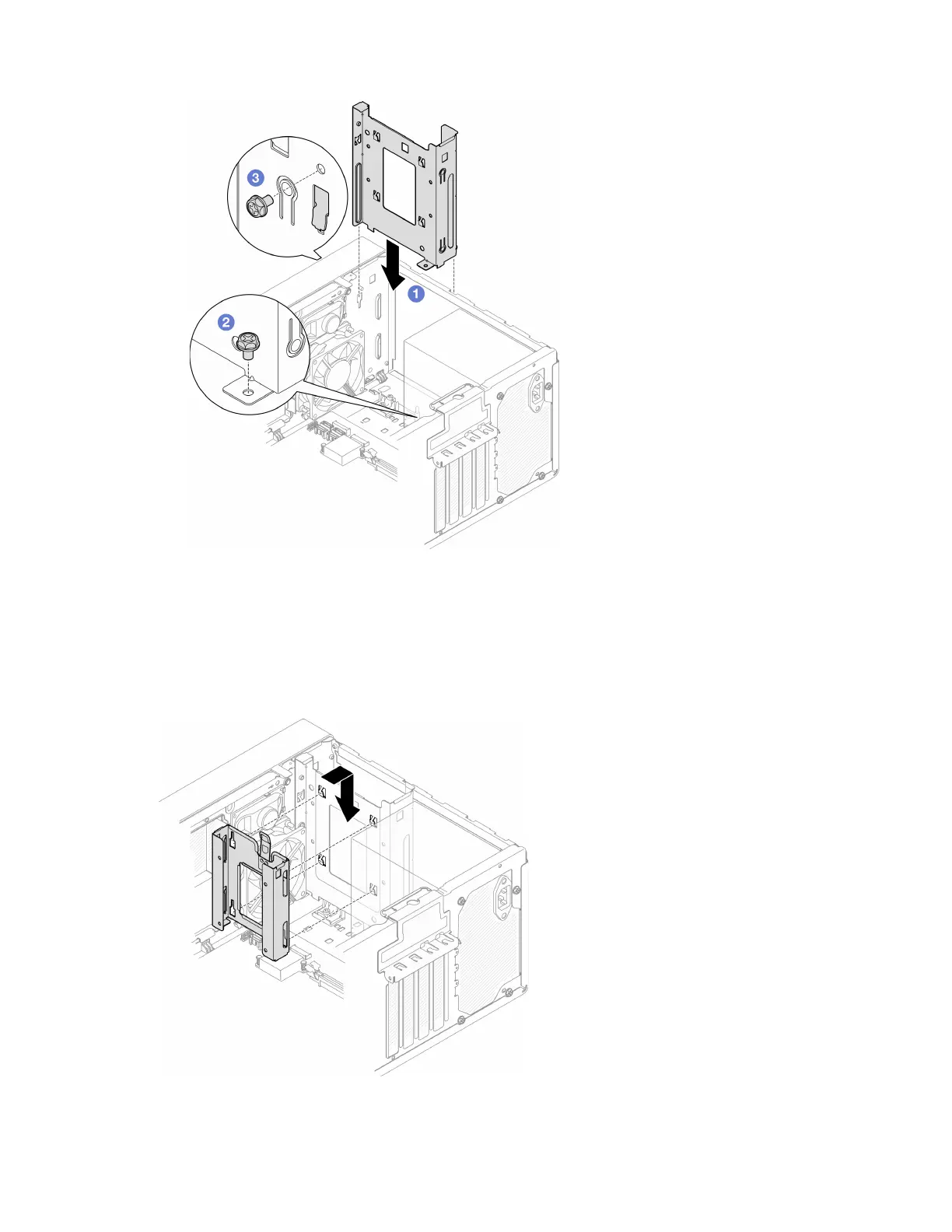

Figure 46. Installing drive cage to bay 1
Step 2. Install the bay 2 drive cage.
Align the four hooks on both drive cages, and attache bay 2 drive cage to bay 1 drive cage; then,
slide the bay 2 drive cage downward until the four hooks on both drive cages are fully engaged.
Make sure the latch on the bay 2 drive cage is also engaged with the hook on bay 1 drive cage.
Figure 47. Installing the drive bay 2 cage
