Lenovo ThinkSystem ST50 V2 Setup Guide

Cable routing for drive bay 1 and bay 2
Read this section to learn about cable routing for the drive in bay 1 and bay 2.
Drive bay 1

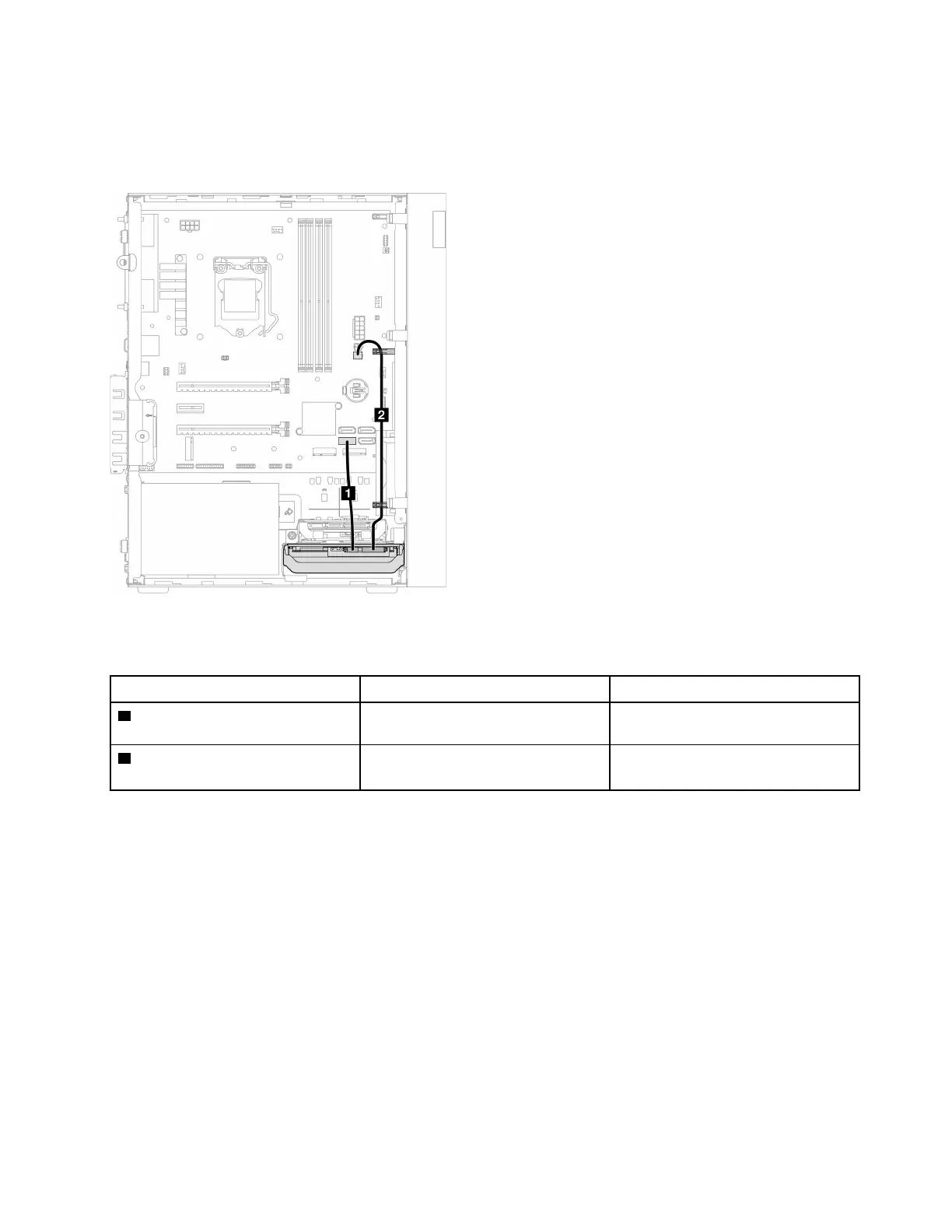

Figure 13. Cable routing for drive bay 1
Table 11. Cable routing for drive bay 1
Cable From To
1 1st 3.5 or 2.5 HDD SATA cable,
185 mm
Bay 1 drive signal connector
SATA 1 connector
2 1st 3.5 and 2.5 HDD Power Cable
(300 mm + 80 mm)
Bay 1 drive power connector SATA power 2 connector
Make sure to follow the “Cable routing guidelines” in “Internal cable routing” on page 19.
For the system-board connector locations, see “System board components” on page 18.
Chapter 2. Server components 21

Lenovo ThinkSystem ST50 V2 Specifications

General

Memory	Up to 128 GB DDR4
Memory Slots	4 DIMM slots
Form Factor	4U Tower
Processor	Intel Xeon E-2300 series
Storage	Up to 4 x 3.5" or 8 x 2.5" drives
Storage Controller	Onboard SATA controller
RAID Support	RAID 0, 1, 5, 10
Expansion Slots	1x PCIe 3.0 x4
Network	1x Gigabit Ethernet port
Operating Systems Supported	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Management	Lenovo XClarity Controller
