Lenovo V340 - 1110 Speakers

56
V340-17IWL Hardware Maintenance Manual
1110 Speakers
Foraccess,removetheFRUinfollowingorder:
• “1010Opticaldrive”onpage33
• “1020Basecover”onpage35
• “1040Batterypack”onpage41
Step1: Unplugthespeakerconnectorandthenremovethespeakers
1
.
1
1

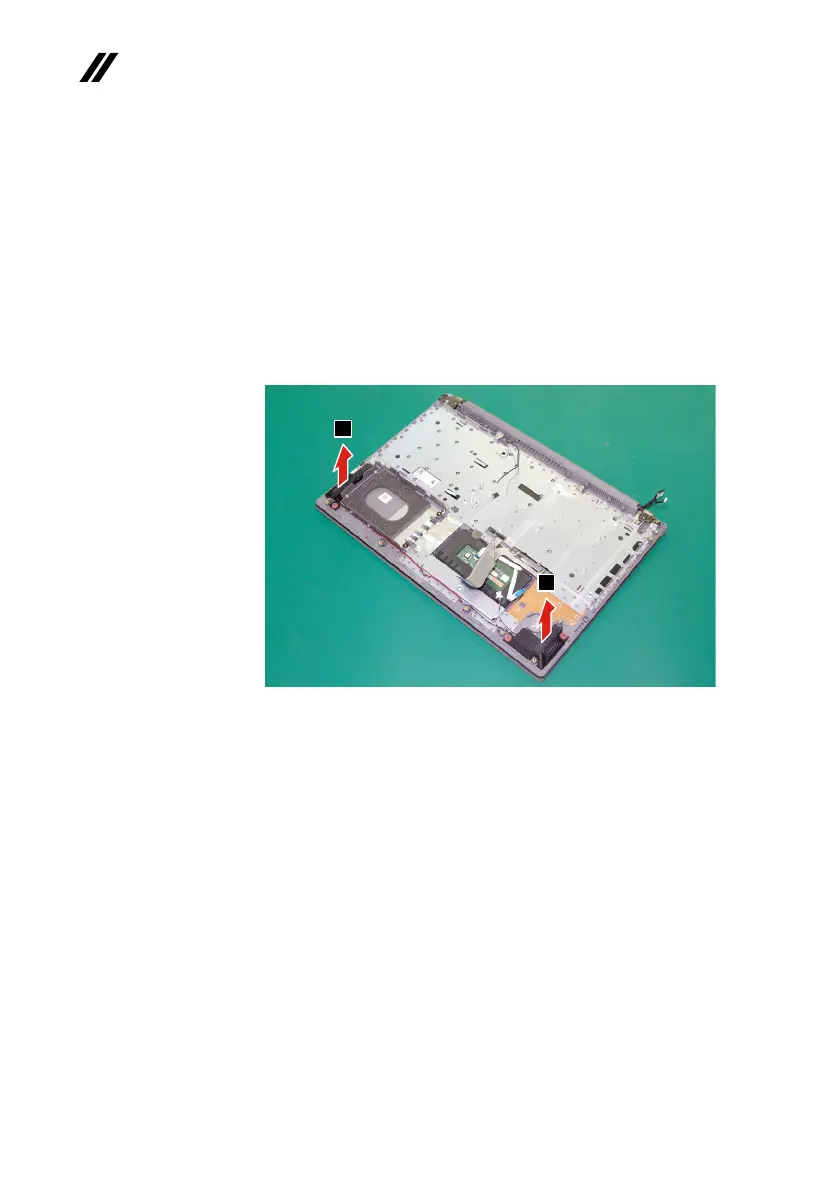

Figure 25. Remove the speakers
When installing:Makesurethattheconnectorisattachedrmly.
