Lenovo V340-17IWL
1150 Integrated camera and antenna assembly
Foraccess,removetheFRUinfollowingorder:
• “1010Opticaldrive”onpage33
• “1020Basecover”onpage35
• “1030Harddiskdrive”onpage39
• “1040Batterypack”onpage41
• “1050SSDcard”onpage43
• “1060DIMM”onpage45
• “1070PCIExpressMiniCardforwirelessLAN”onpage46
• “1080FanassemblyandHeatSinkassembly”onpage48
• “1090Systemboard”onpage52
• “1100ODDtransferboardandbackupbattery”onpage54
• “1110Speakers”onpage56
• “1120Touchpad”onpage57
• “1130Uppercase”onpage58
• “1140LCDunit”onpage60

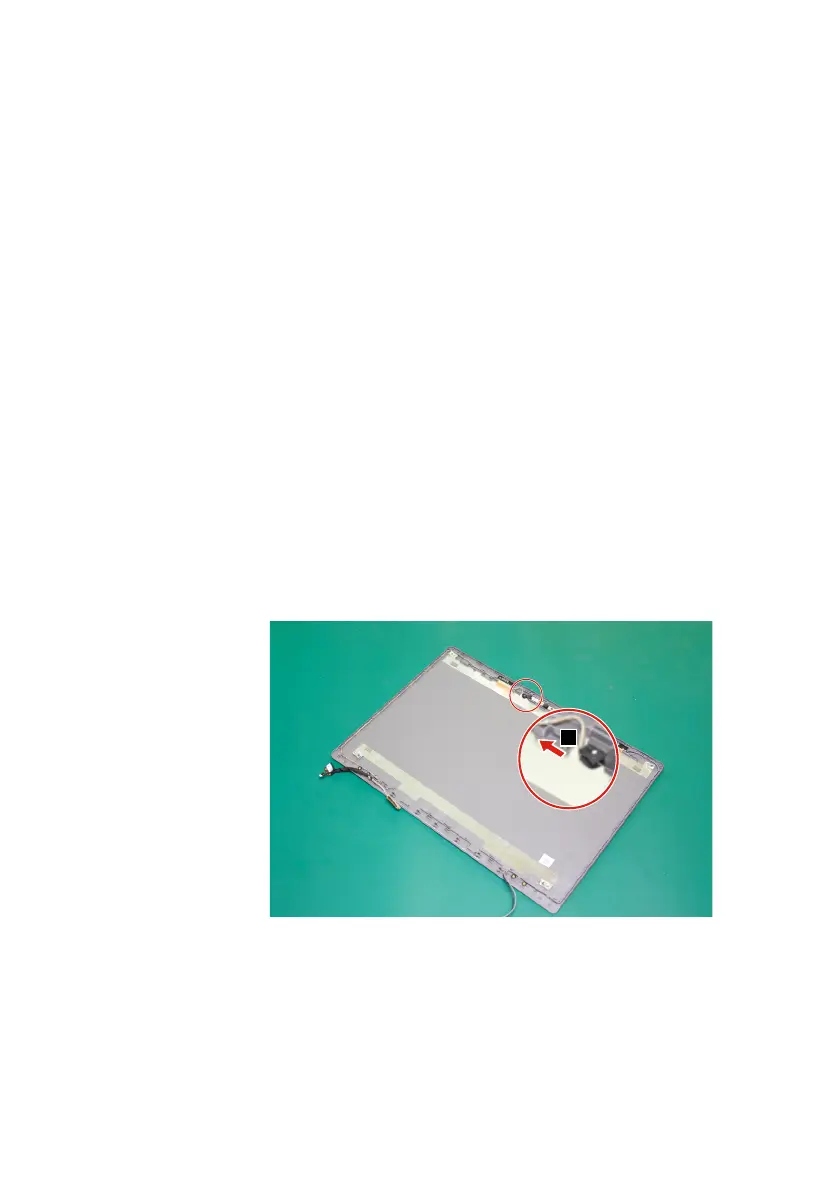

Step1: Detachthecameraconnectorinthedirectionshownbyarrow
1
.
1
Figure 35. Detach the camera connector
