Lenovo V340 - 1130 Upper Case

58
V340-17IWL Hardware Maintenance Manual
1130 Upper case
Foraccess,removetheFRUinfollowingorder:
• “1010Opticaldrive”onpage33
• “1020Basecover”onpage35
• “1030Harddiskdrive”onpage39
• “1040Batterypack”onpage41
• “1060DIMM”onpage45
• “1070PCIExpressMiniCardforwirelessLAN”onpage46
• “1080FanassemblyandHeatSinkassembly”onpage48
• “1090Systemboard”onpage52
• “1100ODDtransferboardandbackupbattery”onpage54
• “1110Speakers”onpage56
• “1120Touchpad”onpage57
Step1: Removethescrews
1
.
1
1
1
1

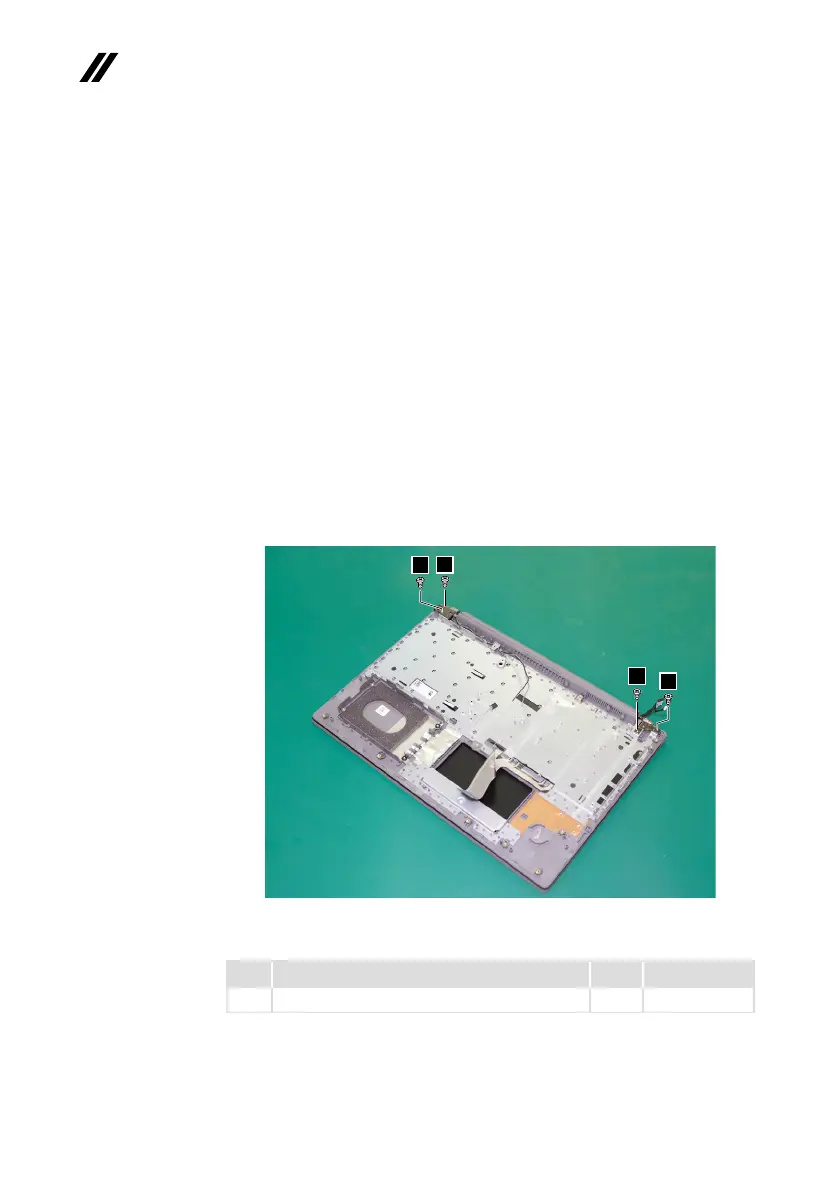

Figure 27. Remove the screws
Step Screw (quantity) Color Torque
1
M2.5×5mm,Phillips-head,nylok-coated(4)
Silver
3+/-0.3kgf/cm
