Lenovo V340 - 1080 Fan Assembly And Heat Sink Assembly

48
V340-17IWL Hardware Maintenance Manual
1080 Fan assembly and Heat Sink assembly
Foraccess,removetheFRUinfollowingorder:
• “1010Opticaldrive”onpage33
• “1020Basecover”onpage35
• “1040Batterypack”onpage41
• “1070PCIExpressMiniCardforwirelessLAN”onpage46
Step1: Releasethecablesfromthecableguidesinthedirectionshownby
 arrows
1
.
1
1

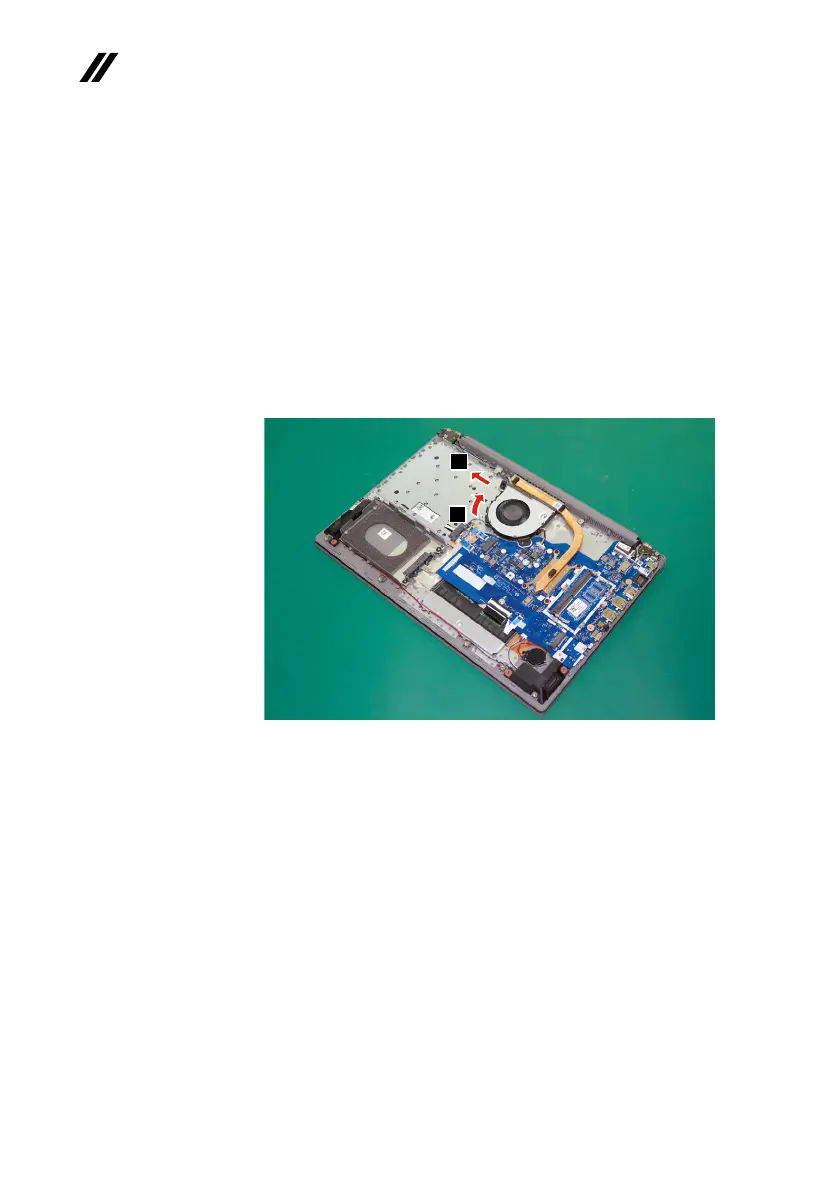

Figure 15. Release the antenna cables
When installing:Route theantenna cablesalongthecableguides.Asyou
routethecables,makesurethattheyarenotsubjectedtoanytension.Tension
couldcausethecablestobedamagedbythe cableguides,orawiretobe
broken.
