Lenovo V340 - 1020 Base Cover

35
Lenovo V340-17IWL
1020 Base cover
Foraccess,removethisFRU:
• “1010Opticaldrive”onpage33
Step1: Removethescrews
1
.
1
1
1
1
1
1
1
1
1
1
1
1

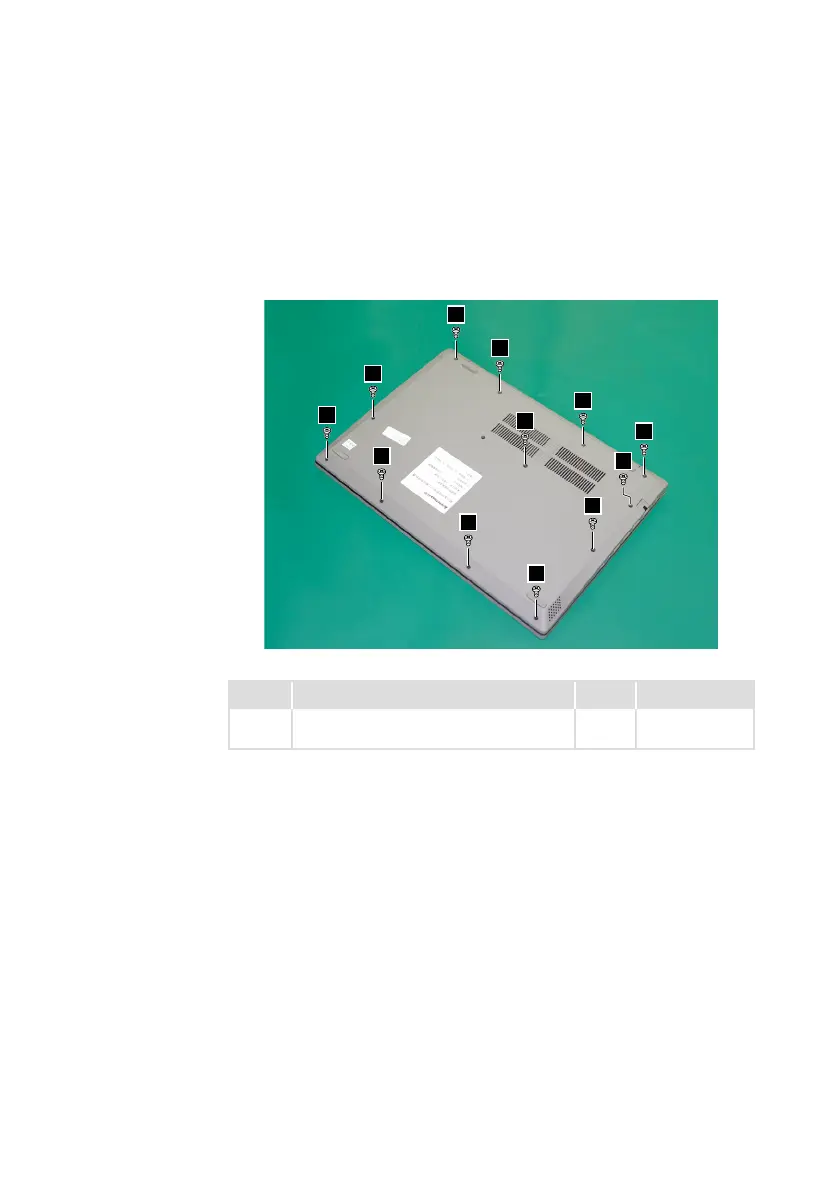

Figure 3. Remove the screws
Step Screw (quantity) Color Torque
1
M2.5×7mm,Phillips-head,nylok-coated
(12)
Black/
Silver
3.0+/-0.3kgf/cm
