6 Commissioning
6.2 Configuring the host system (scanner)
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

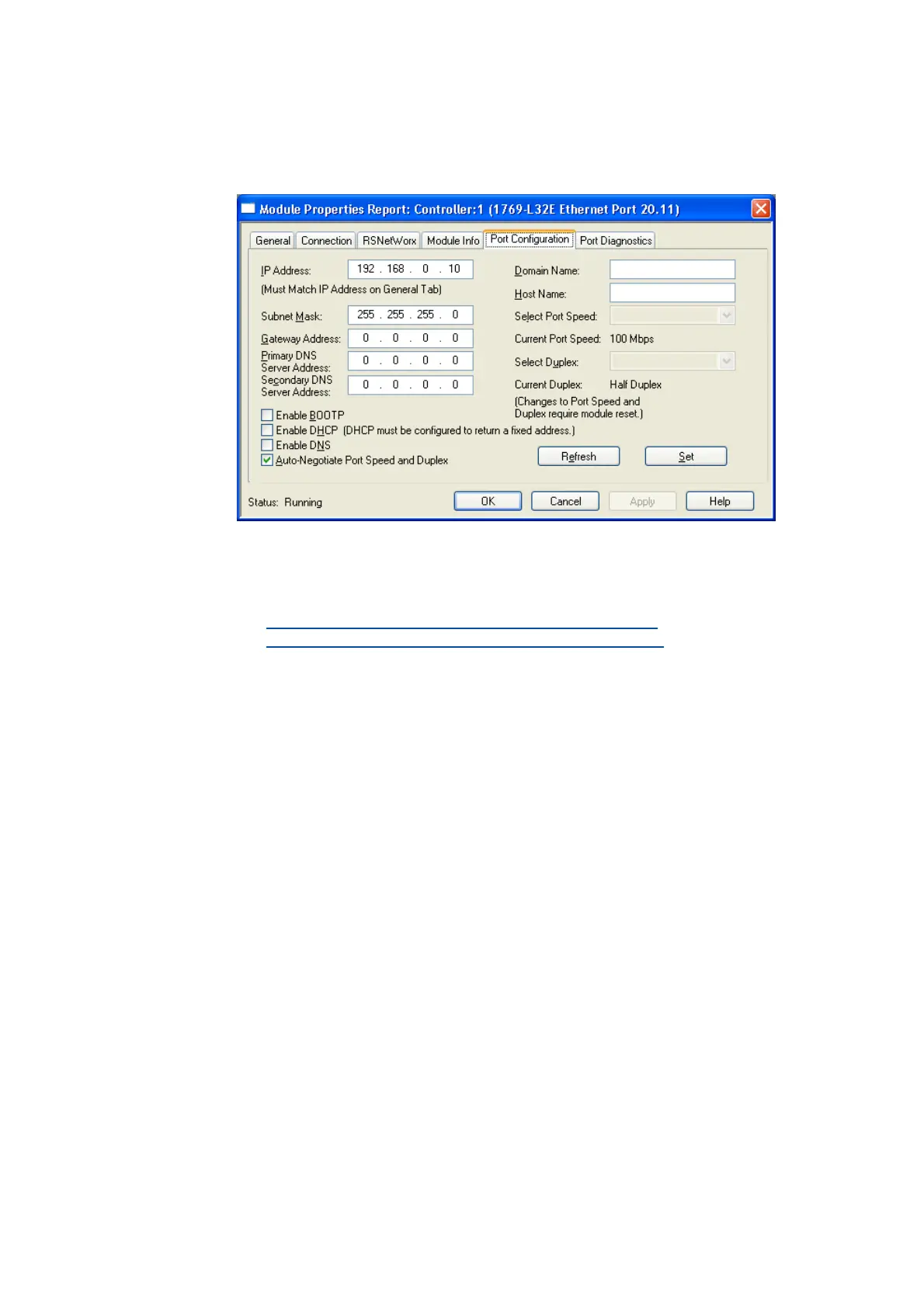

5. Go to the Port Configuration tab and enter the IP configuration, BOOTP setting, Ethernet
baud rate and duplex mode.
6. Then click OK.
• Now, the scanner is configured for the EtherNet/IP network.
• Information on project planning with the »RSLogix 5000« programming software by
Rockwell can be found here:
I/O configuration with »RSLogix 5000« version 19 or lower
( 58)
I/O configuration with »RSLogix 5000« version 20 or higher
( 63)
