8 I/O data transfer (implicit messages)
8.2 I/O configuration in the »Engineer«
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

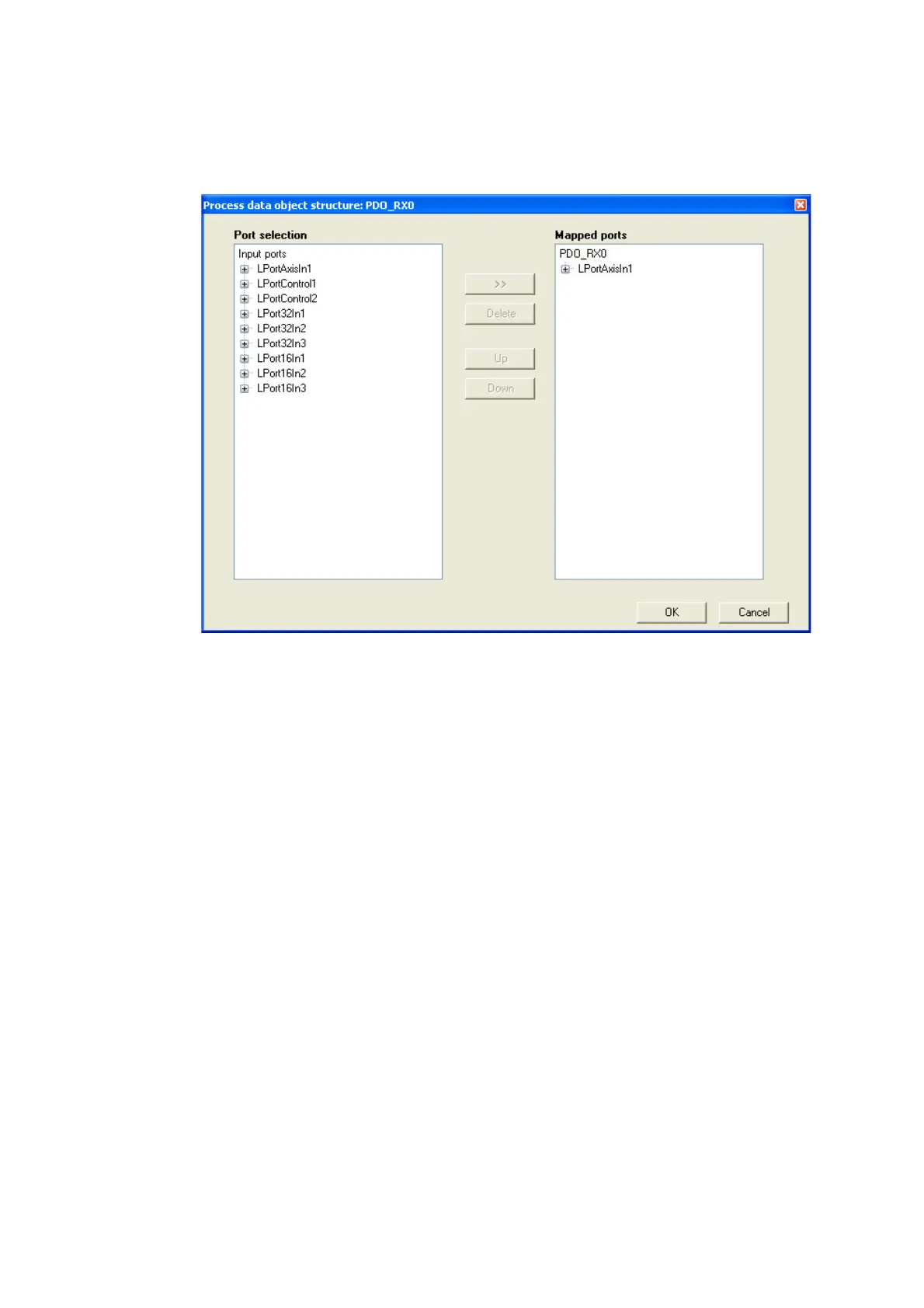

3. Click the Edit PDO button. The Process data object structure:PDO_RX0 selection window
opens:
Here you can map the individual ports from the Port Selection list to the receive PDO
"PDO_RX0" by clicking the >> button. The Up and Down buttons serve to shift the sequence
of the ports within the PDO.
4. Repeat steps 2. and 3. for the send object PDO_TX0.
