EDB94AXX6954 DE/EN/FR/ES/IT 4.0 L 39
9400 HighLine | Commissioning guide
Diagnostics
7 Diagnostics

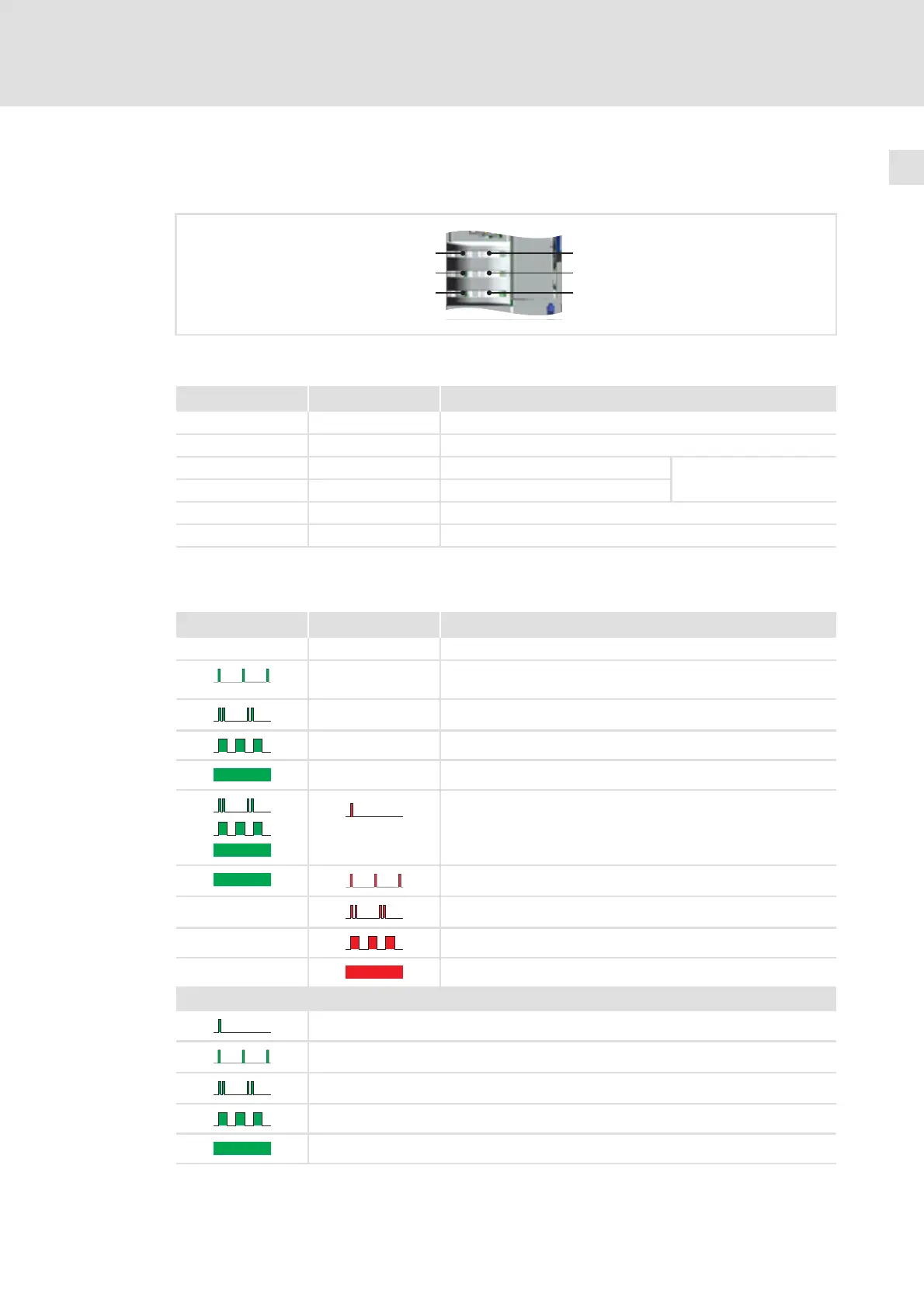

You can quickly receive notes on some operating states via the LED display:
[7-1] LED display at the front of the controller
The control of the two middle LEDs "DRIVE READY" and "DRIVE ERROR" depends on the
device state. The meaning can be obtained from the following table:
CAN-RUN
DRIVE READY
24 V
CAN-ERR
DRIVE ERROR
USER
Labelling Colour Description
CAN-RUN green CAN BUS o.k.
CAN-ERR red CAN BUS error
DRIVE READY green Standard device is ready for operation see the following table
DRIVE ERROR red Warning/trouble/fault
24 V green 24-V supply voltage o.k.
USER yellow Message parameterised through the application
DRIVE READY DRIVE ERROR Device state
OFF OFF Initialisation active
OFF Safe torque off active
• Consider LED on the safety module!
OFF Drive ready to start
OFF Drive switched on
OFF Operation
Warning or warning locked active
• The controller is ready to start, switched on or the operation is
enabled and a warning is indicated.
Quick stop by trouble is active
OFF Trouble is active
OFF Fault is active
OFF System fault is active
Legend - The symbols used have the following meaning:
LED flashes once approx. every three seconds (slow flash)
LED flashes once approx. every 1.25 seconds ( flash)
LED flashes twice approx. every 1.25 seconds (double flash)
LED blinks every second
LED is permanently on
