Lenze PROFINET 9400

3 Product description
3.4 Terminals and interfaces
14
Lenze · E94AYCER communication module (PROFINET®) · Communication Manual · DMS 11.0 EN · 04/2016 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.4 Terminals and interfaces

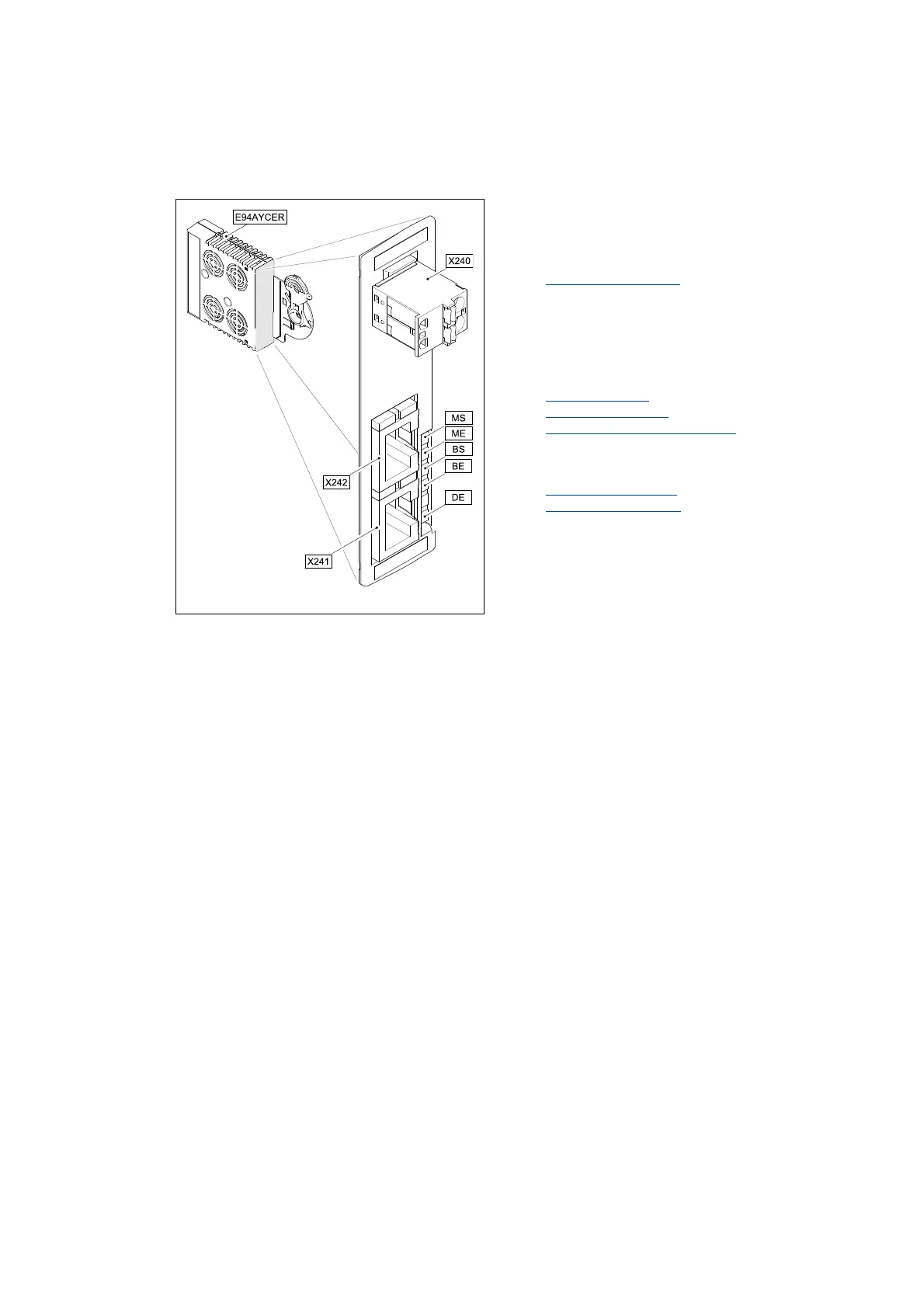

[3-2] E94AYCER communication module (PROFINET)
E94YCER001B
X240 External voltage supply of the communication
module
• 2-pin plug connector with spring connection
External voltage supply
( 31)
X241 PROFINET input (IN)
X242 PROFINET output (OUT)
• RJ45 sockets according to IEC/EN 60603-7
• each with 2 LED status displays for diagnostics
Network topology
( 25)
PROFINET connection
( 27)
Status displays at X241 and X242
( 82)
MS
ME
BS
BE
DE
LED status displays for diagnostics
Module status displays
( 80)
Fieldbus status displays
( 81)
