6 Commissioning
6.4 Setting the IP configuration
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6.4.4 Setting via the Siemens »Primary Setup Tool«
The Siemens »Primary Setup Tool« serves to carry out the IP address allocation if the system lacks
an IO Controller (PLC). The software can be downloaded free of charge from the Siemens
"Automation & Drive" homepage in the support area:
http://support.automation.siemens.com
 How to allocate the IP address via the Siemens »Primary Setup Tool«:

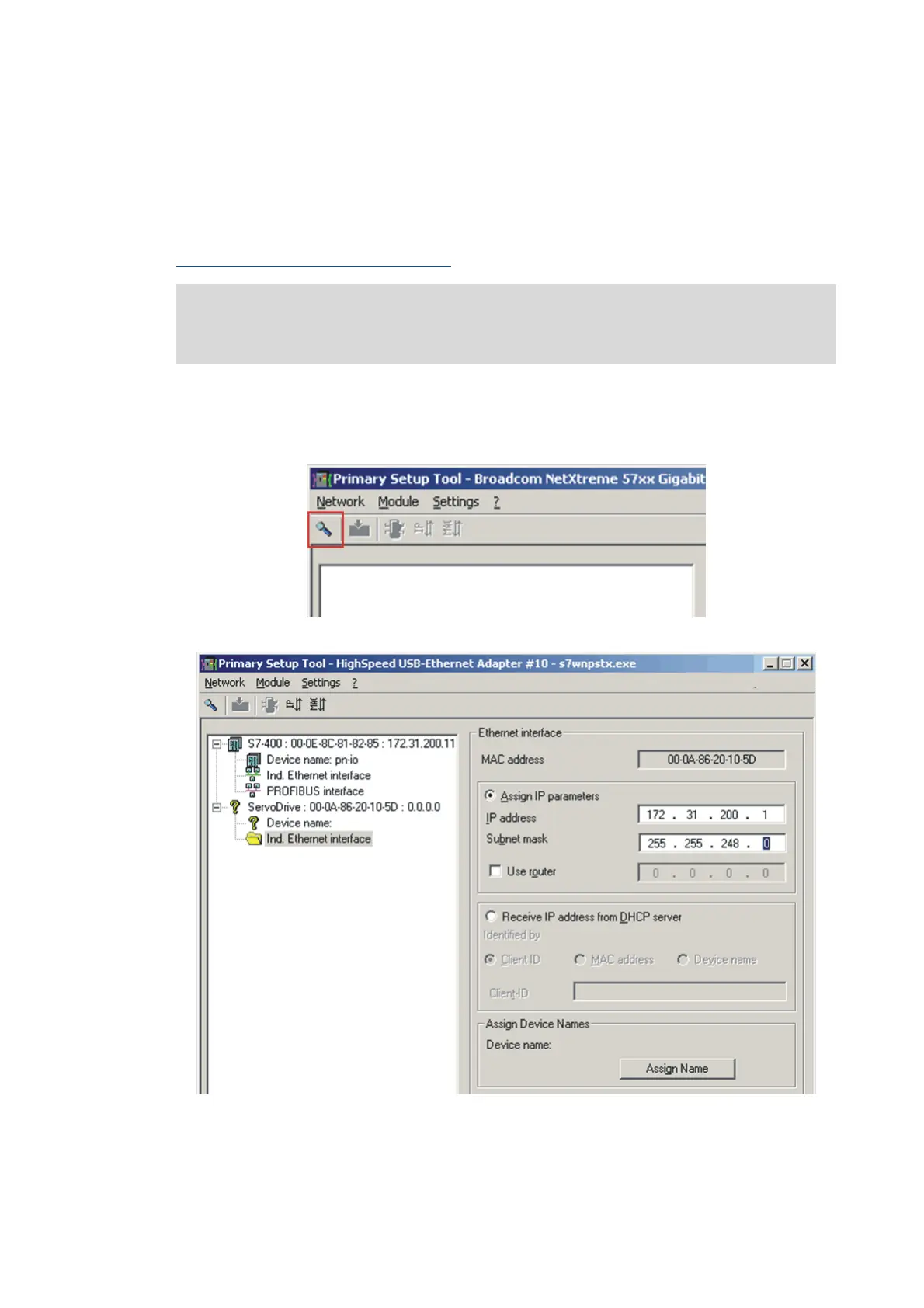

1. Start the Siemens »Primary Setup Tool«.
2. Click the Browse button to search the PROFINET network for nodes.
3. The PROFINET nodes found are displayed.
In our example, one Lenze PROFINET node was found that does not have an IP address yet
(entry 0.0.0.0).
 Note!
Changes will be effective immediately and are saved with mains failure protection.
