6 Commissioning
6.5 Establishing an online connection via PROFINET with the Lenze »Engineer«
50
Lenze · E94AYCER communication module (PROFINET®) · Communication Manual · DMS 11.0 EN · 04/2016 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

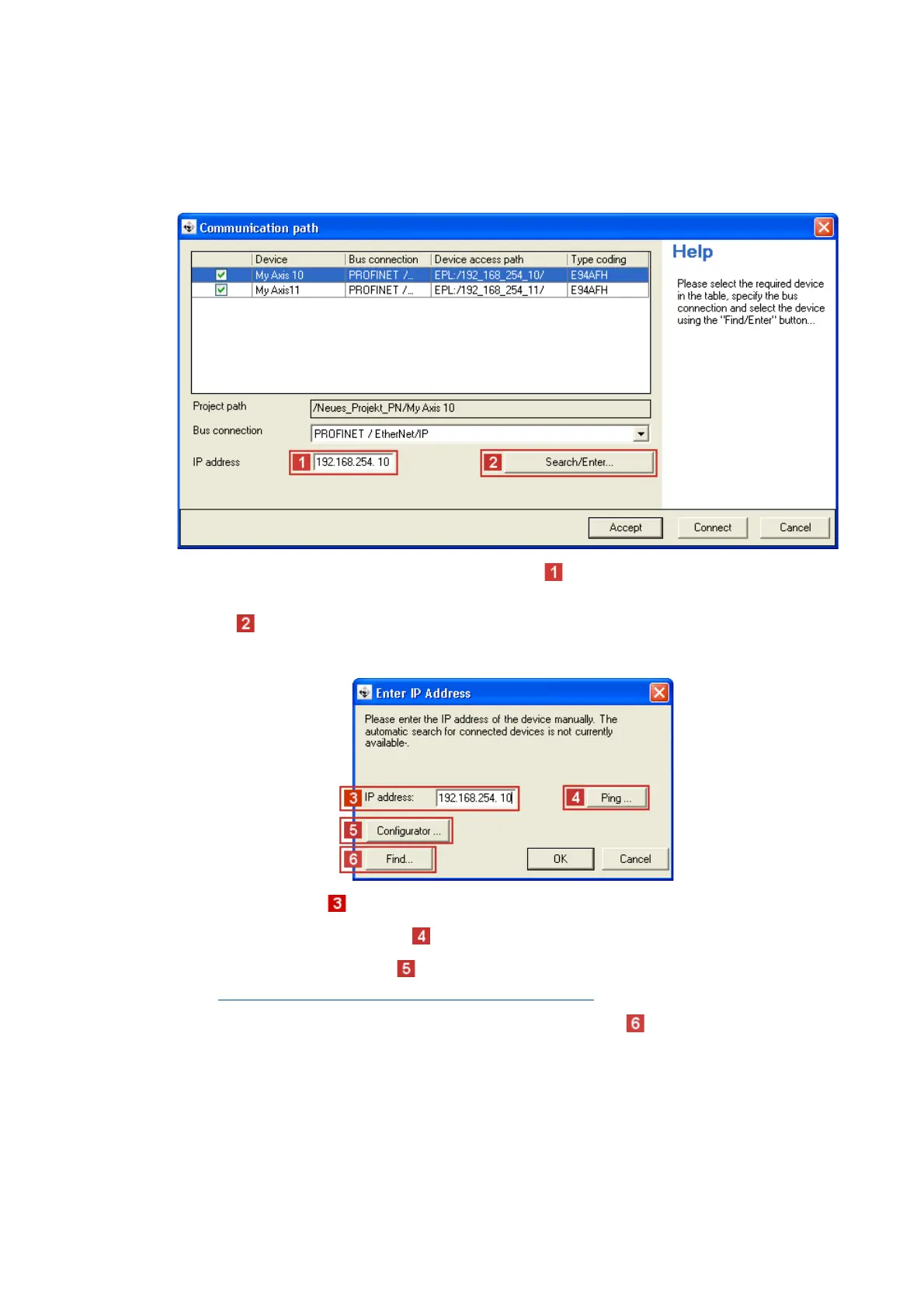

In the »Engineer«, you can use the Online Set communication path and go online menu
command to select the PROFINET communication path. The previously configured PROFINET nodes
are shown in the "Communication path" dialog window:
If the device access path is not configured correctly, the IP address of the inverter selected in the
display field can be entered manually here.
Via the Search/Enter button, you can establish a connection to devices which have not
appeared in the display field. Corresponding settings for this can be made in the "Enter IP Address"
dialog window that will appear:
Here you can enter an IP address manually or execute the following actions using the buttons:
• Execute the console command Ping.
• Assign the IP address via the Configurator.
Setting via the PROFINET configurator of the »Engineer«
( 38)
• Select the device access path to the desired inverter by clicking Find.
After having established the online connection, you can continue work with the »Engineer« as
usual.
