Lenze SMVector Reference Guide

5 CMVETH01B
Introduction
2.2.3 TCP/IP Sockets
The SMVector drive supports up to 2 TCP/IP socket connections.
2.2.4 CIP Connections
The SMVector drive supports up to 6 CIP connections.
2.3 Module Specification
• Auto detection of data rates
• Supported baudrates: 10 BaseT, 100 BaseT
• Scalable amount of input and output process data words (4 output, 4 input).
• Parameter access data channel
• To simplify setup and operation, implemented classes and behavior conform to the AC DRIVE profile as
specified in the ODVA Common Industrial Protocol (CIP) Specification.
2.4 Module Identification Label

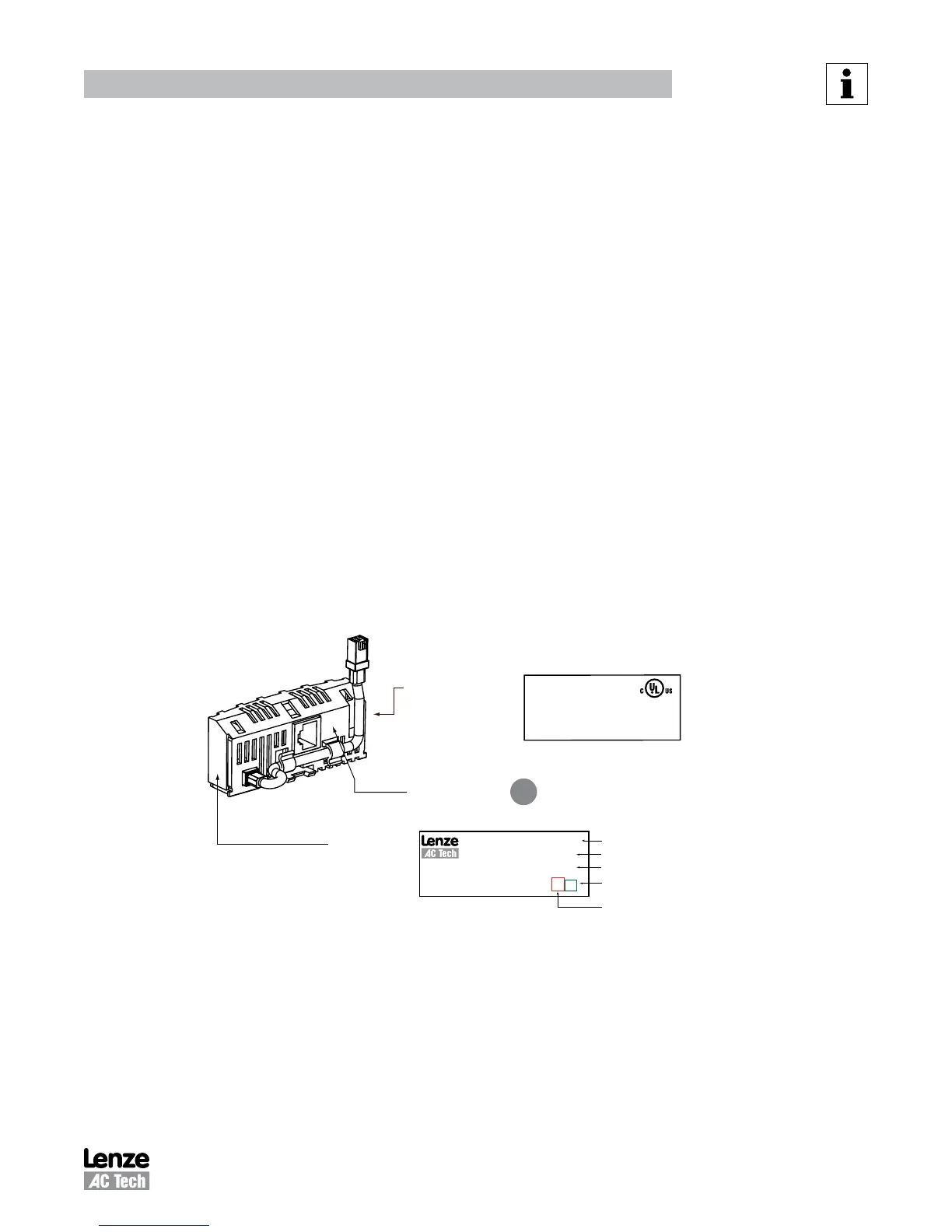

Figure 4 illustrates the labels on the SMV EtherNet/IP communications module. The SMVector EtherNet/IP
module is identifiable by:
• Two labels affixed to either side of the module.
• The color coded identifier label in the center of the module.
A: Fieldbus Protocol
B: Model Number
C: Lenze Order Number
D: Firmware Revision
E: Hardware Revision
SMV ETH
TYPE: ESVZAE0
ID-NO: 12345678
ESVZAC0-000XX1A10
A
B
C
D
E
Left-hand Label:
Module Data
Right-hand Label:
Ratings & Certifications
E0
Fieldbus Identifier:
E = EtherNet/IP
LISTED
COMM I/O ONLY
S/N: 123456789
ESVZAE0-000XX1A10
Figure 4: EtherNet/IP Module Labels

Lenze SMVector Specifications

General

Protection Class	IP20
Overload Capacity	150% for 60 seconds
Communication Options	CANopen, Profibus DP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Control Method	Sensorless Vector
Ambient Temperature	-10°C to +40°C
