Lenze SMVector Reference Guide

13 CMVETH01B
Commissioning

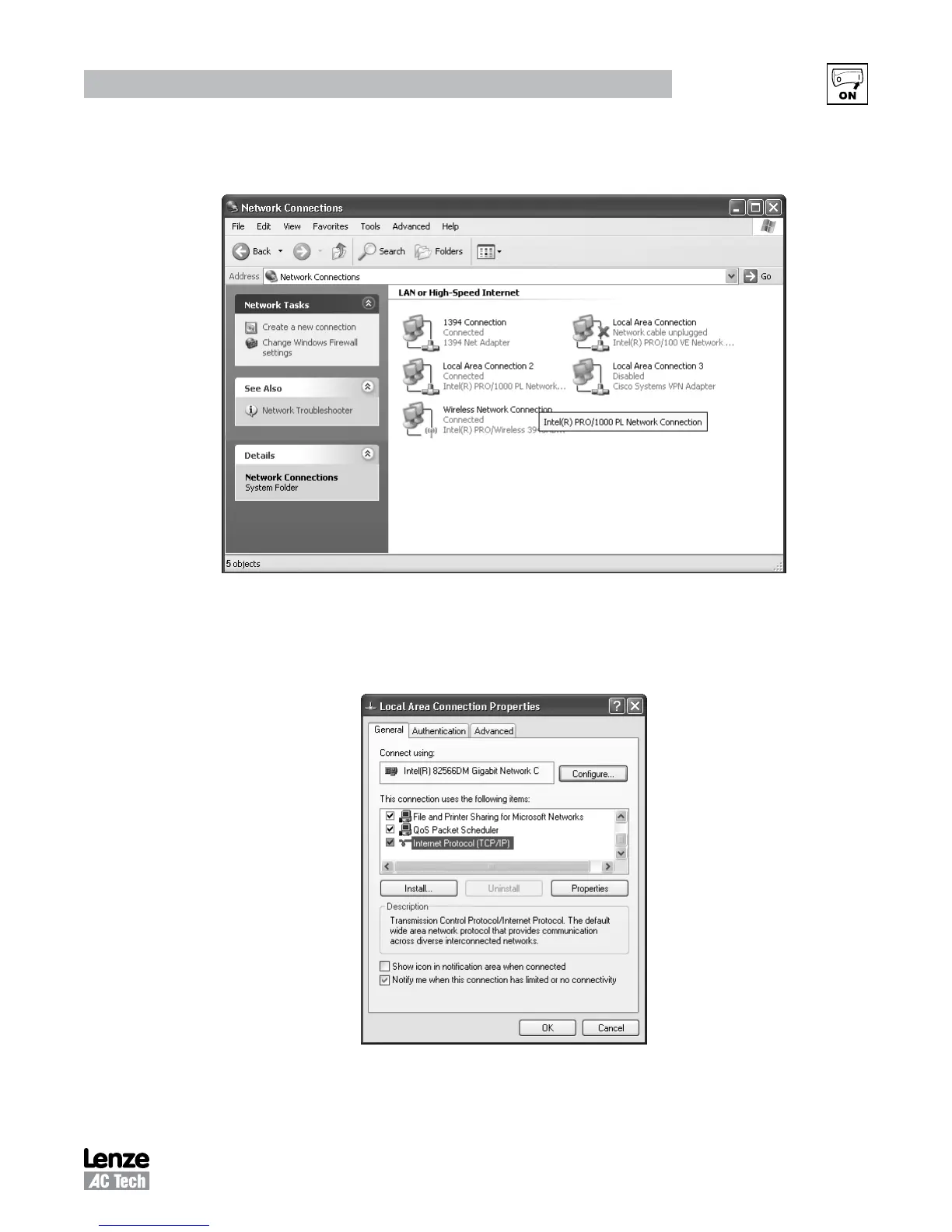

Regardless of the Windows XP viewing mode the following [Network Connections] screen will appear.
Hereafter all configuration screens are the same regardless of selected Windows XP viewing mode.
Select the connection you wish configure. [Local Area Connection] is typically the standard or local Ethernet
port on the PC (the port supplied with the PC), with any additional hardwire ports displayed as [Local Area
Connection x] (with x being a numerical value). Double-click the icon for the port you wish to configure. The
[Local Area Connection Properties] screen will appear.
Use the vertical scroll bar on the right hand side of the screen to scroll down to the [Internet Protocol
(TCP/IP)] option in the selection window. Select this option and click the [Properties] button. The [Internet
Protocol (TCP/IP) Properties] screen will appear.

Lenze SMVector Specifications

General

Protection Class	IP20
Overload Capacity	150% for 60 seconds
Communication Options	CANopen, Profibus DP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Control Method	Sensorless Vector
Ambient Temperature	-10°C to +40°C
