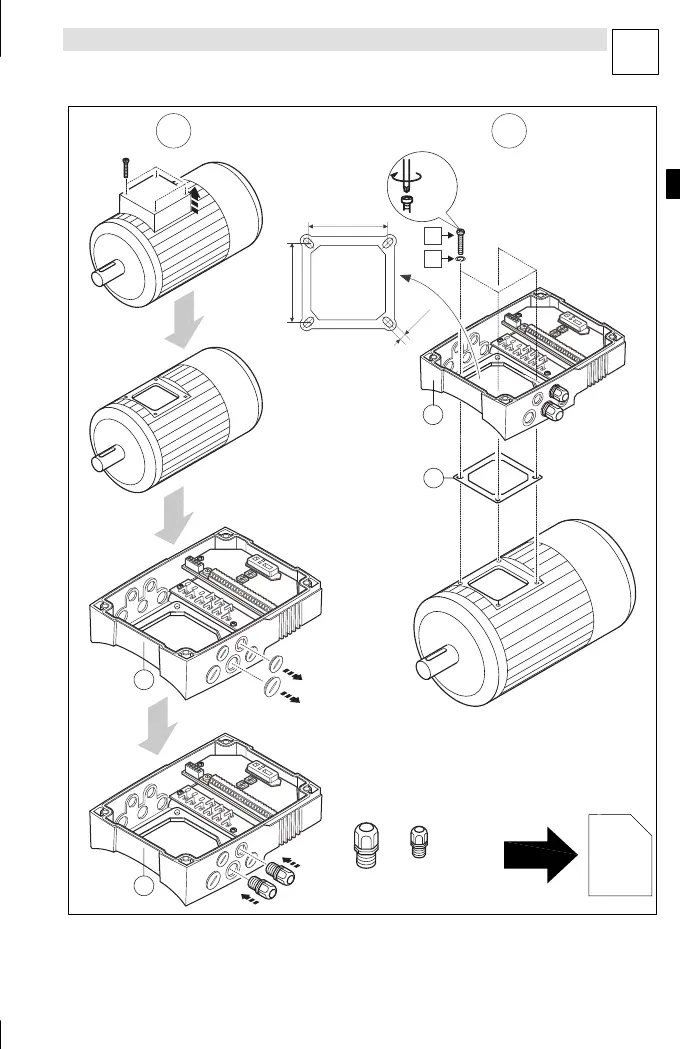

Lenze Starttec E71MM402 - Preparation

Motor mounting
Preparation
3
EDK71MMXXX-020 DE/EN/FR 1.0
17
L
Abb. 1-10
1
5mm
68-73mm
68-73mm
1a
4 × 6 ×
M20 M16
1a
2a
1a
B
A
3.4 Nm
30 lb-in
2
start024
21
0
Screw (DIN 7985) 20 mm
1
Serrated lock washer to DIN 6798
