Technical data
Dimensions, mechanical design
2
EDK71MMXXX-020 DE/EN/FR 1.0
15
L

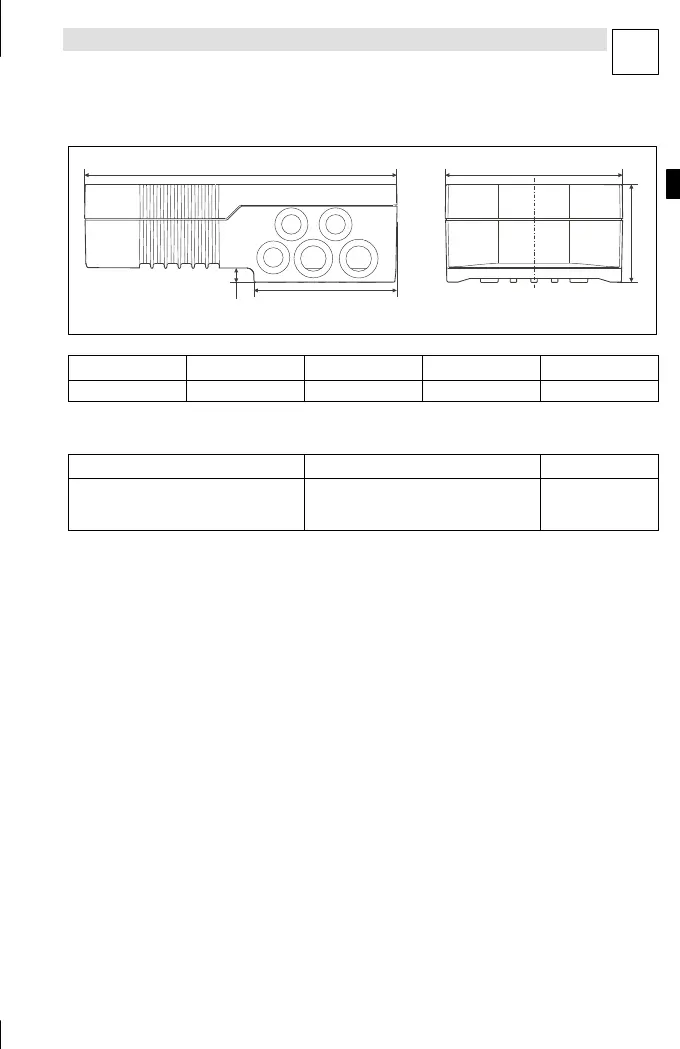

Dimensions
start001
a
d
e
b
c
a [mm] b [mm] c [mm] d [mm] e [mm]
228.0 10.0 104.5 129.0 71.0
Mechanical design
Housing Cable connections Weight
Housing with electronic module from
aluminium die-cast
Housing cover of PVC
4 M20 (threaded length 10 mm)
6 M16 (threaded length 10 mm)
1.3 kg
