Commissioning
Parameter setting using the keypad
EDK71MMXXX-020 DE/EN/FR 1.0
L
26

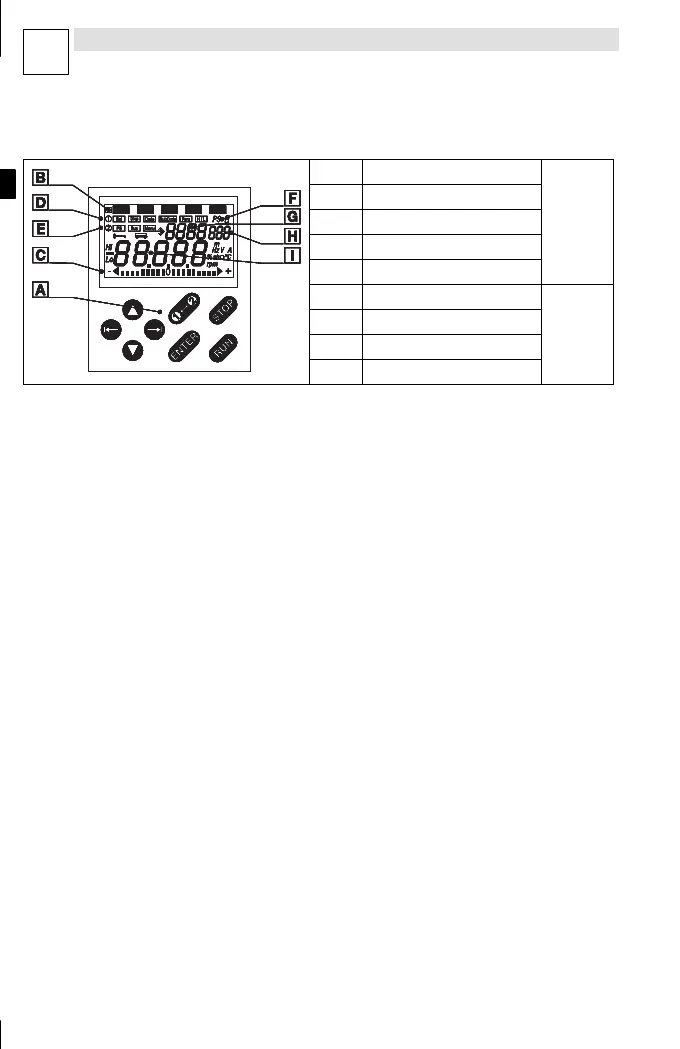

The keypad is available as accessory. A full description can be obtained from the information included
in the keypad delivery.
0
Function keys
1
Status display
2
Bargraph display
3
Function bar 1
4
Function bar 2
5
Parameter set
C
h
a
n
g
e
s
6
Code number
Changes
possible
7
Subcode number
p
o
s
s
i
b
l
e
when lamp
i
s
b
l
i
n
k
i
n
g
8
Parameter value with unit
i
s
b
l
i
n
k
i
ng
Menu structure
All parameters for co ntroller setting or monitoring are saved in codes under the menus User and all.
The codes have numbers 6 and are abbreviated in the text with a ”C” before the number. Some codes
store the parameters in numerical “subc odes” 7 to ensure that the parameter setting is clearlystruc-
tured (example: C0517 menu User).
l The menu User
– is active after every mains switching or keypad attachment during operation.
– contains all codes required for a standard applic ation (Lenze setting).
– can be modified as required under C0517.
l The menu all
– contains all codes.
– shows a list of all codes in ascending order.
l The change between User and all and how to change parameters in the codes is described
on the following pages.
