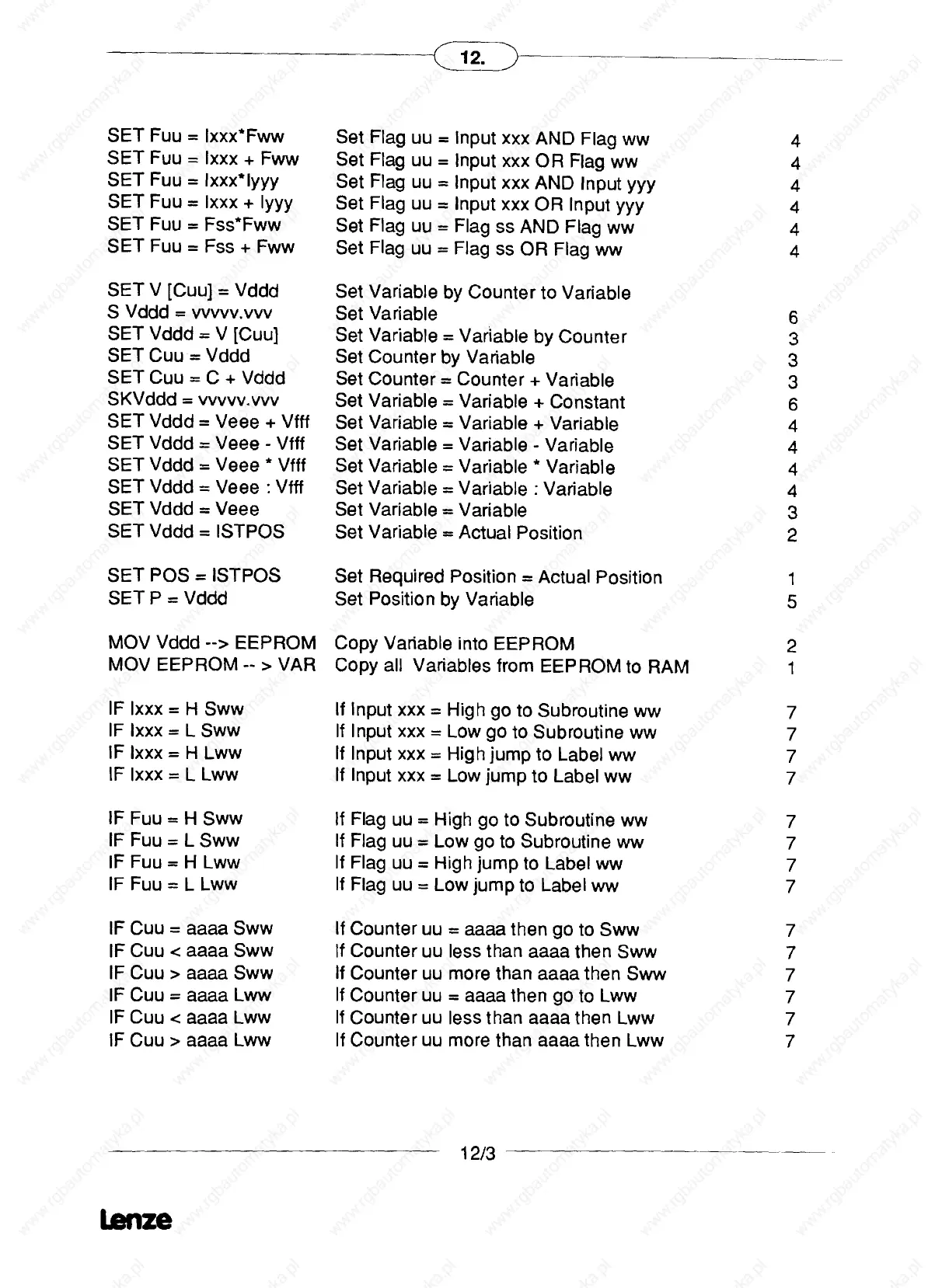

Lenze SX-1 - Logic and Arithmetic Instructions

12. — —____ ____
SET Fuu = lxxx*Fww
SET Fuu = lxxx + Fww
SET Fuu = lxxx*lyyy
SET Fuu = lxxx + lyyy
SET Fuu = Fss*Fww
SET Fuu = Fss + Fww
SET V [Cuu) = Vddd
5 Vddd = vvvvv.vvv
SET Vddd = V fCuu)
SET Cuu = Vddd
SETCuu=C+Vddd
SKVddd = vvvvv.vvv
SETVddd=Veee+Vtff
SET Vddd = Veee - Vttt
SET Vddd = Veee Vttt
SET Vddd = Veee : Vttt
SET Vddd = Veee
SET Vddd = ISIPOS
SET POS = ISIPOS
SETP=Vddd
MOV Vddd --> EEPROM
MOVEEPROM-->VAR
IF lxxx = H Sww
IF lxxx = L Sww
IF lxxx = H Lww
IF lxxx = L Lww
IF Fuu = H Sww
IF Fuu = L Sww
IF Fuu = H Lww
IF Fuu = L Lww
IF Cuu = aaaa Sww
IF Cuu <aaaa Sww
IF Cuu > aaaa Sww
IF Cuu = aaaa Lww
IF Cuu <aaaa Lww
IF Cuu > aaaa Lww
Set Flag uu = Input xxx AND Flag ww
Set Flag uu = Input xxx OR Flag ww
Set Flag uu = Input xxx AND Input yyy
Set Flag uu Input xxx OR Input yyy
Set Flag uu = Flag ss AND Flag ww
Set Flag uu = Flag ss OR Flag ww
Set Variable by Counter 10 Variable
Set Variable
Set Variable = Variable by Counter
Set Counter by Variable
Set Counter = Counter + Variable
Set Variable = Variable + Constant
Set Variable = Variable + Variable
Set Variable = Variable - Variable
Set Variable = Variable ~‚ Variable
Set Variable = Variable Variable
Set Variable = Variable
Set Variable = Actual Position
Set Required Position = Actual Position
Set Position by Variable
Copy Variable mb EEPROM
Copy all Variables trom EEP ROM to RAM
lt Input xxx = High 90 to Subroutine ww
lt Input xxx = Low go to Subroutine ww
lt Input xxx = High lump to Label ww
lt Input xxx = Low jump 10 Label ww
lt Flag uu = High 90 to Subroutine ww
lt Flag uu = Low 90 to Subroutine ww
lt Flag uu = High jump to Label ww
lt Flag uu = Low jump to Label ww
lt Counter uu = aaaa Ihen 90 tO Sww
lt Counter uu less Ihan aaaa then Sww
lt Counter uu more Ihan aaaa Ihen Sww
lt Counter uu = aaaa then 90 to Lww
If Counter uu less than aaaa then Lww
lt Counter uu more than aaaa then Lww
12/3
4
4
4
4
4
4
6
3
3
3
6
4
4
4
4
3
2
1
5
2
1
7
7
7
7
7
7
7
7
7
7
7
7
7
7
