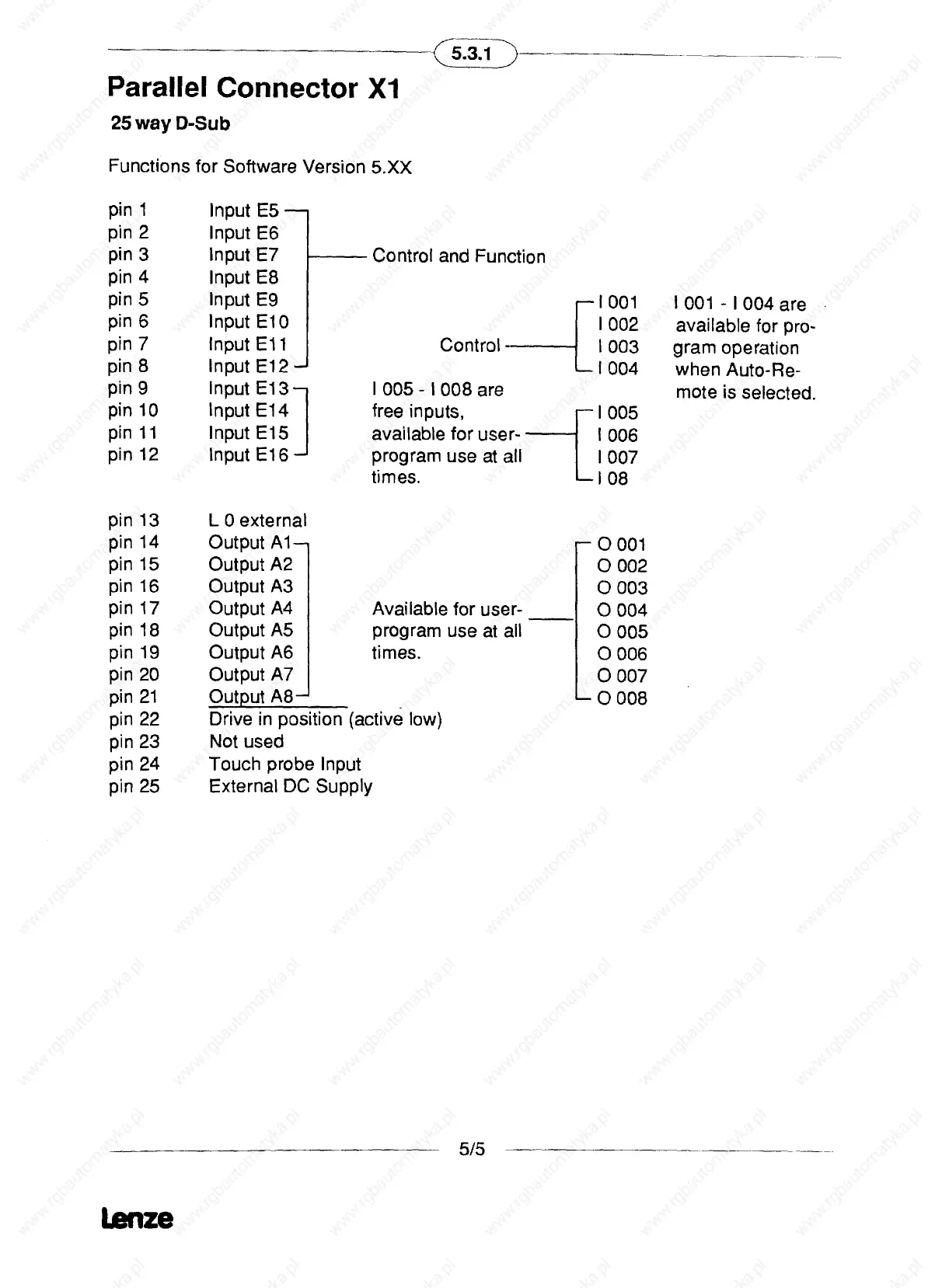

5.3.1 -
Parallel Connector Xl
25 way D-Sub
Functions for Software Version 5.XX
Input E5
Input E6
Input E7
Input E8
Input E9
Input E1O
InputEll
Input E12
Input E13 -1
Input E14
Input E15
Input E16 —‚
Control and Function
Control
1 005 - 1 008 are
free inputs,
available tor user -
program use at all
times.
1 001
1 002
1 003
1 004
1 005
1 006
1 007
1 08
1 001 - 1 004 are
available tor pro -
gram operation
when Auto-Re-
mote is selected.
L 0 external
Output Al
Output A2
Output A3
Output A4
Output A5
Output A6
Output A7
Output A8
Drive in position
Not used
Touch probe Input
External DC Supply
Available tor user -
program use at all
times.
(active 10w)
5/5
pin 1
pin 2
pin 3
pin 4
pin 5
pin 6
pin 7
pin 8
pin 9
pin 10
pin 11
pin 12
pin 13
pin 14
pin iS
pin 16
pin 17
pin 18
pin 19
pin 20
pin 21
pin 22
pin 23
pin 24
pin 25
— 0 001
o 002
0 003
O 004
O 005
O 006
0 007
— 0 008
