5.3.1

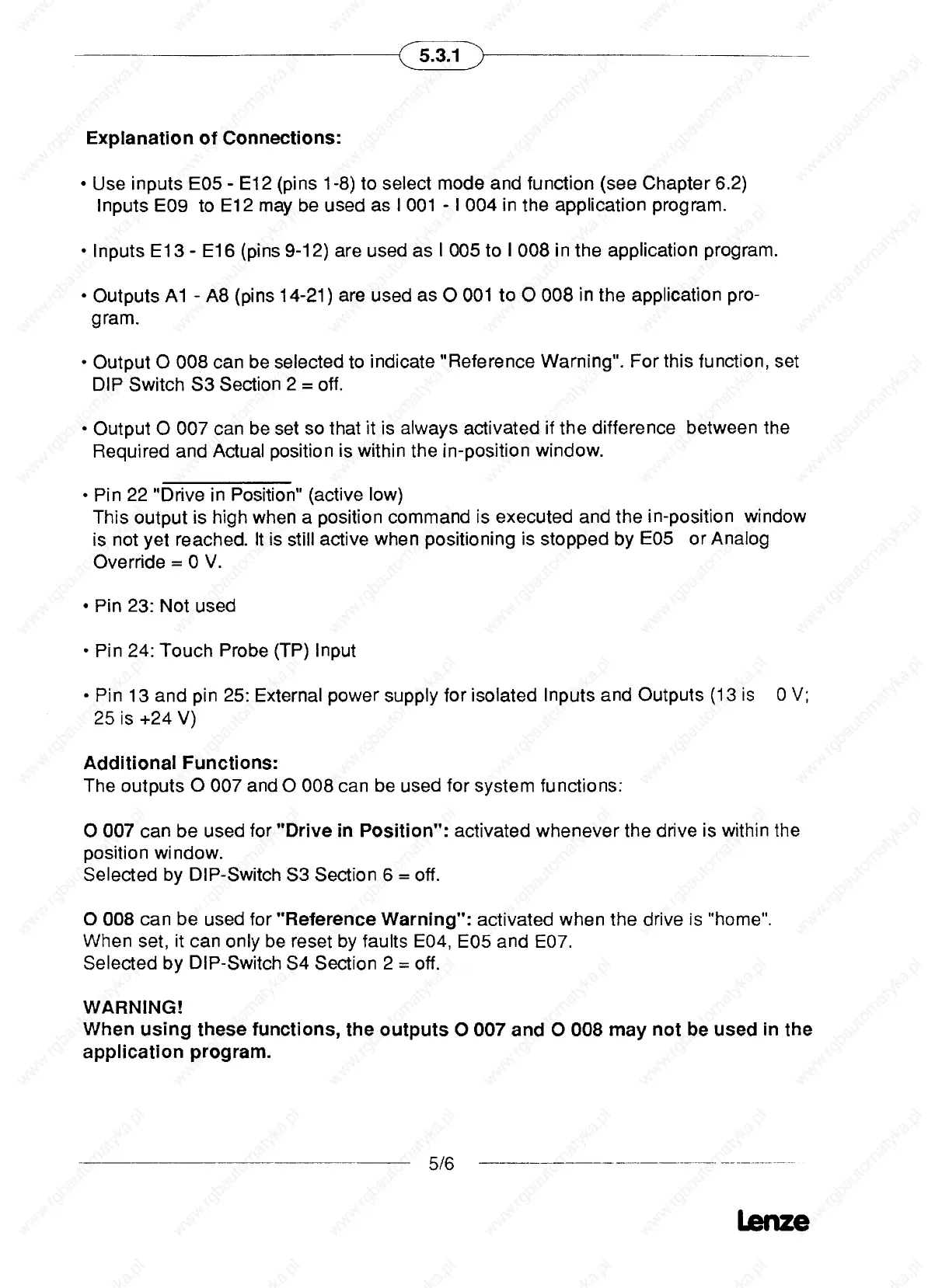

Explanation of Connections:
• Use inputs E05 - E12 (pins 1-8) to select mode and function (see Chapter 6.2)
lnputs E09 to E12 may be used as 1001 - 1004 in the application program.
• lnputs El 3 - El 6 (pins 9-12) are used as 1 005 to 1 008 in the application program.
• Outputs Al - A8 (pins 14-21) are used as 0 001 to 0 008 in the application pro-
gram.
• Output 0 008 can be selected to indicate „Reference Warning“. For this function, set
DIP Switch 53 Section 2 = off.
• Output 0 007 can be set so that lt is always activated if the difference between the
Required and Actual position is within the in-position window.
• Pin 22 „Drive in Position“ (active 10w)
This output is high when a position command is executed and the in-position window
is not yet reached. lt is still active when positioning is stopped by FOS or Analog
Override = 0 V.
• Pin 23: Not used
• Pin 24: Touch Probe (TP) Input
• Pin 13 and pin 25: External power supply for isolated Inputs and Outputs (13 is 0V;
25 is +24 V)
Aciciitional Functions:
The outputs 0 007 and 0 008 can be used for system functions:
o 007 can be used tor „Drive in Position“: activated whenever the drive is within the
position window.
Selected by DIP-Switch S3 Seotion 6 = oft.
o 008 can be used tor „Reference Warning“: activated when the drive is „home“.
When set, it can only be reset by faults E04, E05 and E07.
Selected by DIP-Switch S4 Seotion 2 = oft.
WARNING!
When using these functions, the outputs 0 007 anci 0 008 may not be useci in the
application program.
