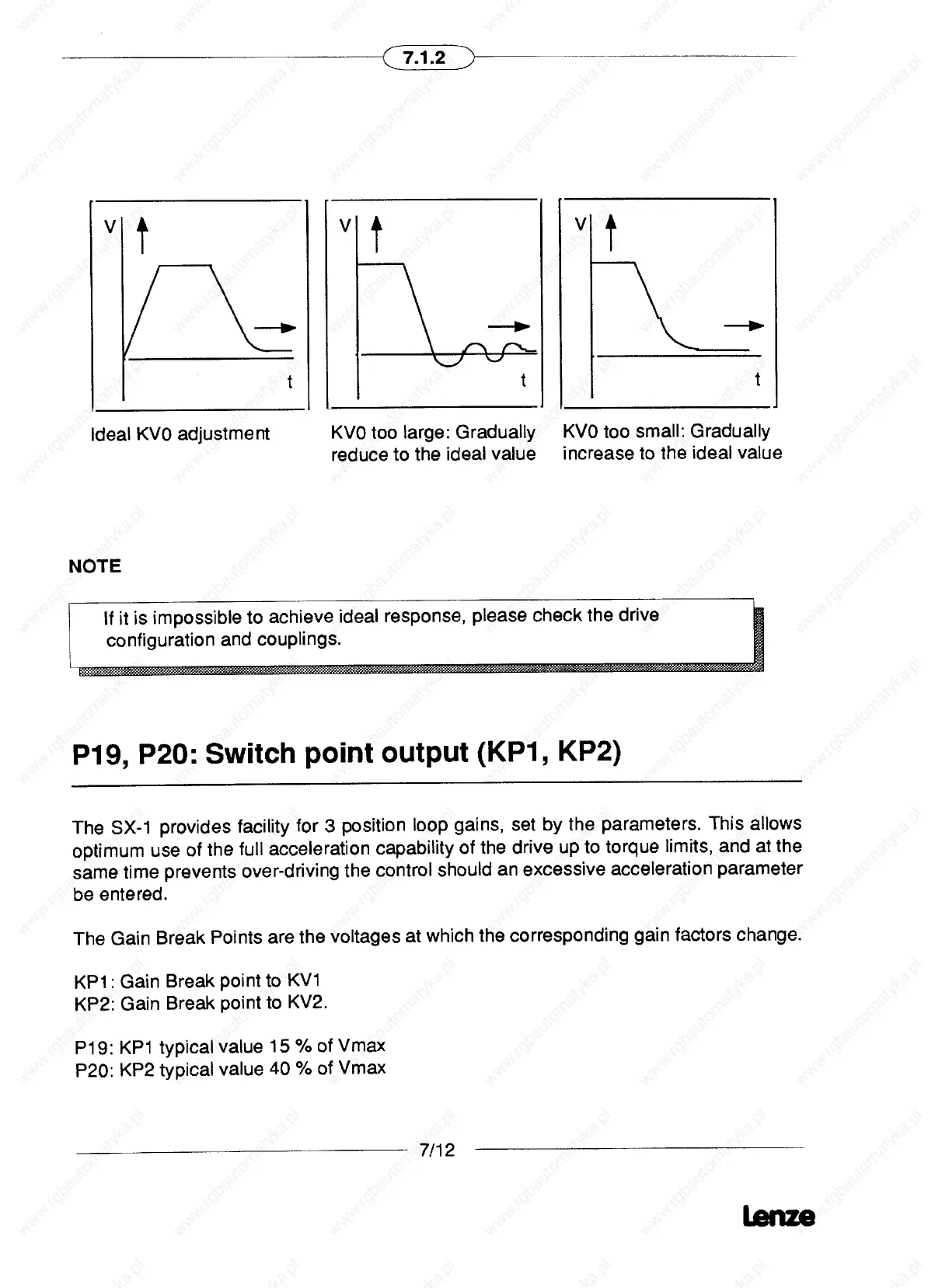

Lenze SX-1 - P19-P20 Switch Point Outputs

7.1.2
Ideal KVO adjustment KVO too large: Gradually
reduce to the ideal value
KVO too small: Gradually
increase to the ideal value
NOTE
lt it is impossible to achieve ideal response, please check the drive
configuration and couplings.
P19, P20: Switch point output (KP1, KP2)
The SX-1 provides tacility for 3 position loop gains, set by the parameters. This allows
optimum use ot the full acceleration capability ot the drive up to torque limits, and at the
same time prevents over-driving the control should an excessive acceleration parameter
be entered.
The Gain Break Points are the voltages at which the corresponding gain tactors change.
KP1: Gain Break point to KVl
KP2: Gain Break point to KV2.
P19: KPl typicalvalue 1S%otVmax
P20: KP2 typical value 40 % of Vmax
7/12
t
Lanze
