14
ENGLISH

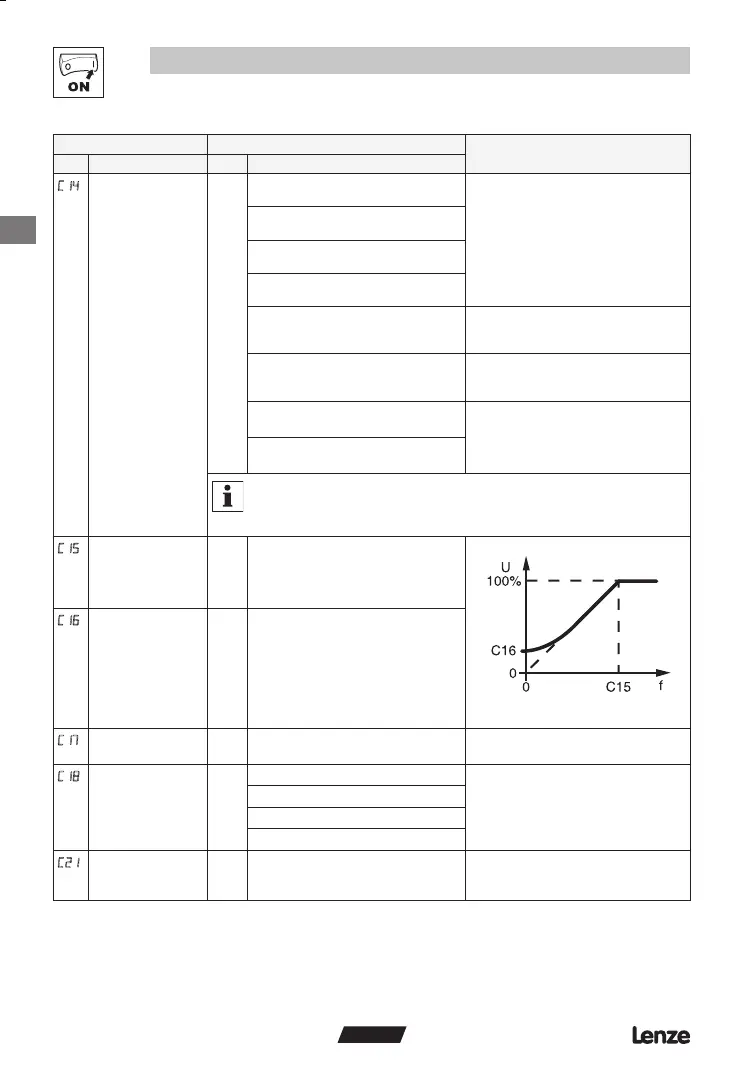

Commissioning
Code Possible Settings
IMPORTANT
No. Name Lenze Selection
Operating Mode 2 0 Linear characteristic with
Auto-Boost
• Linear characteristic: for standard
applications
• Square-law characteristic: for fans and
pumps with square-law load characteristic
• Auto boost: load-dependent output voltage
for low-loss operation
1 Square-law characteristic with
Auto-Boost
2 Linear characteristic with constant
V
min
boost
3 Square-law characteristic with
constant V
min
boost
4 Vector speed control • Vector speed control: for single-motor
applications requiring higher starting
torque and better speed regulation
5 Vector torque control • Vector torque control: for single-motor
applications requiring torque control
independent of speed
6 Enhanced linear characteristic
with Auto-Boost
• Enhanced: for single or multiple
motor applications that require better
performance than settings 0...3, but
cannot operate in vector mode
7 Enhanced linear characteristic with
constant V
min
boost
Note
• Settings 4...7 require Motor Calibration using c48
• Settings 4 and 5 require proper setting of C86...C91 prior to calibration
• Settings 6 and 7 require proper setting of C88...C90 prior to calibration
V/f reference point 50.0 25.0 {Hz} 999
Set the rated motor frequency
(nameplate) for standard applications
smd006
V
min
boost
(optimization
of torque behavior)
0.0 {%} 40.0
C16 not active in Vector mode (see C14)
Set after commissioning: The unloaded
motor should run at slip frequency (approx.
5 Hz), increase C16 until motor current
(C54) = 0.8 x rated motor current
C 7
Frequency threshold
(Q
min
)
0.0 0.0 {Hz} 240 See c17 and c18, selection 7
C
Chopper frequency 2 0 4 kHz • As chopper frequency is increased, motor
noise is decreased
• Observe derating in Section 2.2
• Automatic derating to 4 kHz at 1.2 x Ir
1 6 kHz
2 8 kHz
3 10 kHz
1
Slip compensation 0.0 0.0 {%} 40.0
C21 not active in Vector mode (see C14)
Change C21 until the motor speed no longer
changes between no load and maximum
load
