18
ENGLISH

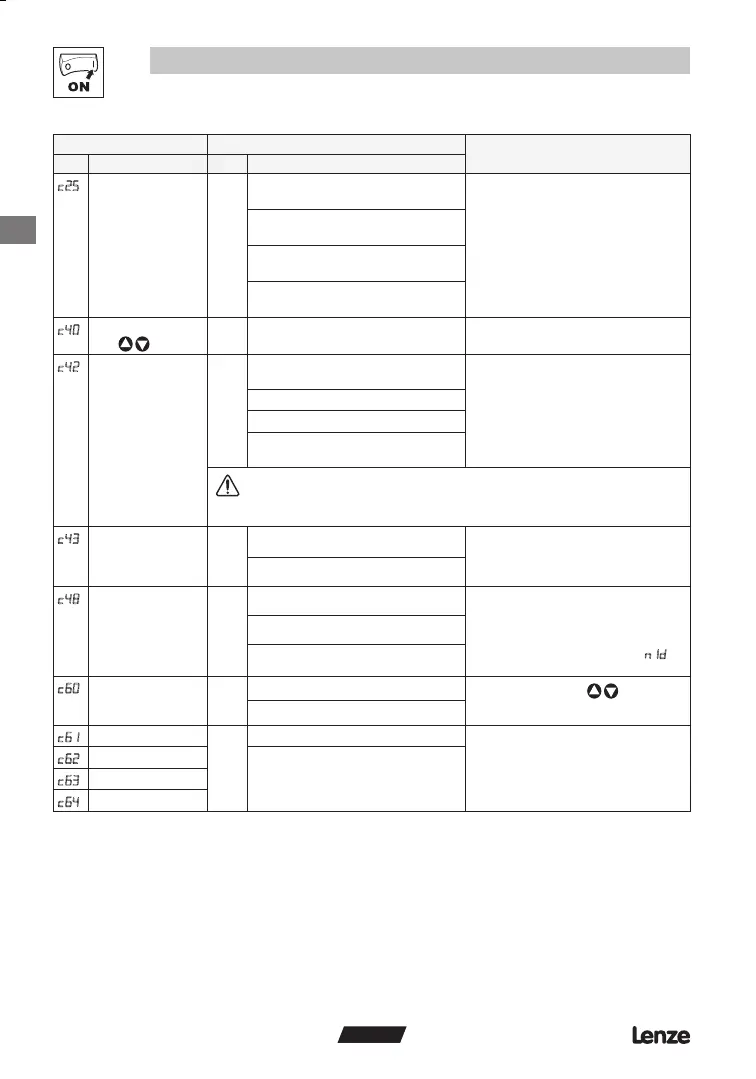

Commissioning
Code Possible Settings
IMPORTANT
No. Name Lenze Selection
Serial baud rate 0 0 LECOM: 9600 bps
Modbus: 9600,8,N,2
• See C01
• LECOM if C01 = 0...3
• Modbus if C01 = 8...11
1 LECOM: 4800 bps
Modbus: 9600,8,N,1
2 LECOM: 2400 bps
Modbus: 9600,8,E,1
3 LECOM: 1200 bps
Modbus: 9600,8,O,1
Frequency setpoint via
keys or Modbus
0.0 0.0 {Hz} 240 Only active if C01 is set properly
(C01 = 1, 5, 7, 9, 11)
Start condition
(with mains on)
1 0 Start after LOW-HIGH
change at terminal 28
See also c43 and c70
1 Auto start if terminal 28 = HIGH
2 Flying restart (auto start disabled)
3 Auto start if terminal 28 = HIGH,
with flying restart
WARNING!
Automatic starting/restarting may cause damage to equipment and/or injury to personnel!
Automatic starting/restarting should only be used on equipment that is inaccessible to
personnel.
Flying restart selection 0 0 Search range: C11...0 Hz If c42 = 2 or 3, the controller will start the
motor speed search at C11, or at the last
output frequency before the fault, depending
on the setting of c43
1 Search range: last frequency...0 Hz
Motor auto-calibration 0 0 Calibration not done • If C14 = 4...7, motor calibration must
be performed, but C86...C91 must be
programmed first (see C14)
• If motor calibration is attempted before
programming C86...C91, triggers
fault
1 Calibration enabled
2 Calibration complete
6
Mode selection for c61 0 0 Monitoring only
c60 = 1 allows the keys
to adjust
speed setpoint (c40) while monitoring c61
1 Monitoring and editing
1
Present status/error status/error message • Display
• Refer to Section 5 for explanation of status
and error messages
Last error error message
Last error but one
Last error but two
