Bar code tape
Leuze electronic BPS 34 37
TNT 35/7-24V
Important note for printing:
1. Select only those pages that are required.
2. Change the printer settings so that the code is not distorted.
Suggestion for printer settings, see Figure 6.9.
3. Verify the printing result by measuring the distance between two codes (see
Figure 6.10).
4. Cut the code strips and concatenate them. It is important that the code content
always increases or decreases in blocks of 4 cm.

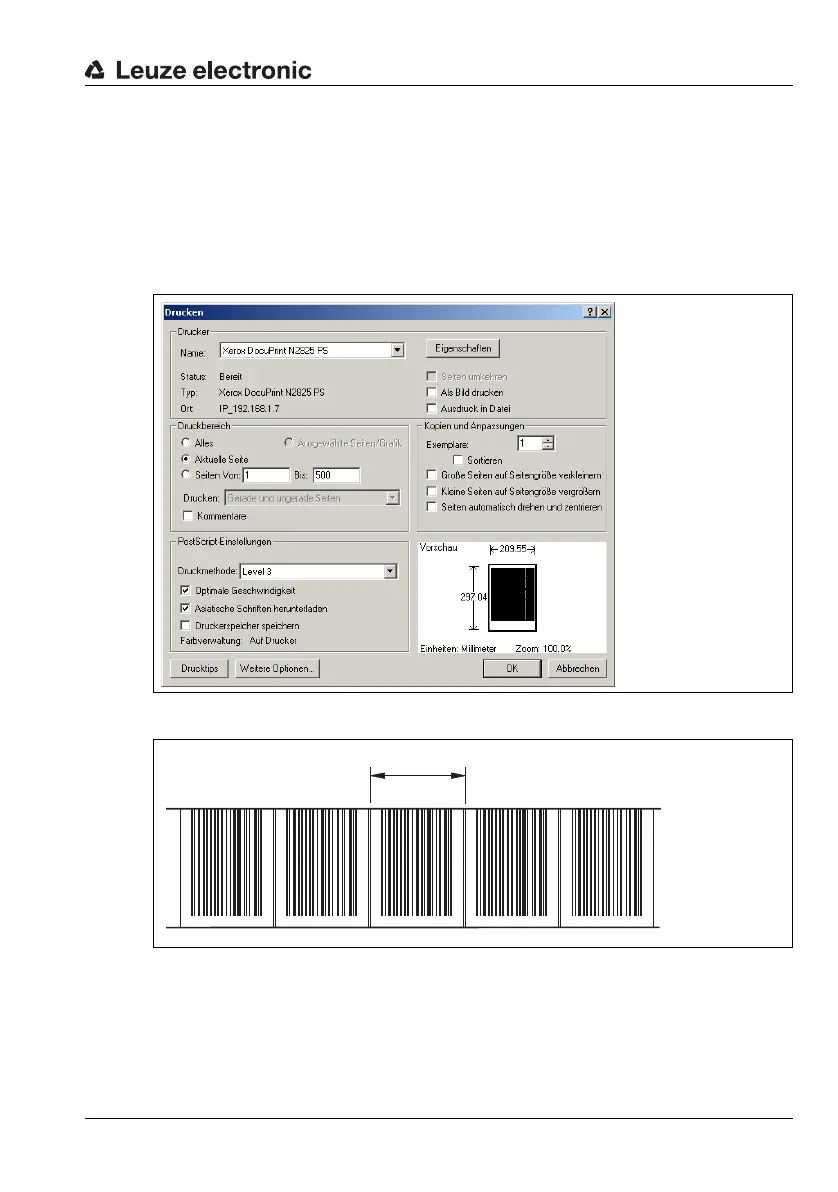

Figure 6.9:Printer settings for BCB repair kit
Figure 6.10:Checking the print results of the BCB repair kit
000020 000024 000028 000032 000036
40 mm
