Device parameters and interfaces
Leuze electronic BPS 34 69
TNT 35/7-24V
The position value is output with "normal" counting direction. With the "inverted" counting
direction, 10,000,000mm minus the position value is output. This behavior can be influenced
using the "Static preset"/"Dynamic preset" modules (module 3 and module 4, respectively)
and the "Offset" module (module 5).

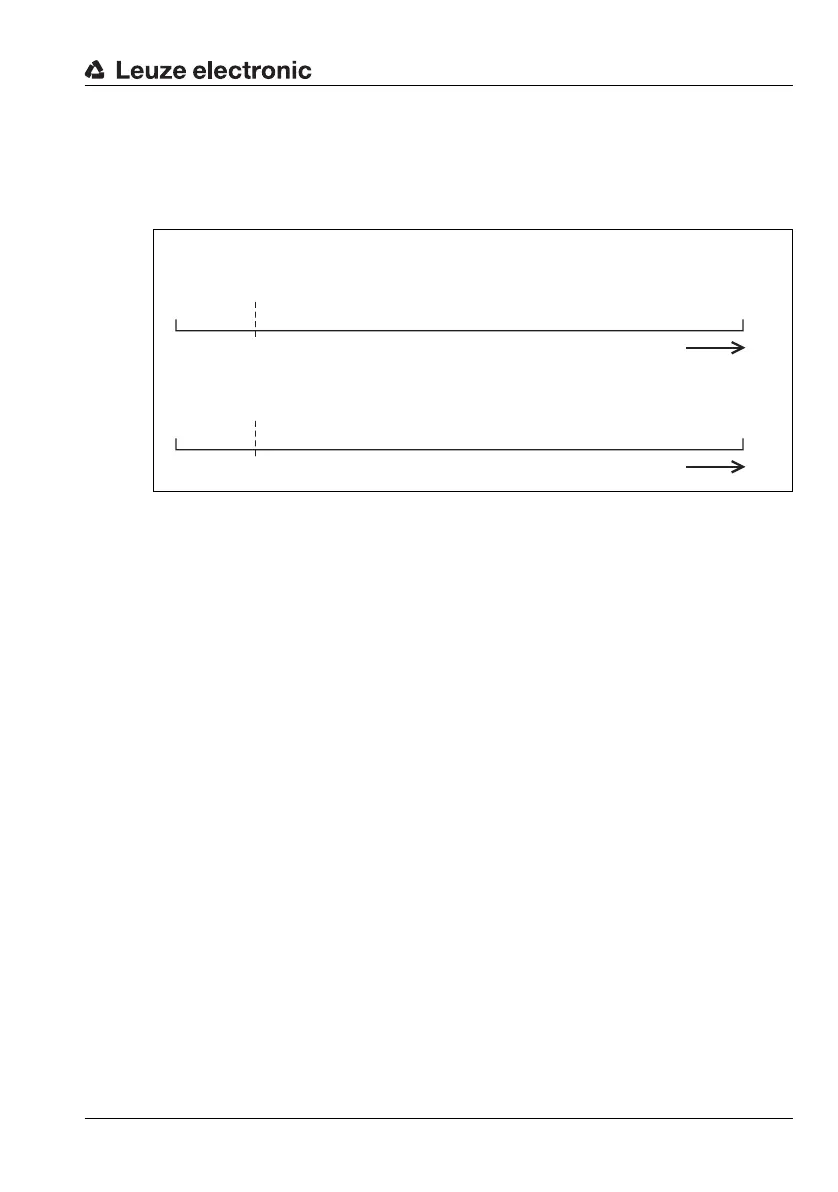

Figure 8.12:Counting direction for position calculation
Counting direction "normal"
Counting direction "inverted"
Position value = tape value
Position value
Counting direction
Counting direction
1,400,000 mm
8,600,000mm (=10,000,000mm - tape value)
0 mm 10,000,000 mm
0 mm 10,000,000 mm
