10.2.2 Dimensions of mounting brackets
A = Protective field height B = Total height without plug

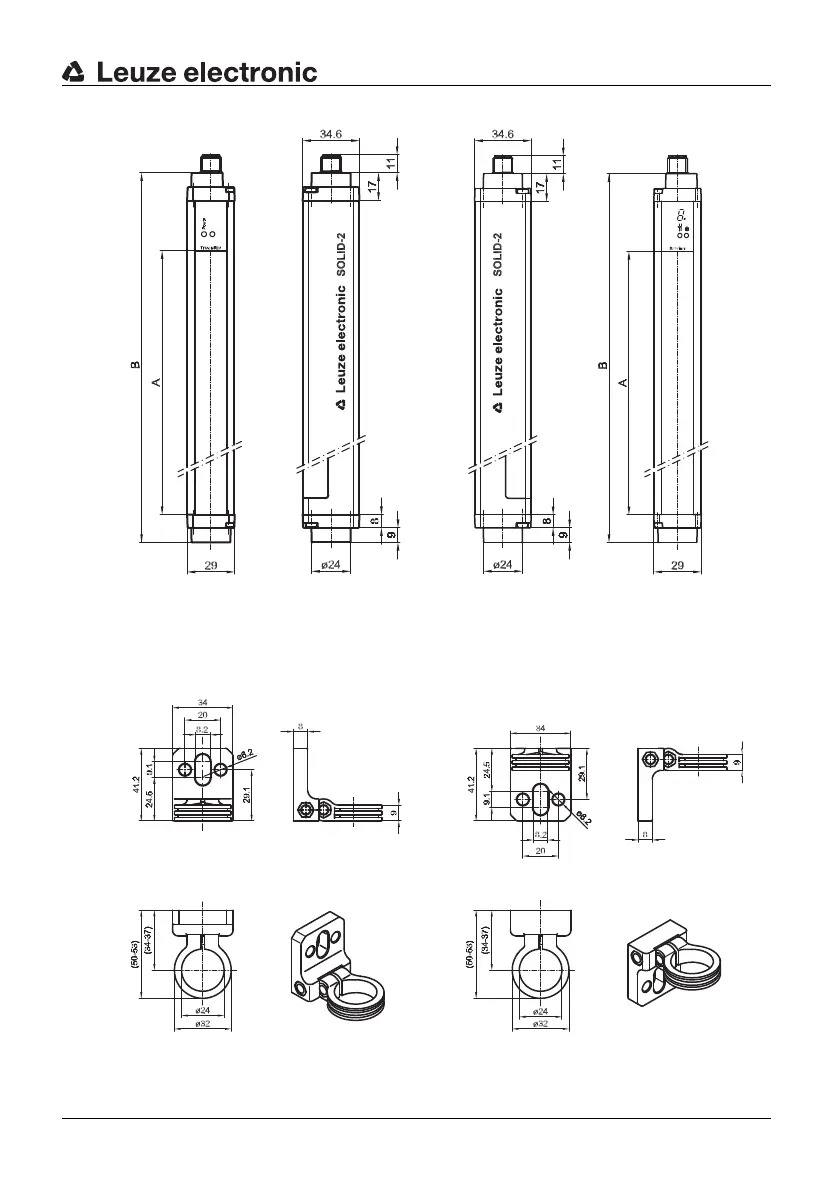

Fig. 10.2-1: Dimensions of Safety Light Curtains
Fig. 10.2-2: 360° mounting bracket
