LevelOne FCS-5061 - Connectors

1.4 Connectors
The Camera is equipped with an all-in-one cable for quick wiring. Definition
for each connector are as follows.

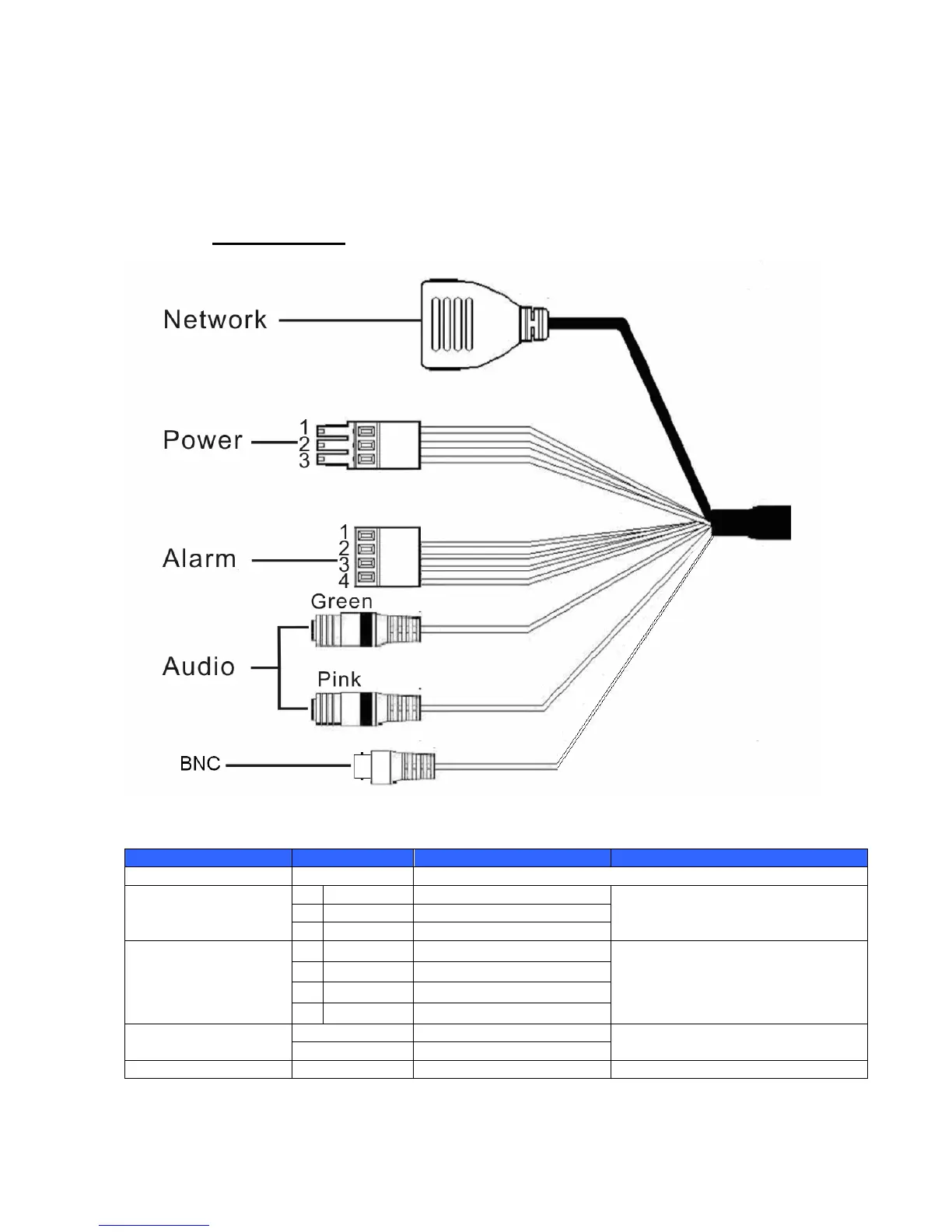

All-in-one Cable
Cable
Pin No.
Definition
Remarks
Network (with POE)
-
RJ-45 connector with LED
Power
1
-
AC 24V-1
Power connection
2
GND
GND
3
+
AC 24V-2
Alarm
1
ALM_DI－
Input－
Alarm connection
2
ALM_DI＋
Input＋
3
ALM_DO－
Output－
4
ALM_DO＋
Output＋
Audio I/O
Pink
Line In/ Mic In
Two-way audio transmission
Green
Line Out
BNC
-
Analog video output
