Levitronix PuraLev 600SU - Power Supply and Consumption; Temperature Monitoring

User Manual for PuraLev
®
600SU
www.levitronix.com
PL-4032-00, Rev06, DCO# 20-144
13
3.2 Power Supply and Consumption
Figure 13 shows the typical power consumption of the system. If other AC/DC power supplies than the
standard specified ones are used, it is recommended to evaluate them under demanding operating situations
like fast braking from maximum speed and during power on and take-off of the impeller.

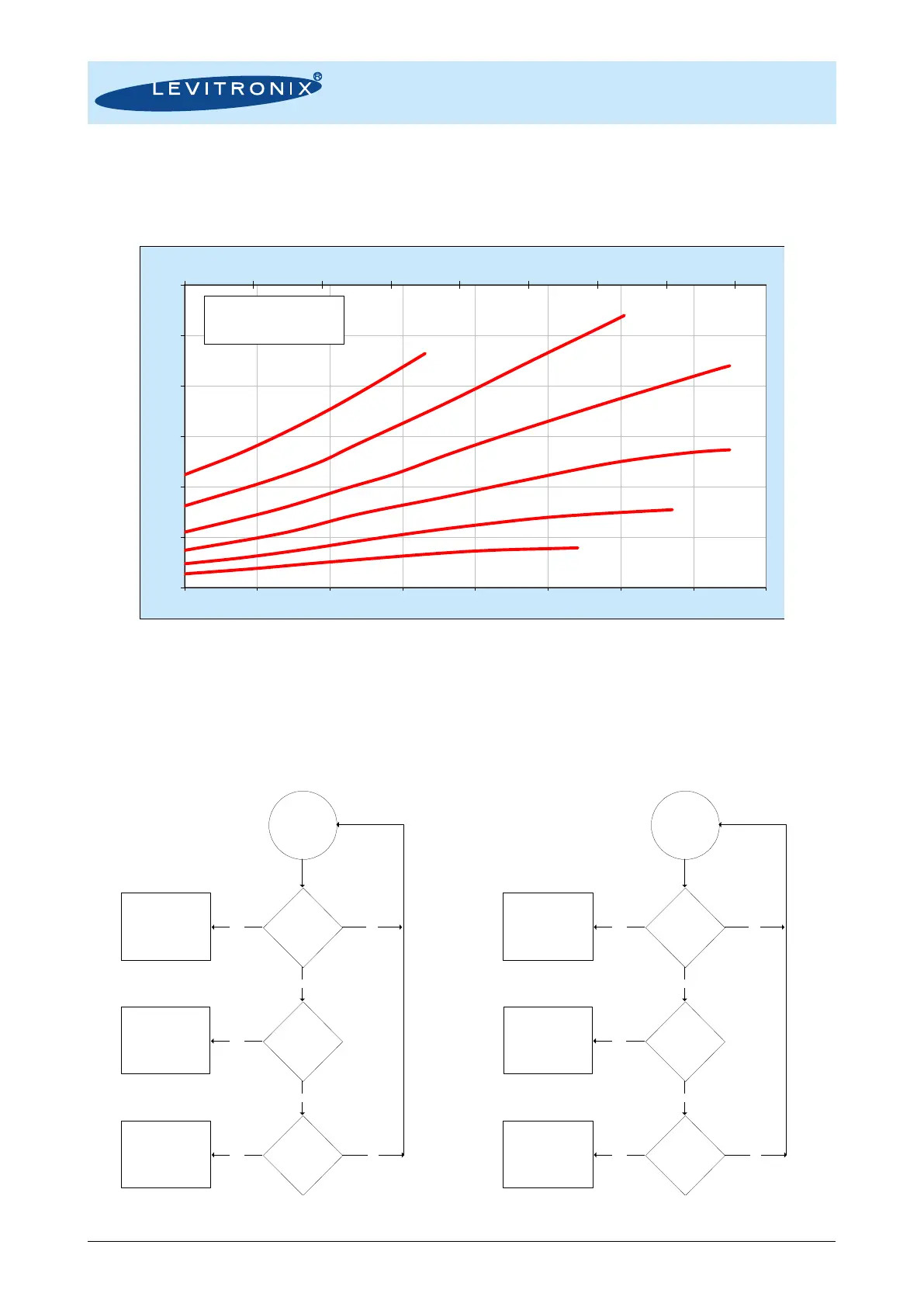

Figure 13: Electrical power consumption
(Typical data for controller LPC-600.x with pump head DCP-600.2 and motor LPM-600.x)
3.3 Temperature Monitoring
To avoid overheating of the system, the controller and motor temperatures are monitored. If the controller
temperature exceeds 70°C (158°F) or the motor temperature 90°C (194°F) for a duration of more than 10
minutes, the system goes into an error state and the pump stops. At 80°C (176 F) controller temperature or
100°C (212°F) motor temperature, the system stops immediately.
Start
Temperature
Monitoring
WARNING
YES
Temperature
> 70°C ?
Temperature
> 80°C ?
YES
YES
ERROR
Temperature
higher than 70°C
for more than 10
minutes?
NO
ERROR
YES
NO
NO
Start
Temperature
Monitoring
WARNING
YES
Temperature
> 90°C ?
Temperature
> 100°C ?
YES
YES
ERROR
Temperature
higher than 90°C
for more than 10
minutes?
NO
ERROR
YES
NO
NO
Figure 14: Controller temp. monitoring
Figure 15: Motor temperature monitoring
0.0 2.5 5.0 7.5 10.0 12.5 15.0 17.5 20.0
0
100
200
300
400
500
600
0 10 20 30 40 50 60 70 80
[gallons/min]
[Watts]
[liters/min]
Specific gravity = 1 g/cm
3
Viscosity = ~ 0.7 cP
Liquid Temp.: 40 C
8000 rpm
7000 rpm
6000 rpm
5000 rpm
4000 rpm
9000 rpm
