2.6 Maximum Static Pressure for Pump Heads

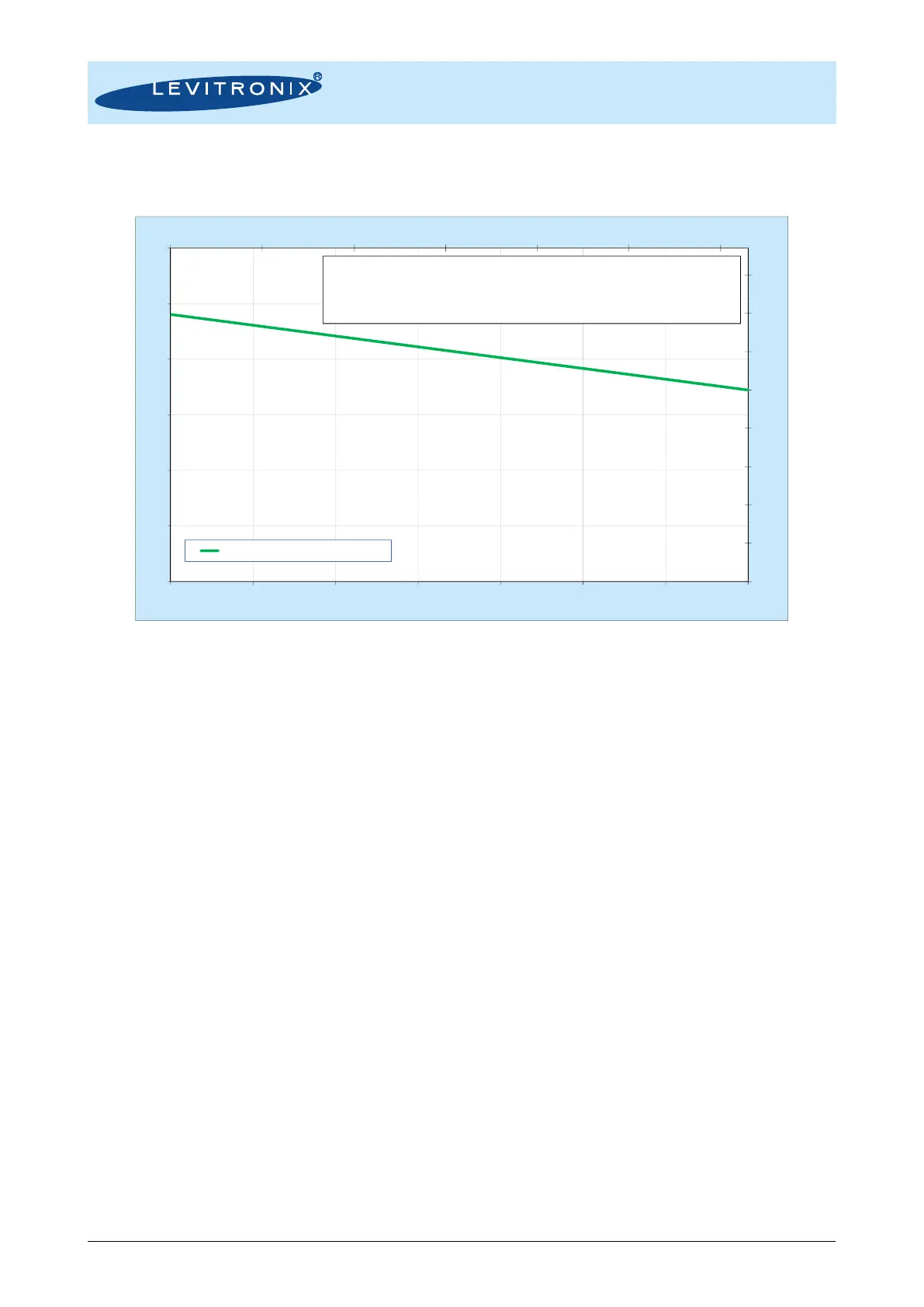

Figure 8: Specification for maximum static pressure of pump head DCP-600.2
(Pressure limits only valid for pump head mounted on motor)
0
10
20
30
40
50
60
70
80
77 87 97 107 117 127 137
0
1
2
3
4
5
6
25 30 35 40 45 50 55 60
[psi]
[°F]
[bar]
Liquid Temperature in [°C]
Max. Static Pressure for DCP-600.2
Burst pressure at ambient temperature = 25 C is > 9 bar after gamma radiation of ~40 kGy
and 2 times temperature cycling between -25 C and 75 C.
Note: Pressure limit only valid for pumphead mounted on motor. Values only valid after
Gamma radiation doses of < 40 kGy.
