5 Operation
5.1 System Operation with LPC-600.1-01 (Stand-Alone Version)
5.1.1 State Diagram of LPC-600.1-01
The controller LPC-600.1-01 allows stand-alone operation with manual speed setting ( 
) as well as extended operation with analog speed setting (Analog Control Mode). Figure 34 shows
the state diagram which can be controlled with the manual buttons and the signals on the 
 connector. The operation mode can be chosen by pressing the  and  buttons
simultaneously during 5 seconds. For the standard firmware default setting ex factory is  
.
Button Control Mode Analog Control Mode
System Error
Power On
OFF
ButtonControl
ON
(Speed Mode)
ButtonControl
Ref.-Speed set
to stored value*
OFF
AnalogControl
ON
(Speed Mode)
AnalogControl
Ref.-Speed set by
analog input
R
Reset Button
Ref. Speed
UP
Ref. Speed
DOWN
ButtonControl saved
in EEPROM
AnalogControl saved
in EEPROM
!
Error
!
Error
Enable
input = 0V
Enable
input = 0V
Enable
input = 24V
Press up
for 2 sec
Press down
for 2 sec
Press up
for 1 sec
Press down
for 1 sec
If Speed
@ 0 RPM
Press both
for 5 sec
Press both
for 5 sec
Enable
input = 24V
!
Error
!
Error

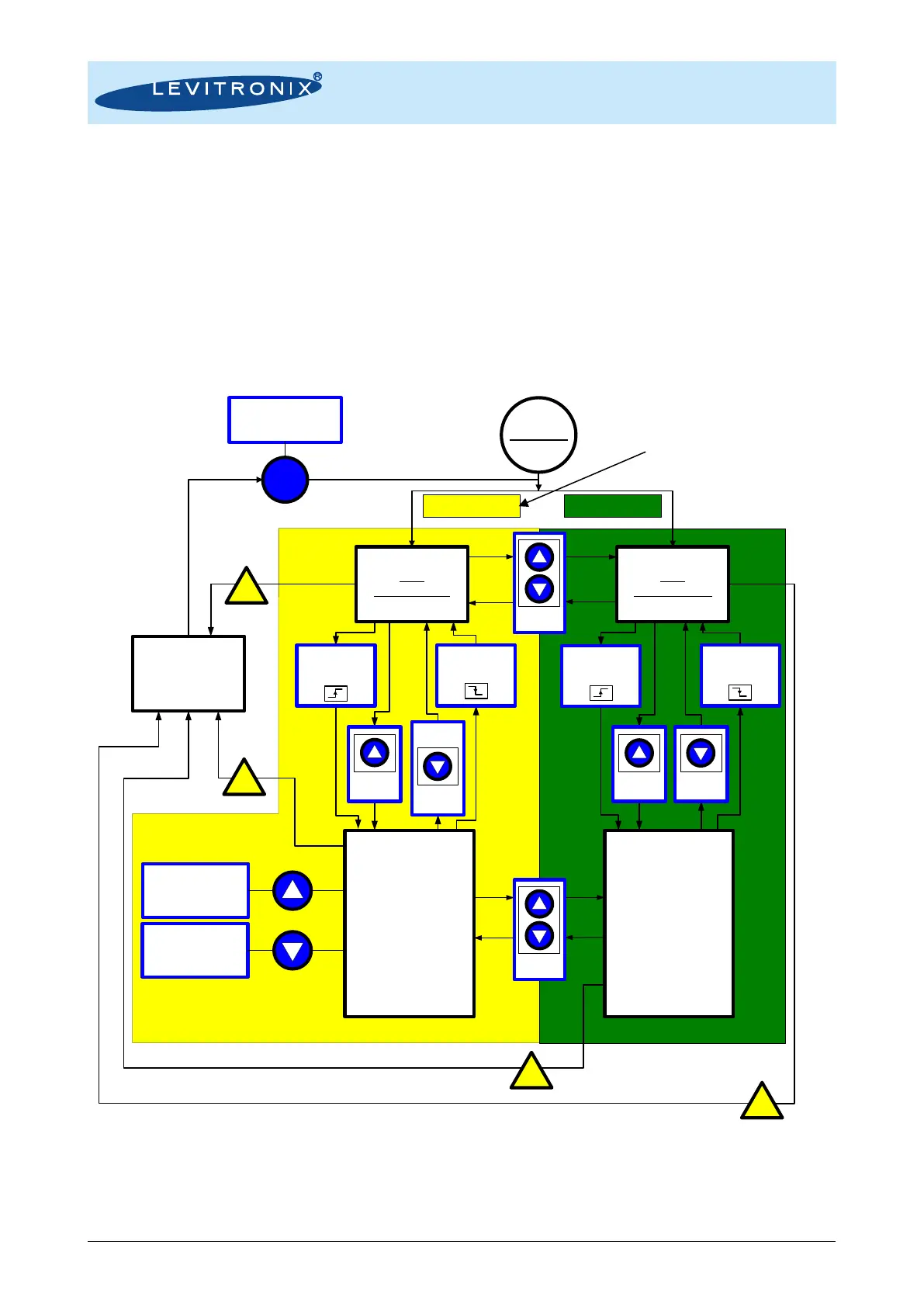

Figure 34: State diagram for operation with LPC-600.1-01 controller
Note 1: Description is for standard firmware.
Note 2: For other configurations refer to alternate firmware documentation
Factory default setting
