User Manual for PuraLev
®
600SU
www.levitronix.com
PL-4032-00, Rev06, DCO# 20-144
4.4 Mechanical Installation of the Controller
Hazardous voltage may be present.
In order to avoiding fluid spills shorting mains or other voltages within
the controller, place the controller in a spill protected environment (for
example protected electronic cabinets).
If explosive flammable gases are present, place the controller in an
explosion-proof cabinet.
Make sure the controller is mounted in a position that allows free air
other objects above or below the controller casing is recommended.
• Use the Din-Rail bracket to mount the controller.
• If no forced air-cooling is used, mount the controller in upright position.
• The Din-Rail brackets can also be mounted on the controller side according to Figure 11
Use only 3,5 x 6,5 mm self-tapping screw for the fixation of the Din-Rail
brackets. The controller may be damaged if other type or too long
screw types are used!
4.5 Mechanical Installation of Adaptor/Extension Cables
For connecting the motor to the controller the adaptor cables MCAP-600.x (for power cable) and MCAS-
600.x (for sensor cable) shall be used (see Table 3 for adaptor cables). For the cables which use an M23
threaded metallic Hummel connector type check the correctness of the connection according to the following
pictures:

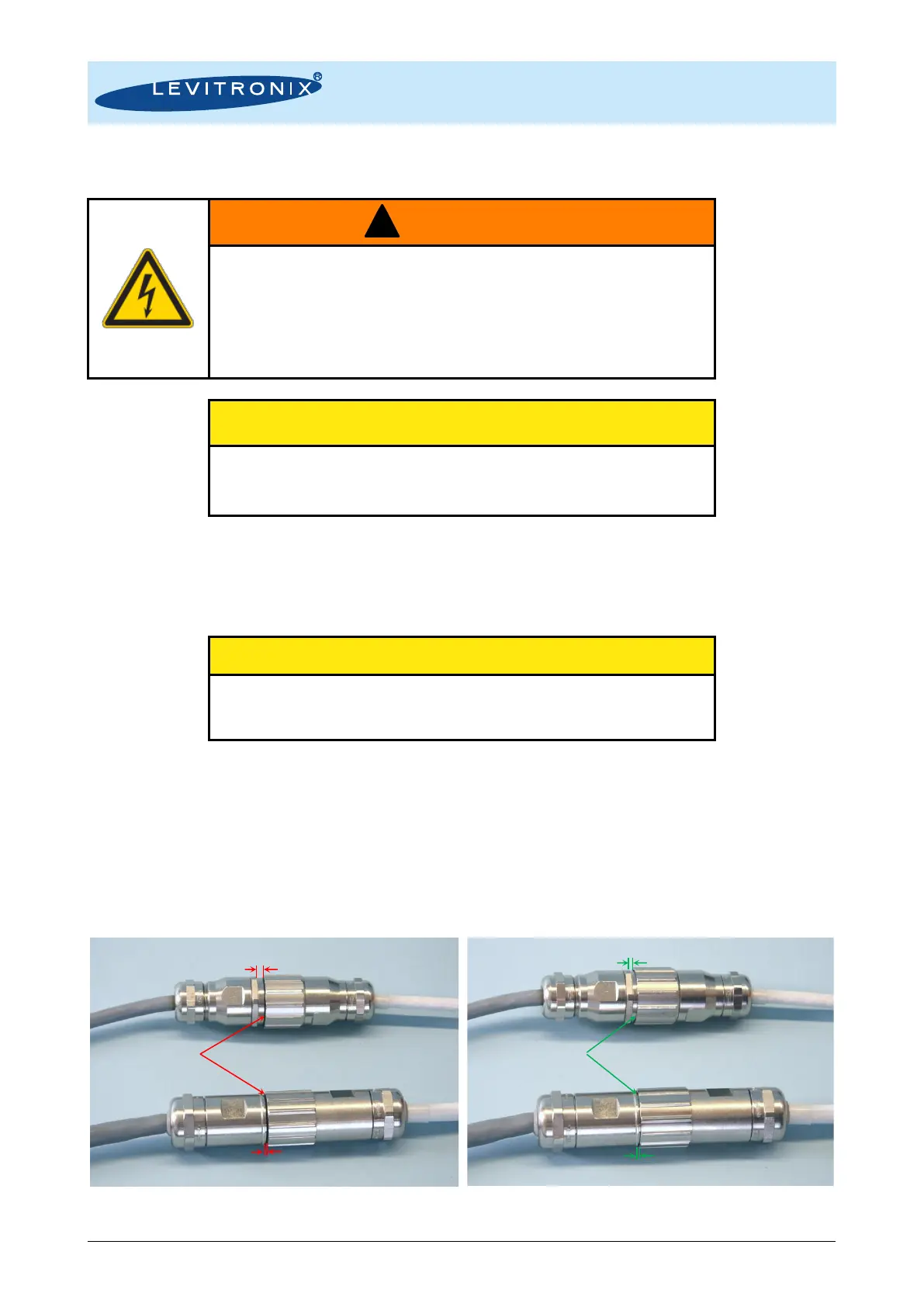

Figure 33: Wrong and correct Hummel connector type assembly
