2.7 Basic Dimensions of Main Components

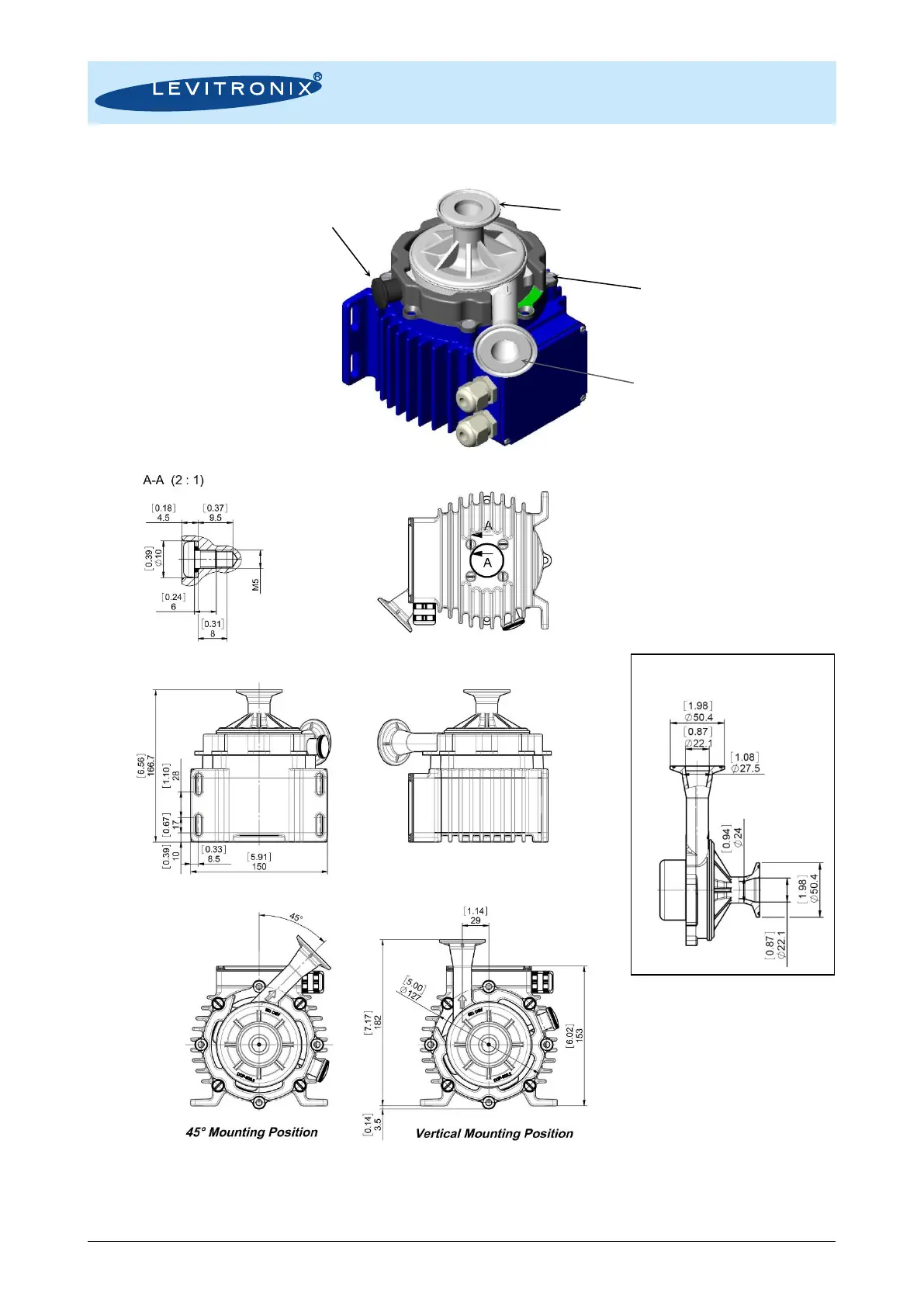

Figure 9: Basic dimensions (in mm and [inch]) of motor LPM-600.x with pump head DCP-600.2
(for other configurations refer to according drawings)
Locking Pin
Inlet

ASME BPE-2009
Outlet

ASME BPE-2009
4pcs M6x18 Screws
Inlet/Outlet Dimensions
of Pump Head DCP-600.2:
