4.2 Mechanical Installation of the Pump/Motor

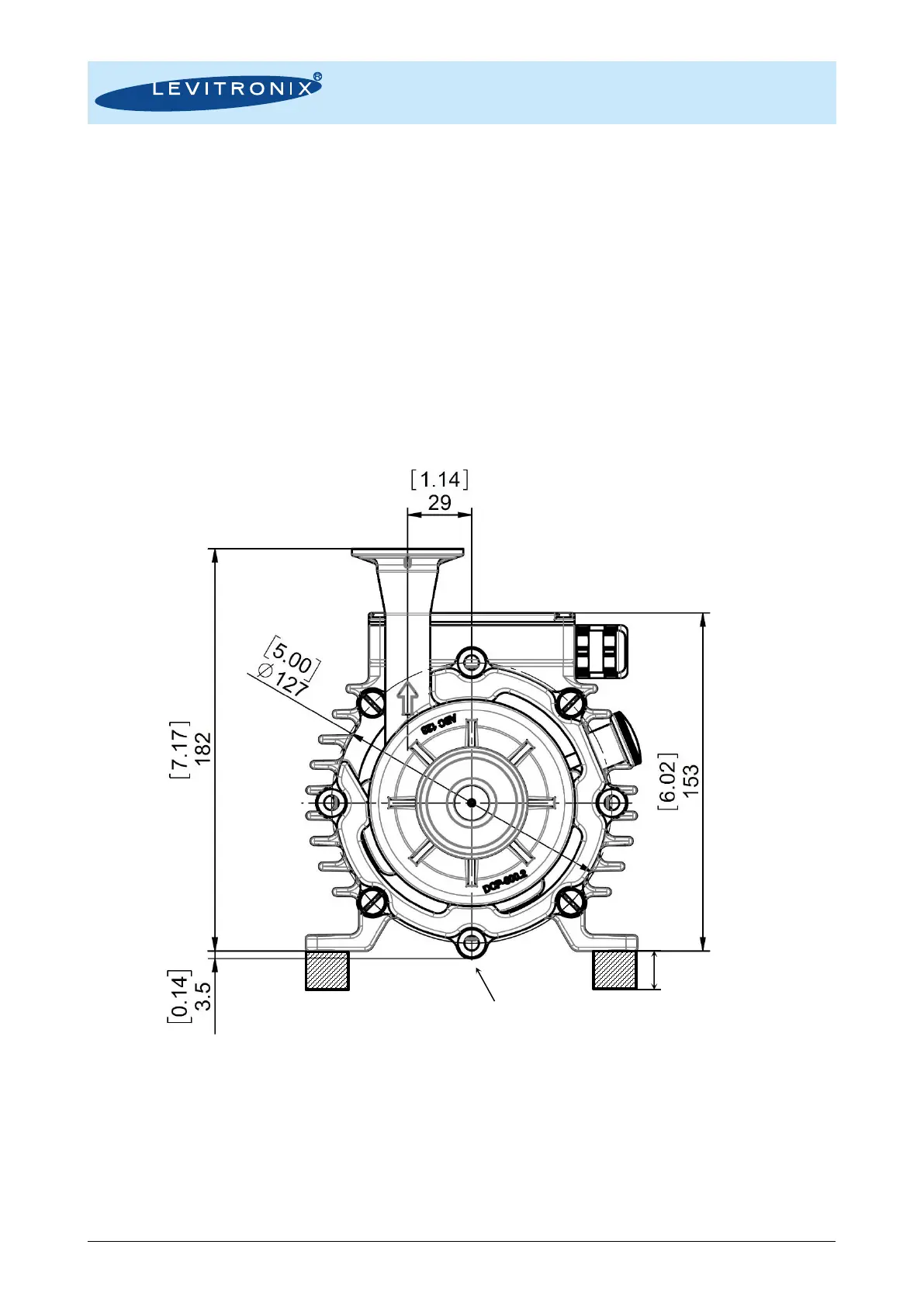

• The motor can be fixed with four screws on the motor feet (see Figure 9).
• As an alternative the motor can be mounted with four screws on the (see Figure 9) backside
• The motor can be mounted in either the horizontal or vertical position. When mounting in horizontal
position it shall be mounted elevated from the bottom for at least 7 mm in order to assure sufficient
space for the pump head socket (see Figure 30).
• Minimum cable bending radius according Table 6 to shall be followed for the installation of the
motor and extension/adaptor cables.
• Each motor is identified with a unique serial number. This serial number consists of a series of
6 digits were the 5
th
and the 6
th
digit representing the manufacturing year.
Figure 30: Elevated mounting of motor
